Starter Relay Check

For starter relay testing see Fig 1 .

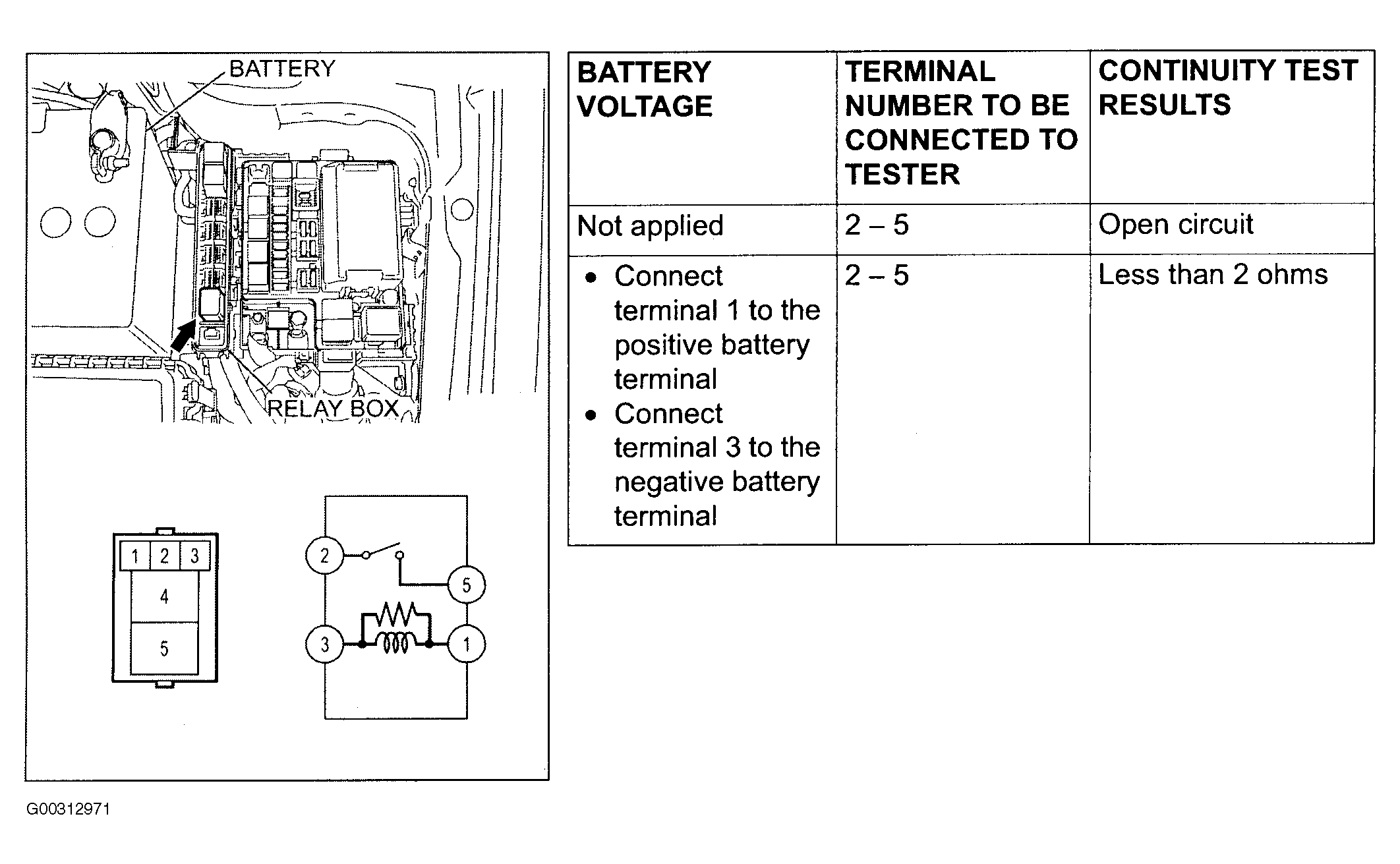

Fig 1: Testing Starter Relay
G00312971Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
