Removal And Installation: Notes

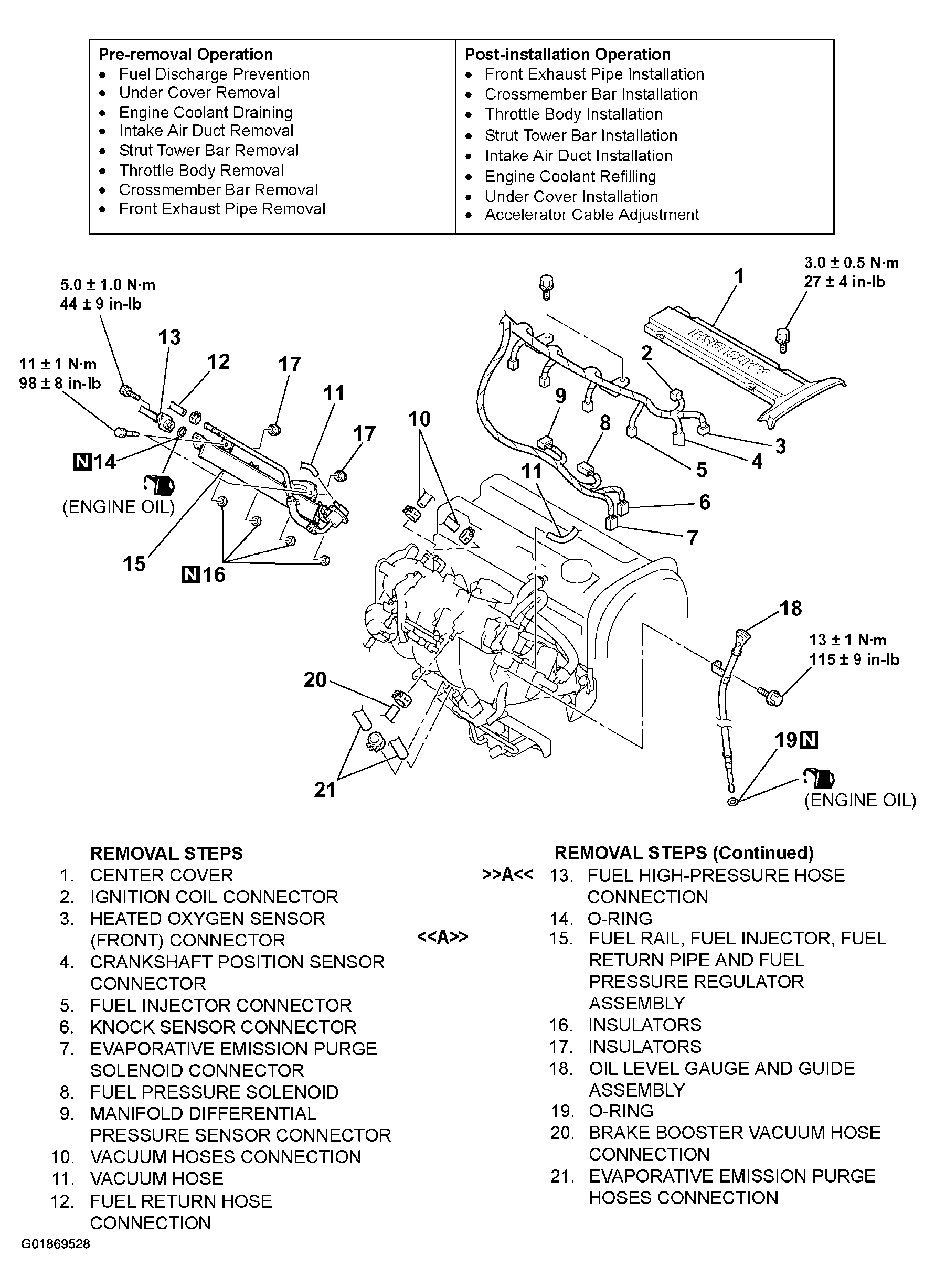

Fig 1: Intake Manifold Removing Procedure And Torque Specifications (1 Of 2)
G01869528Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

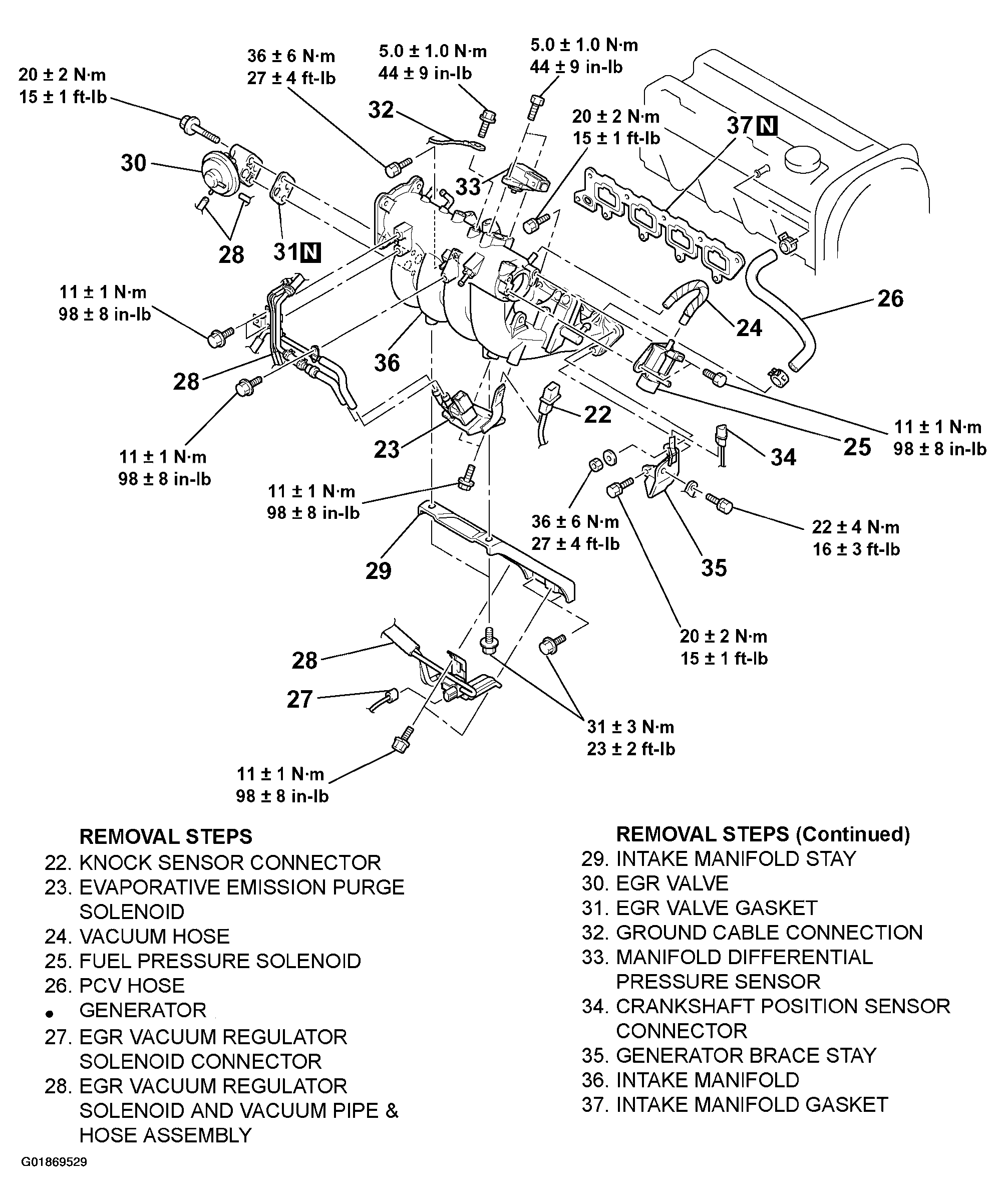

Fig 2: Intake Manifold Removing Procedure And Torque Specifications (2 Of 2)
G01869529Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
