Coil Resistance Check

Measure resistance between solenoid valve terminals.

Standard value: 29 - 35 Ω [at 20°C (68°F)]

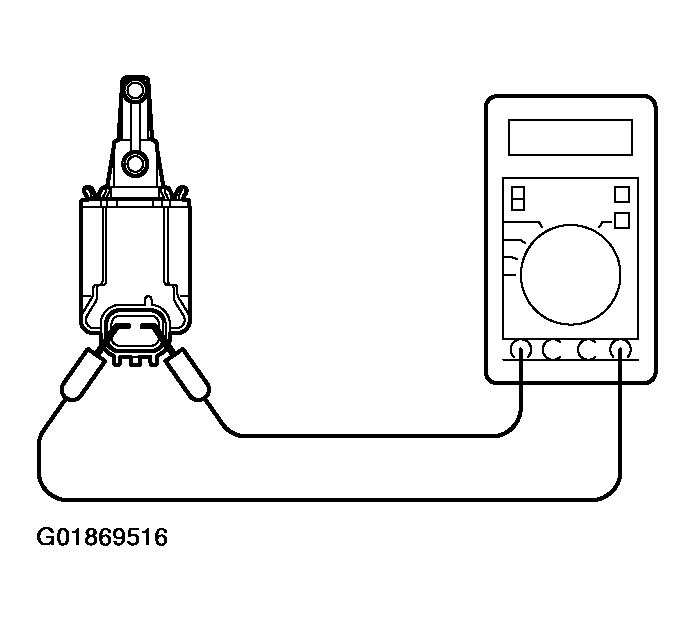

Fig 1: Measuring Resistance Between Solenoid Valve Terminals
G01869516Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
