Removal And Installation: Notes

CAUTION:

If the vehicle is equipped with the Brembo™ disc brake, during maintenance, take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched.
*: indicates parts which should be temporarily tightened, and then fully tightened with the engine weight applied on the vehicle body.

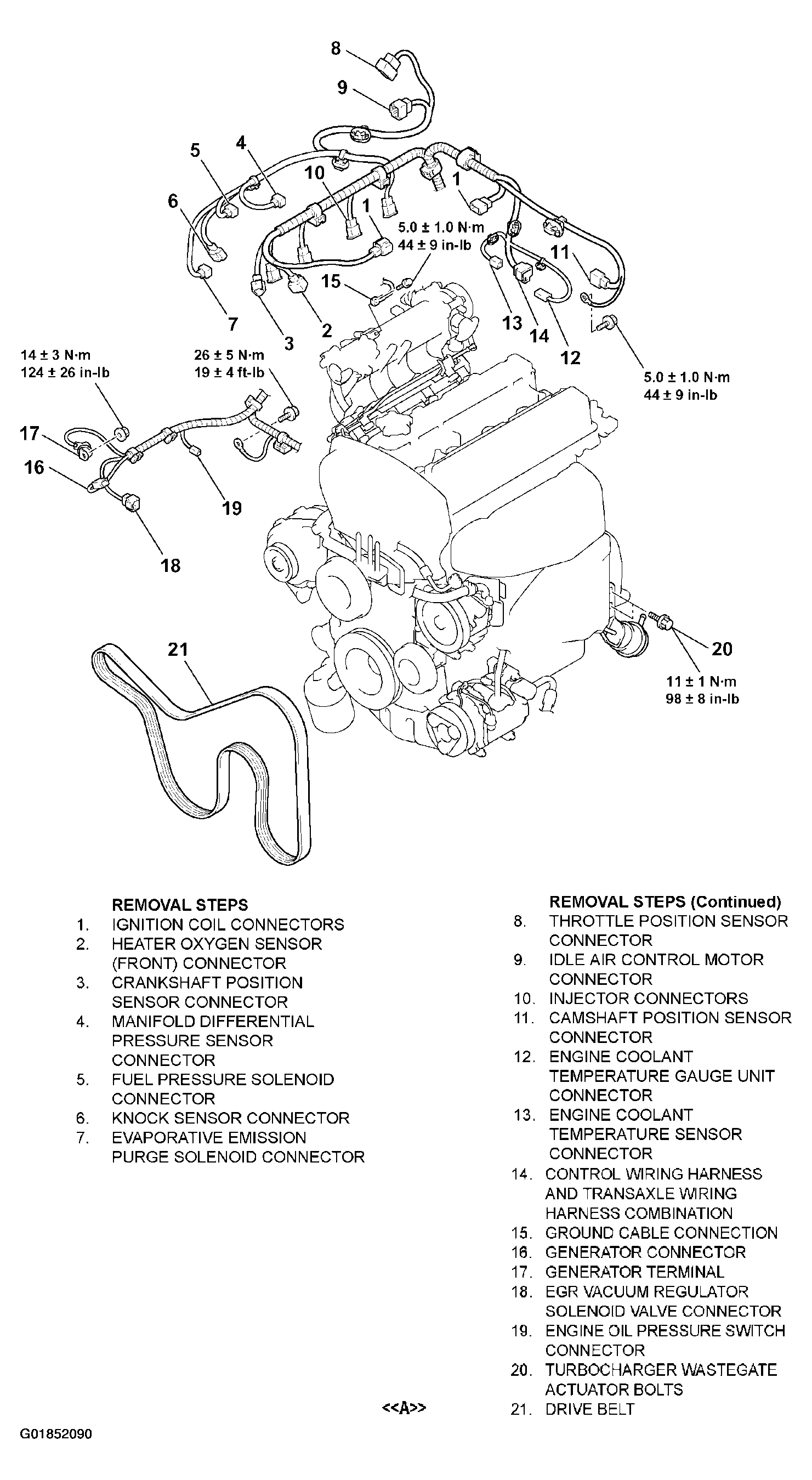

Fig 1: Exploded View Of Engine Assembly With Torque Specifications (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

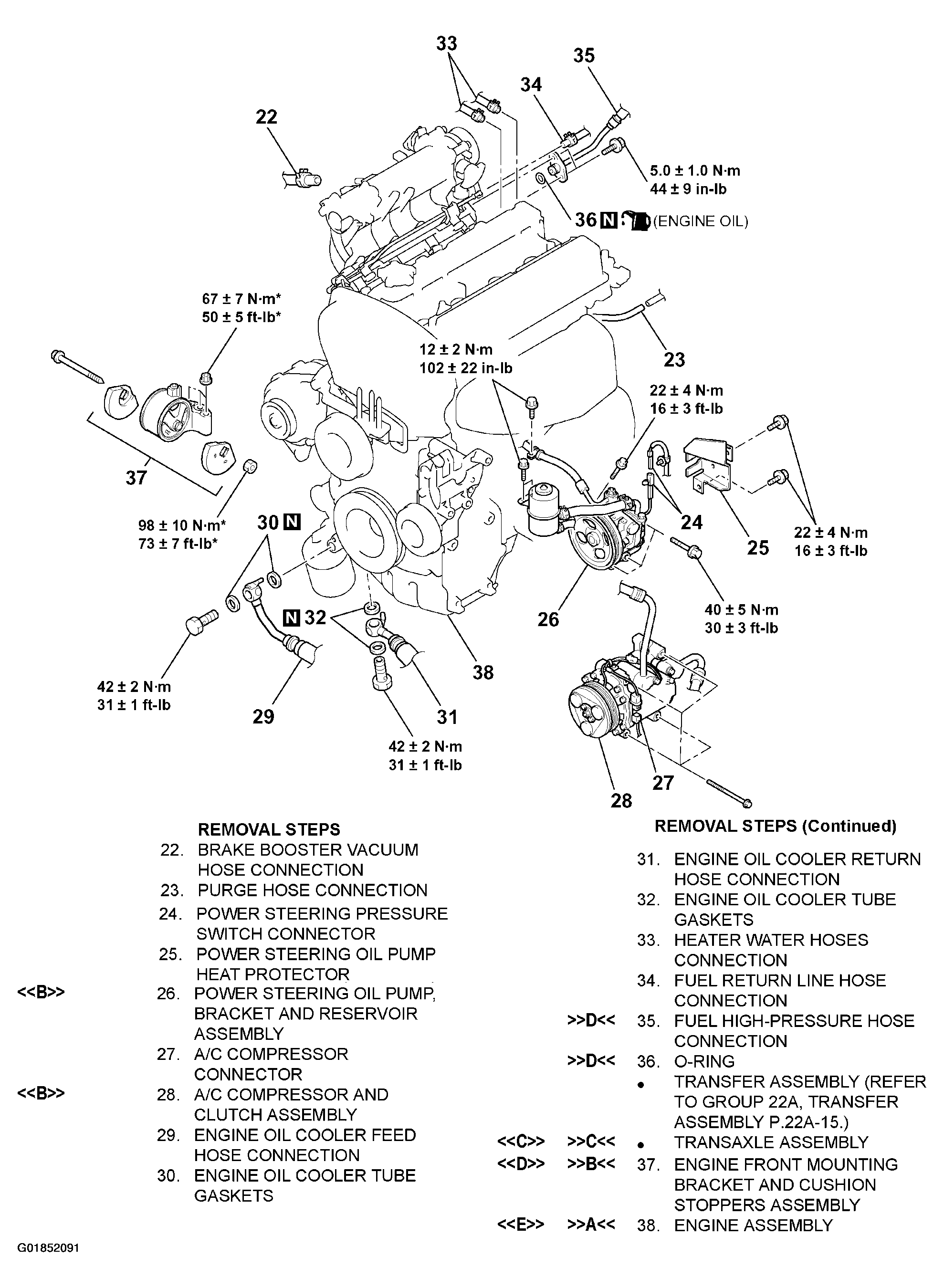

Fig 2: Exploded View Of Engine Assembly With Torque Specifications (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Exploded View Of Engine Assembly With Torque Specifications (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
