Removal And Installation: Notes

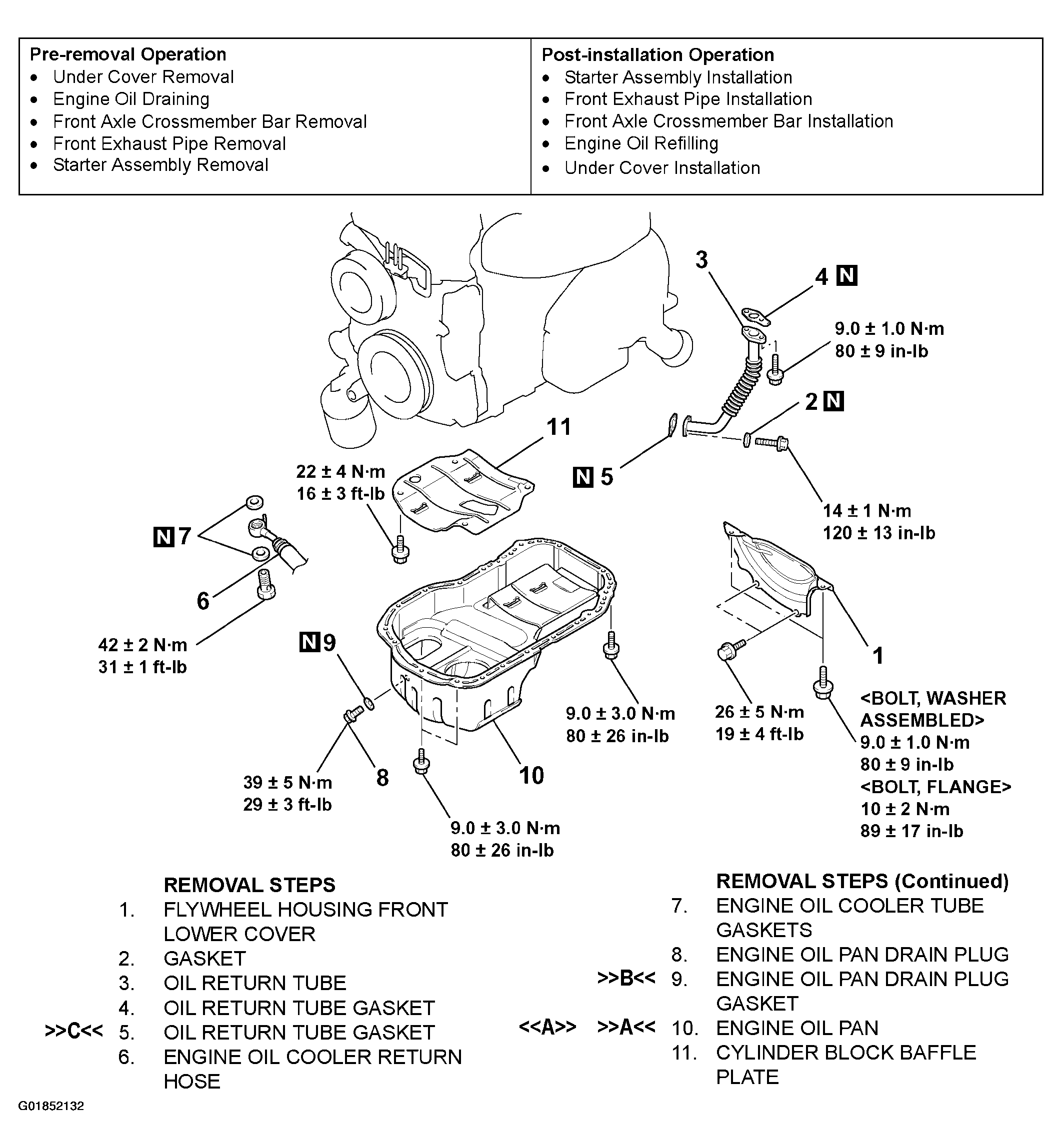

Fig 1: Exploded View Of Oil Pan Components With Torque Specifications
G01852132Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
