Removal And Installation: Notes

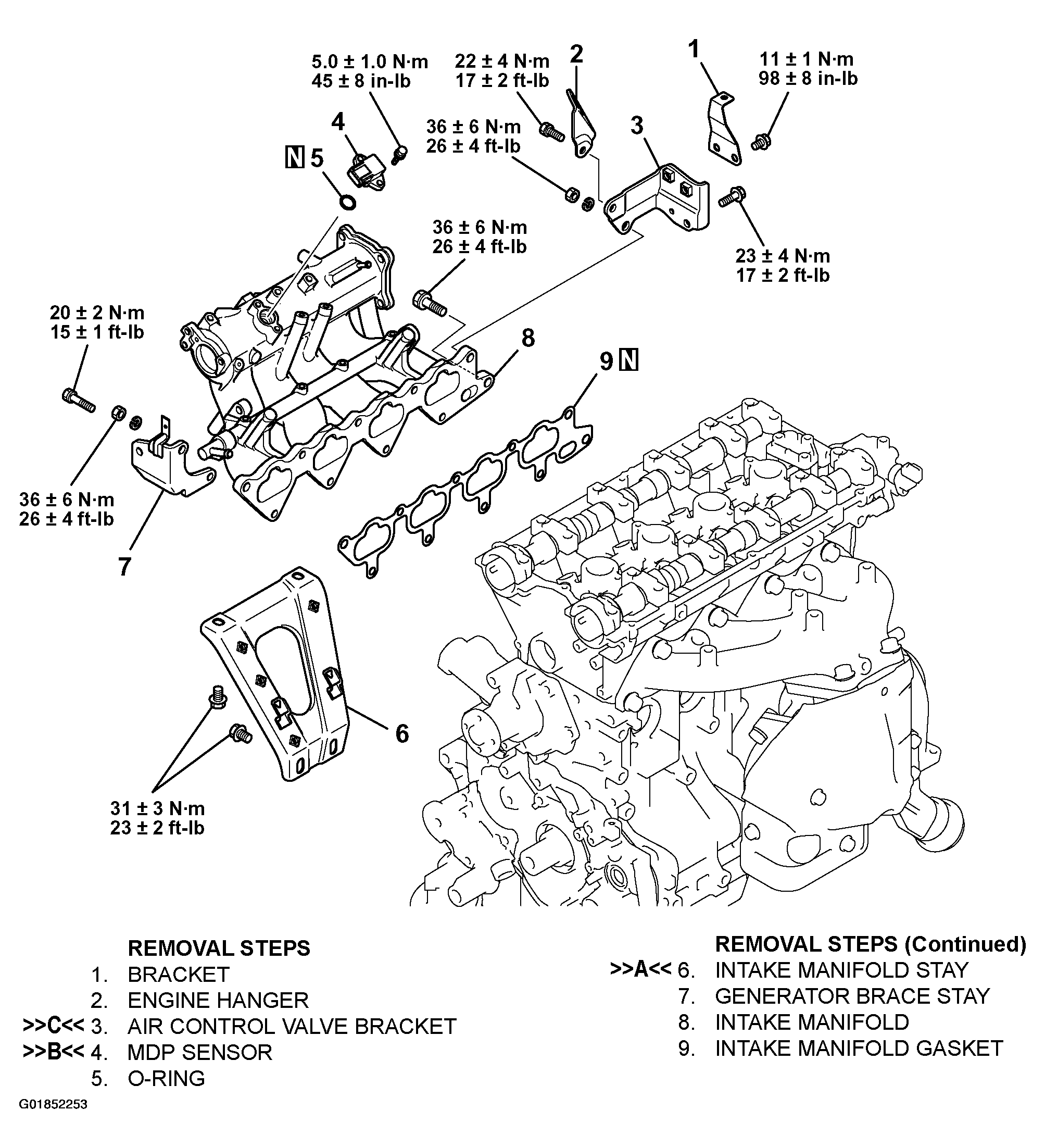

Fig 1: Intake Manifold Removing Procedure And Torque Specifications
G01852253Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
