Removal And Installation: Notes

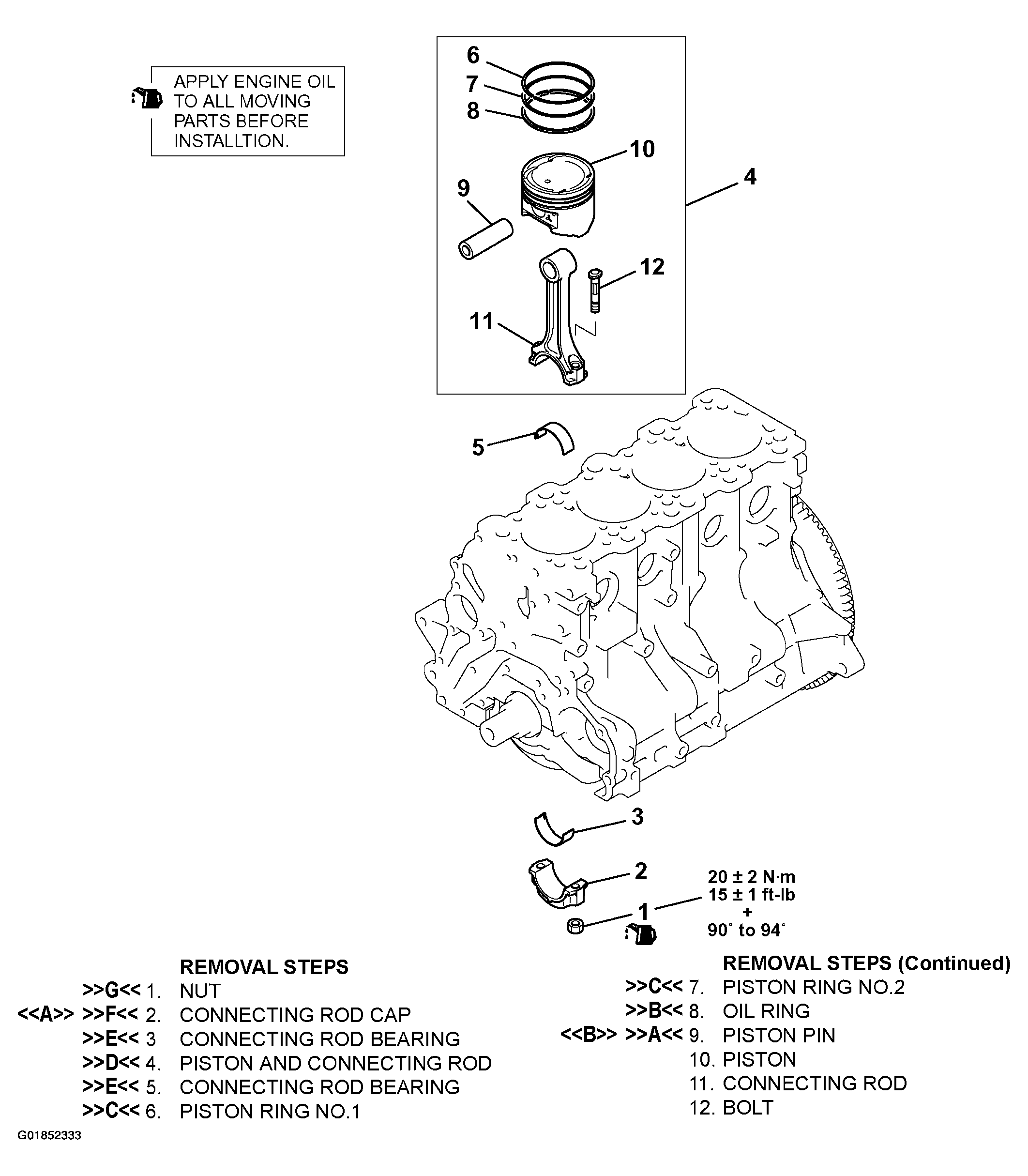

Fig 1: Piston And Connecting Rod Removing Procedure
G01852333Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tool:
