Engine Mounting: Inspection

Check the engine front mounting insulator for cracks, separation or deformation.
Check the engine front mounting cushion stoppers for deformation.

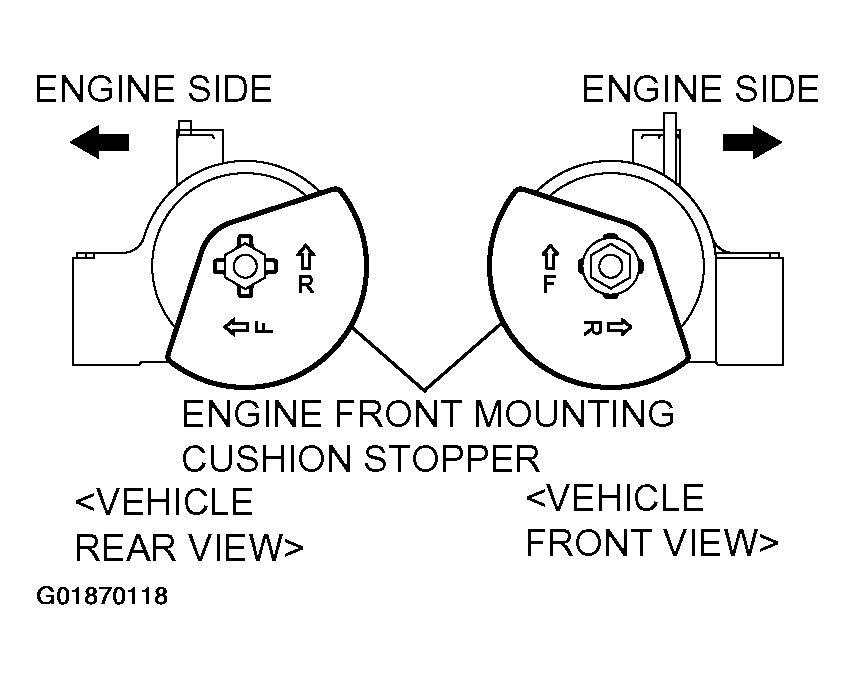

Fig 1: Installing Engine Front Mounting Cushion Stopper

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
