Component Locations

WARNING: Vehicles are equipped with air bag supplemental restraint system. Before attempting any repairs involving steering column, instrument panel or related components, see AIR BAG SAFETY PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM in appropriate AIR BAG RESTRAINT SYSTEMS article.

CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION before disconnecting battery.

The following illustrations are provided to assist in locating components. See Fig 1-Fig 9 .

Fig 1: Locating Engine Performance-Related Components (Diamante)

G00170007

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Locating Engine Performance-Related Components (Eclipse 2.4L)

G00170077

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Locating Engine Performance-Related Components (Eclipse 3.0L)

G00178735

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Locating Engine Performance-Related Components (Galant 2.4L)

G00178758

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Locating Engine Performance-Related Components (Galant 3.0L)

G00178760

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Locating Engine Performance-Related Components (Lancer)

G00170056

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Locating Engine Performance-Related Components (Montero)

G00156255

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: Locating Engine Performance-Related Components (Montero Sport)

G00169999

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

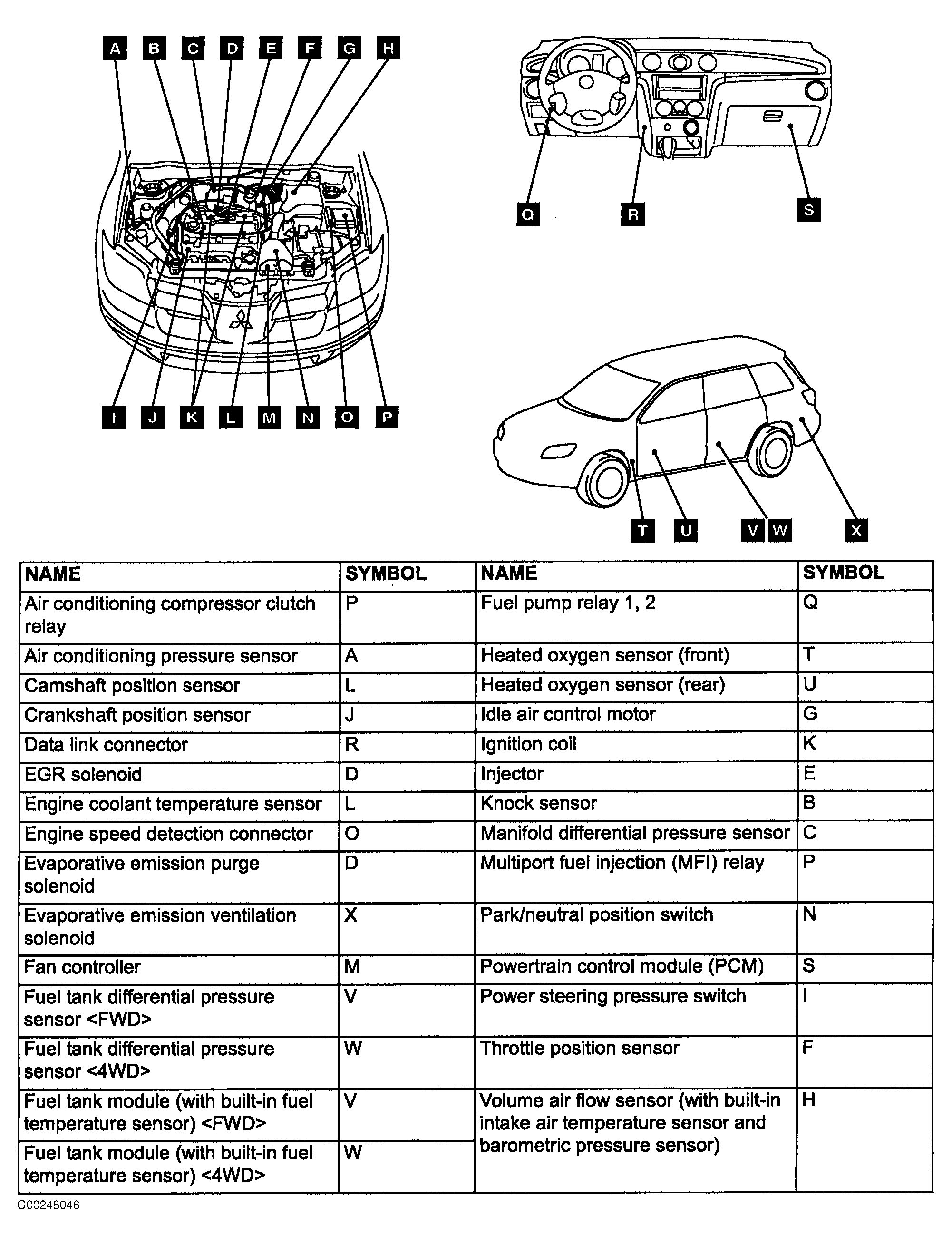

Fig 9: Locating Engine Performance-Related Components (Outlander)

G00248046

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
