Drive Belt Adjustment (Diamante)

BELT ADJUSTMENT (DIAMANTE)

Application

⁽¹⁾ Deflection Belt - In. (mm)

A/C & Generator

.31-.38 (7.9-9.7)

P/S

.43-.56 (11.0-14.2)

⁽¹⁾	With 22 lbs. (10 kg) pressure applied on longest belt run midway between pulleys. See Fig 1 and Fig 2 .

Fig 1: Locating A/C & Generator Belt Longest Run Mid-Point (Diamante)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

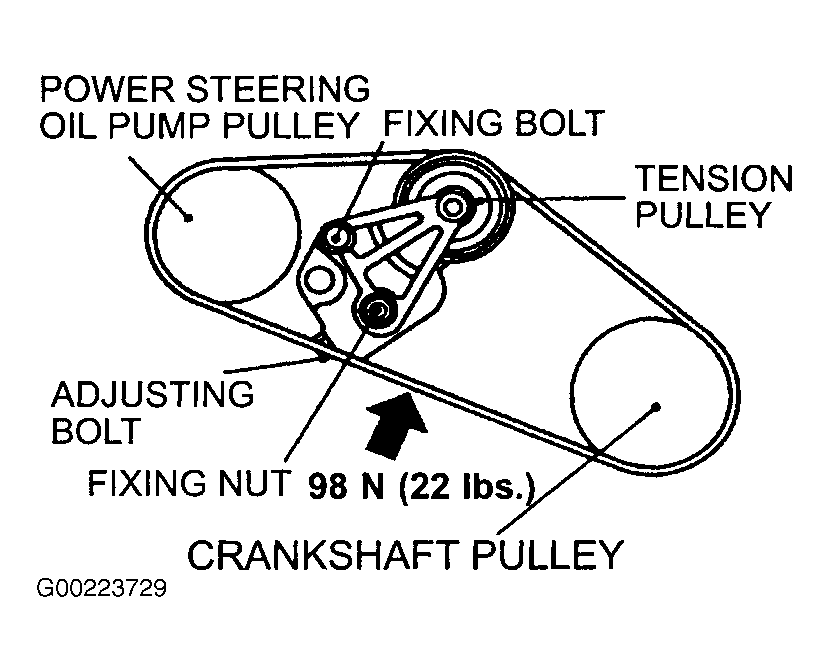

Fig 2: Locating P/S Belt Longest Run Mid-Point (Diamante)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
