DTC P0461: Fuel Level Sensor Circuit Range/Performance Fuel Gauge Unit Circuit: Operation

The fuel gauge drive signal is input in ECM (terminal No. 74 - M/T) or PCM (terminal No. 60 - A/T). See Figure and Fig 1 .

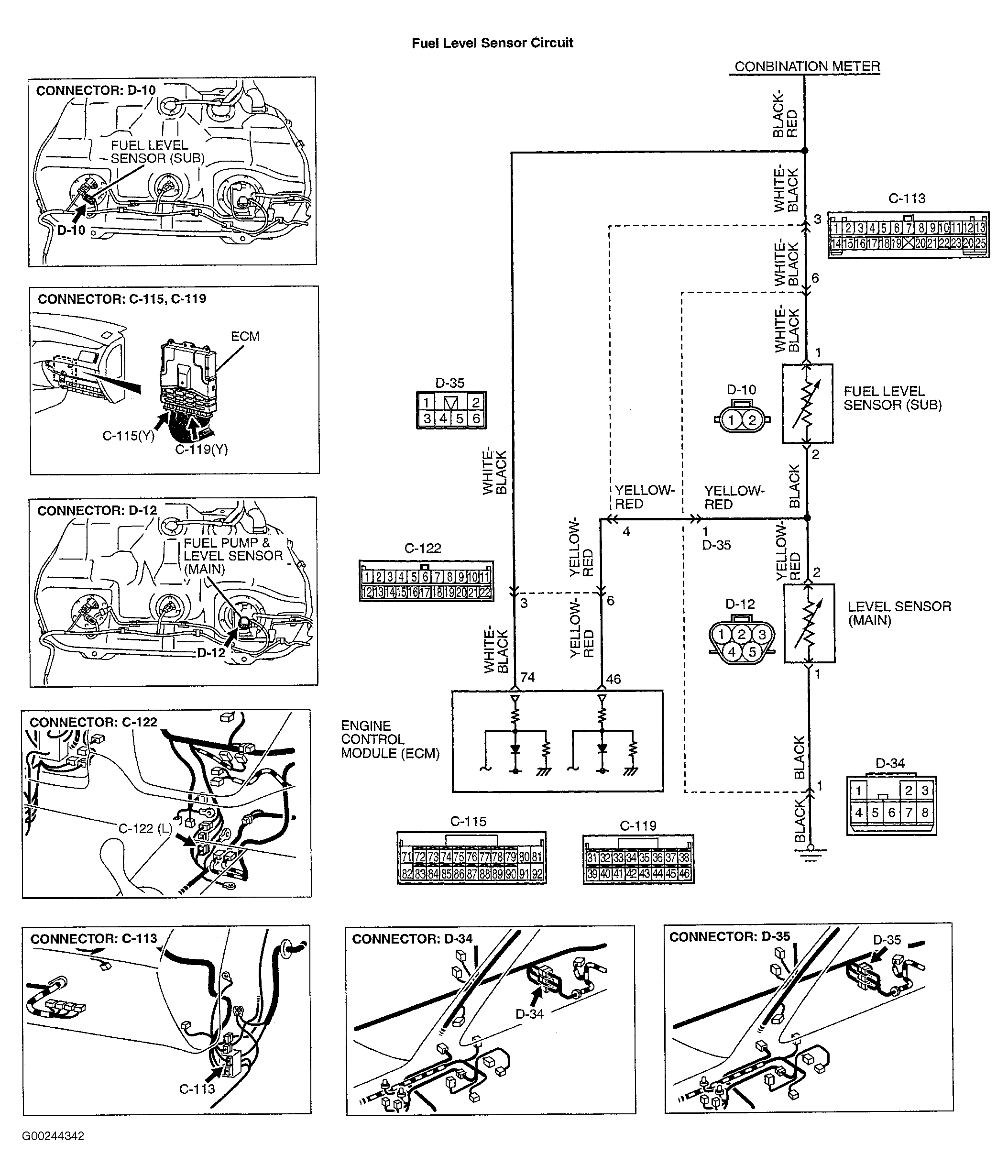

Fig 1: Identifying Fuel Level Sensor Circuit, Component & Connector Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
