DTC P2066: Fuel Level Sensor Circuit Range/Performance (Sensor 2): Operation

The fuel level sensor signal (sub) is input in ECM (terminal No. 46). See Fig 1 .

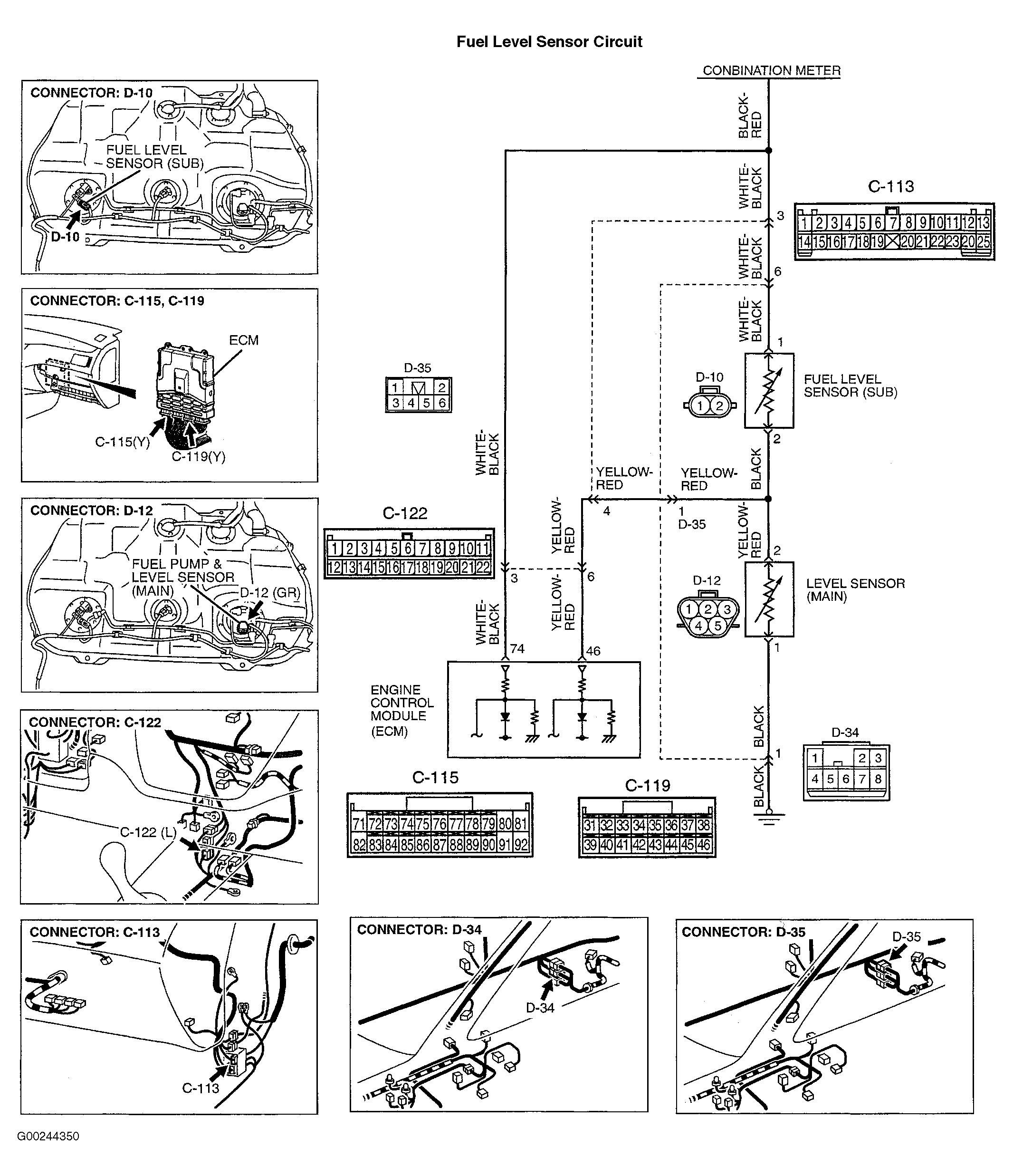

Fig 1: Identifying Fuel Level Sensor Circuit, Component & Connector Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
