Audio Unit

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to "CLUSTER LID C ".
  2. Remove cluster lid D. Refer to "CLUSTER LID D ".
  3. Remove audio unit screws using power tool and slide audio unit forward.
  4. Disconnect connectors and antenna cable and then remove audio unit.

    Install in the reverse order of removal.

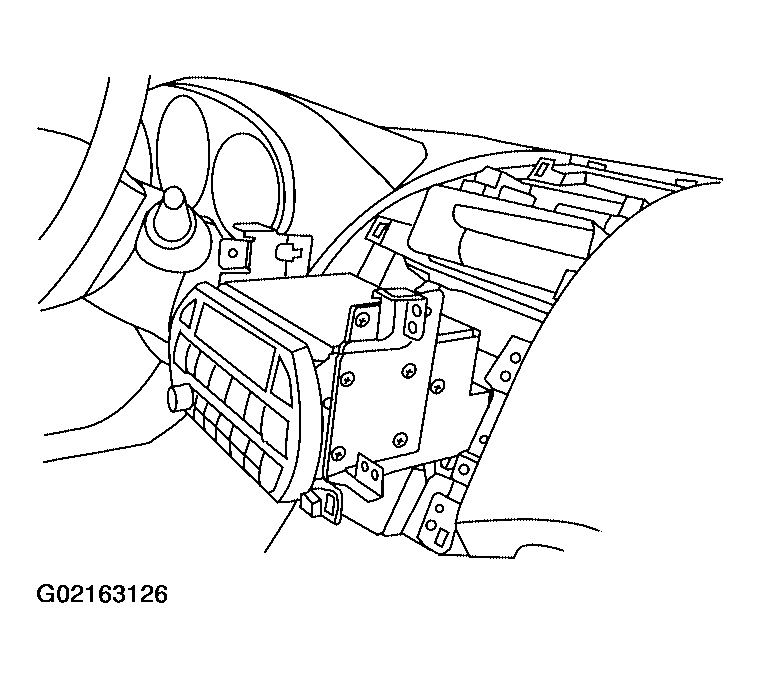

    Fig 1: Removing/Installing Audio Unit
    G02163126Courtesy of NISSAN MOTOR CO., U.S.A.
