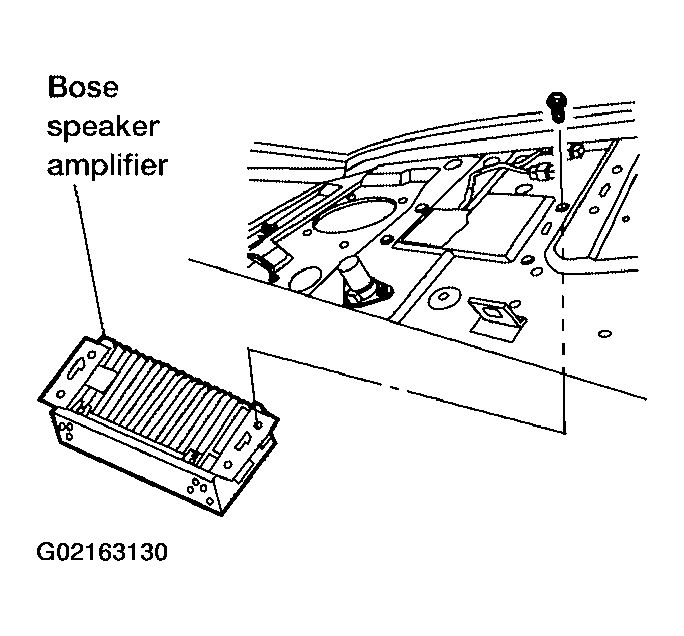

BOSE Speaker Amp.
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
- Remove rear parcel shelf finisher. Refer to "REAR PARCEL SHELF FINISHER ".
- Remove trunk trim and trunk lid finisher. Refer to "TRUNK ROOM TRIM & TRUNK LID FINISHER ".
- Remove screws and amp.
- Disconnect amp. connectors.
Install in the reverse order of removal, noting the following:
Bose speaker amp. mounting screws:
: 2.7 - 3.7 N-m (0.28 - 0.38 kg-m, 24 - 33 in-lb)
