Shift Control Components: Disassembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Mount adapter plate on vise.
Remove OD & reverse fork rod.

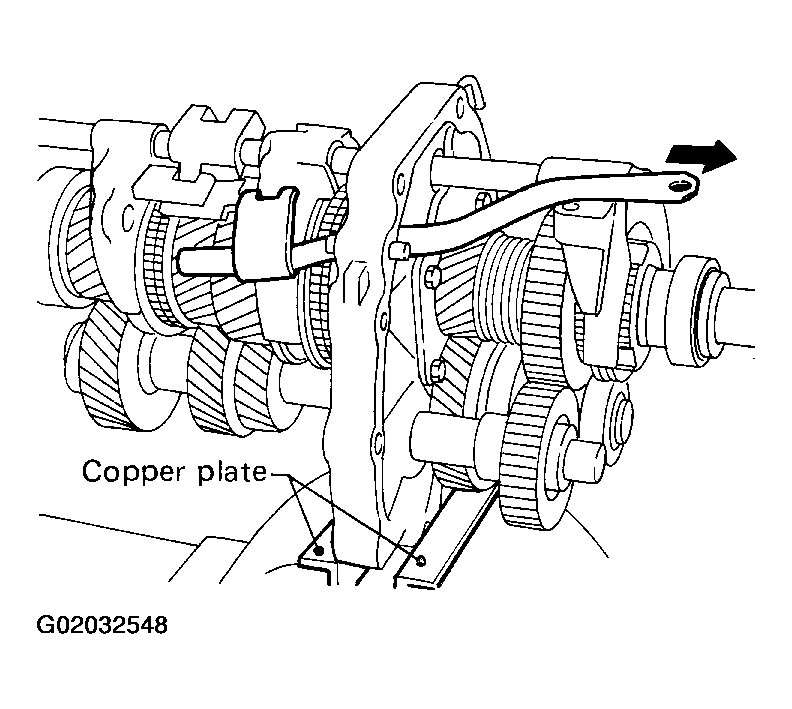

Fig 1: Removing OD And Reverse Fork Rod
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive out retaining pin from striking lever.
While pulling out striking rod, remove striking lever and striking interlock. Then remove 1st & 2nd, 3rd & 4th and reverse shift fork.

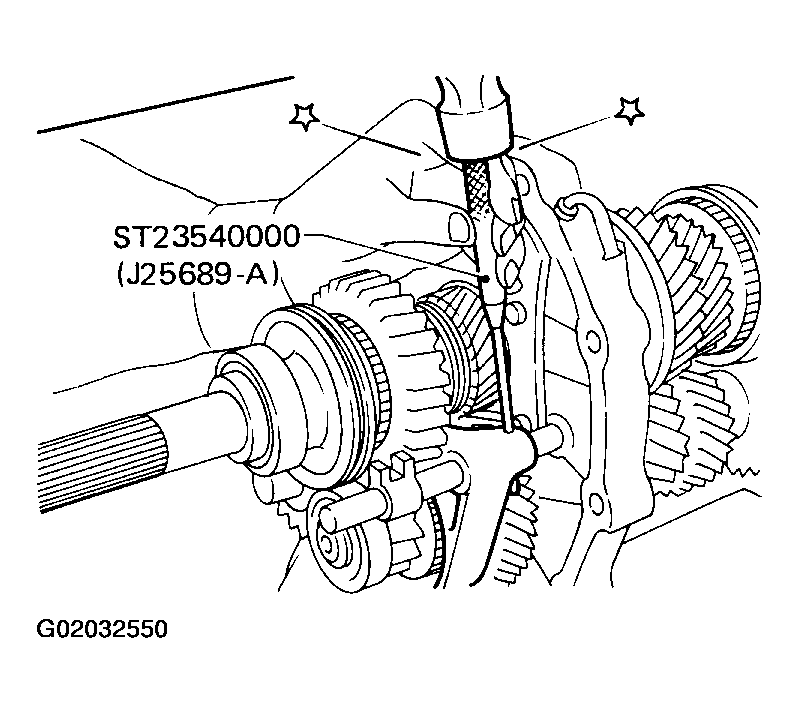

Fig 2: Driving Out Retaining Pin From Striking Lever
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive out retaining pin from OD shift fork.
Pull out OD fork rod and then remove OD shift fork.

Fig 3: Driving Out Retaining Pin From OD Shift Fork
Courtesy of NISSAN MOTOR CO., U.S.A.
