Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Intake Air Temperature Sensor

For intake air temperature sensor, see Fig 1.

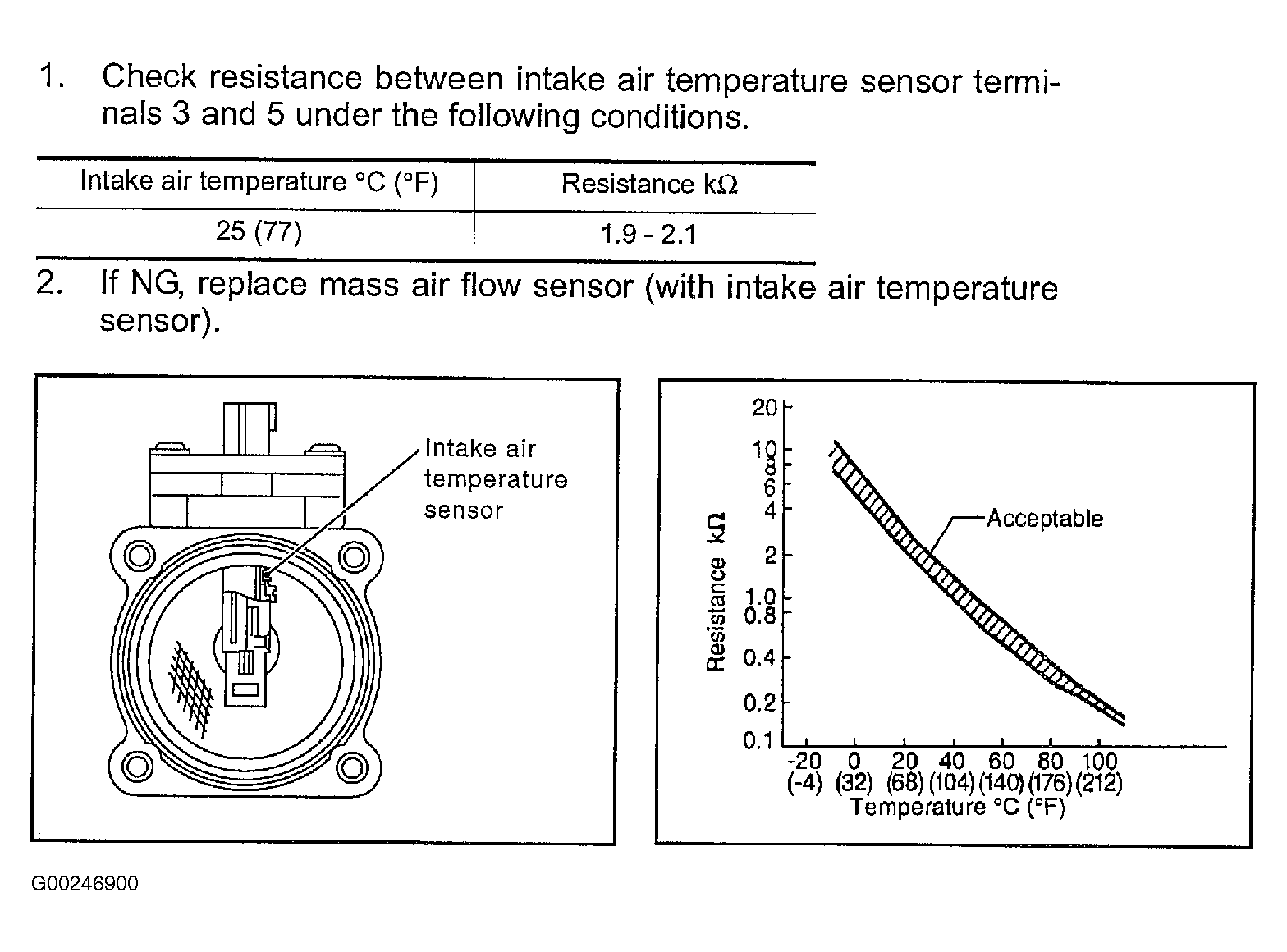

Fig 1: Testing Intake Air Temperature Sensor For DTC P0112 Or P0113: Intake Air Temperature Sensor
G00246900Courtesy of NISSAN MOTOR CO., U.S.A.
