Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Engine Coolant Temperature Sensor

For engine coolant temperature sensor inspection, see Fig 1.

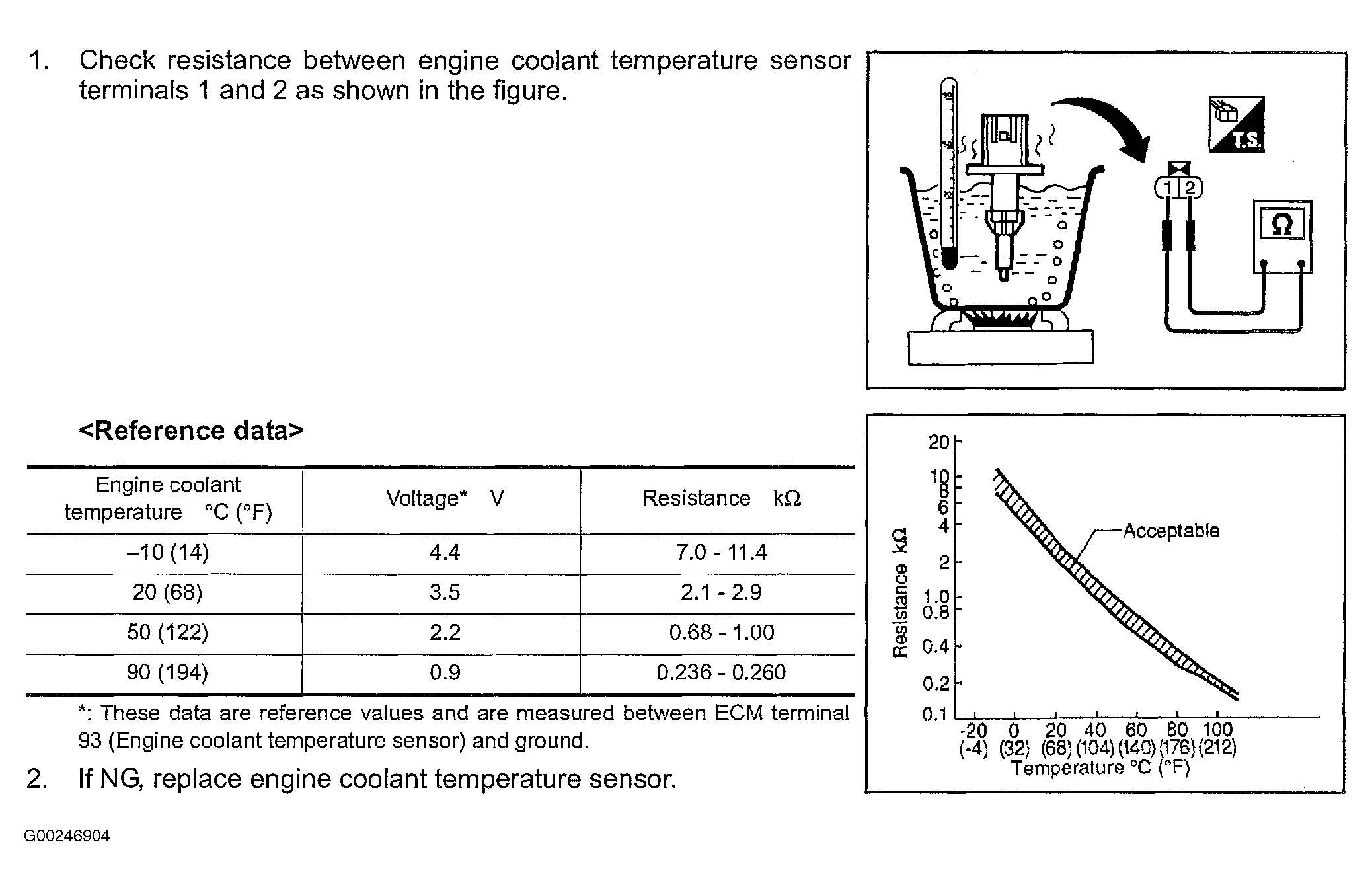

Fig 1: Inspecting Engine Coolant Temperature Sensor
G00246904Courtesy of NISSAN MOTOR CO., U.S.A.
