Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For component inspection, see COMPONENT INSPECTION (2.5L) or COMPONENT INSPECTION (3.5L) for throttle valve closed position learning, see THROTTLE VALVE CLOSED POSITION LEARNING , for idle air volume learning, see IDLE AIR VOLUME LEARNING and for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For diagnostic procedure, see Fig 1 - Fig 3 .

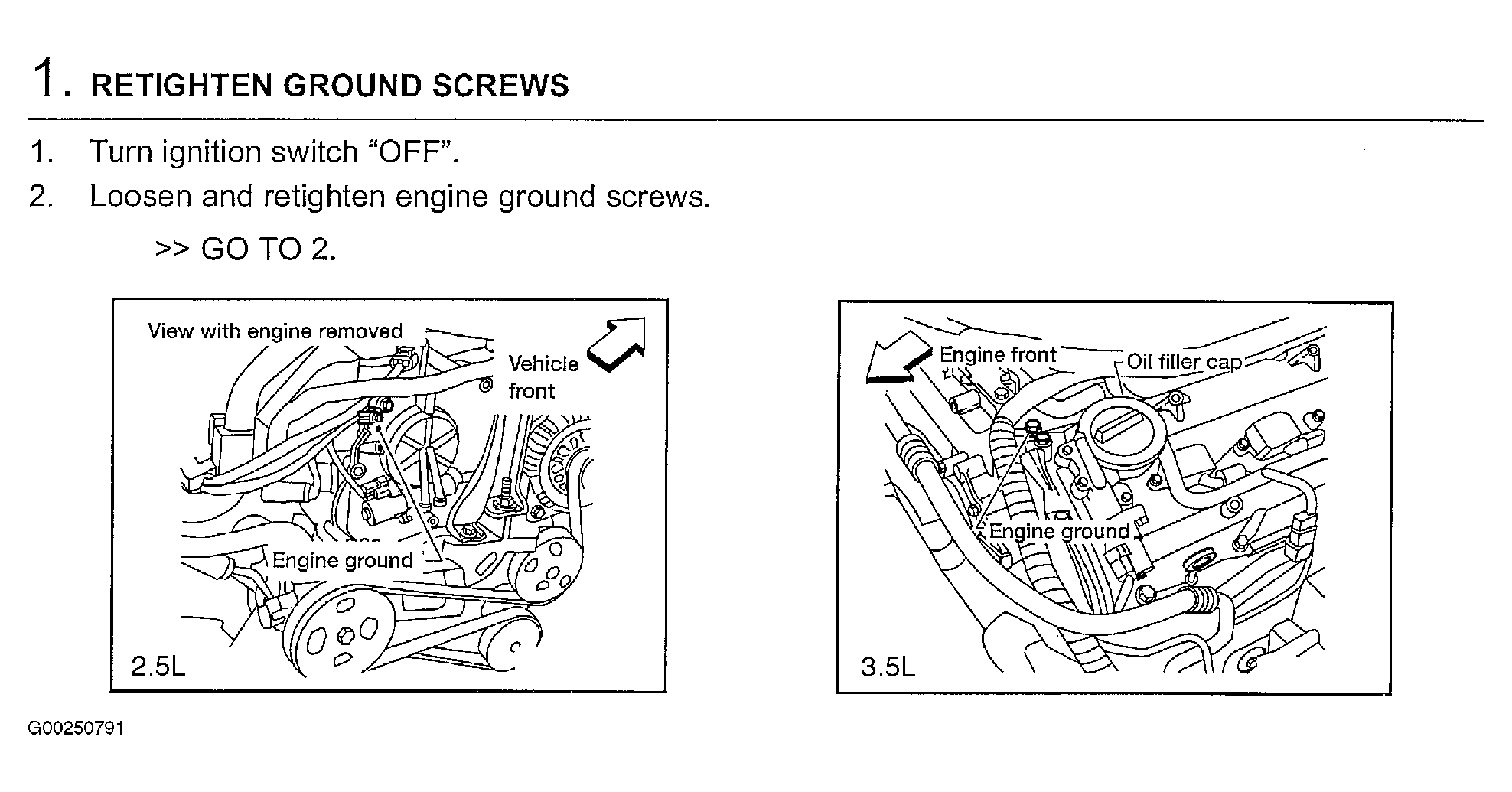

Fig 1: Identifying Diagnostic Procedure For DTC P0222 Or DTC P0223: TP Sensor (Step 1 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

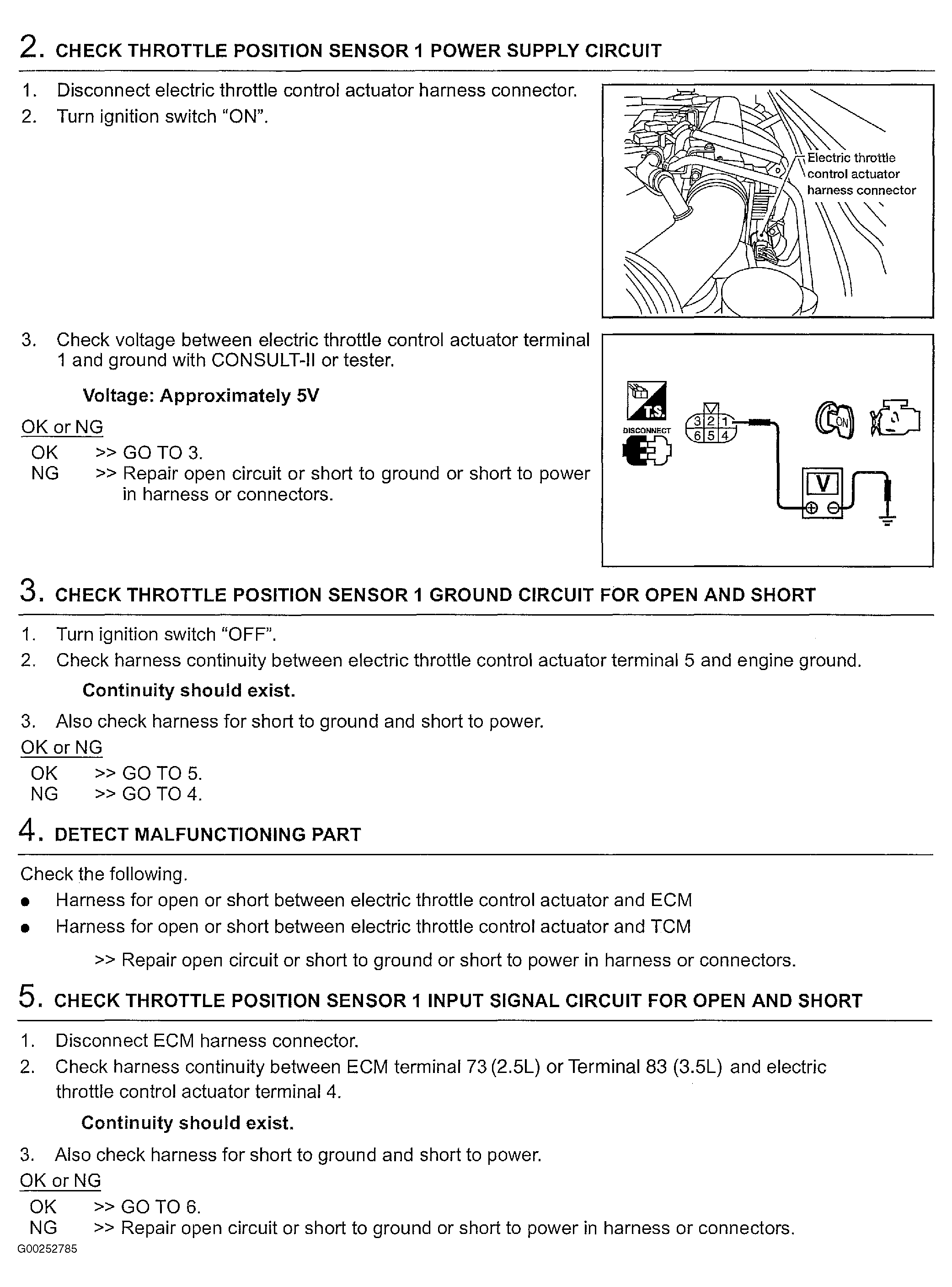

Fig 2: Identifying Diagnostic Procedure For DTC P0222 Or DTC P0223: TP Sensor (Steps 2-5 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

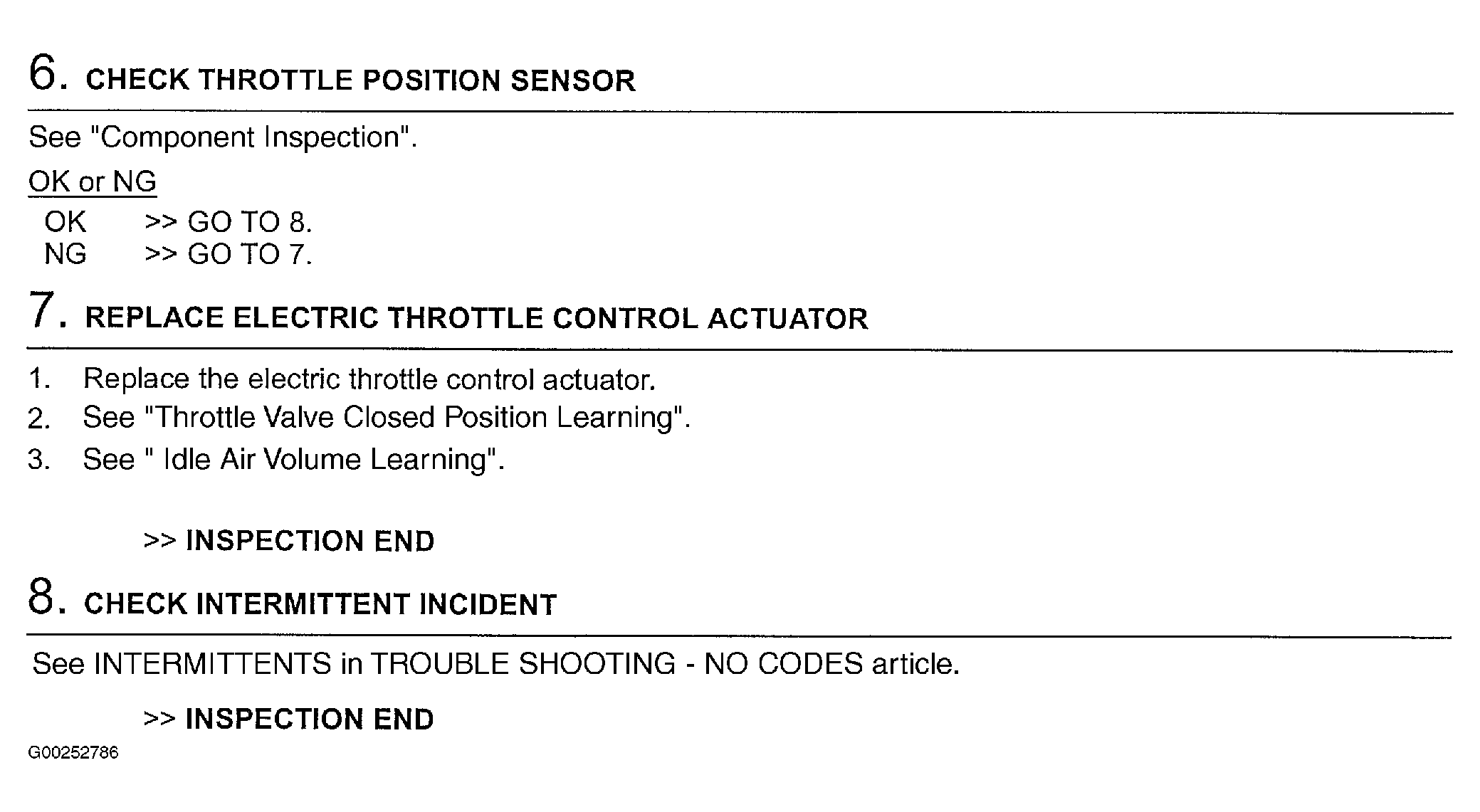

Fig 3: Identifying Diagnostic Procedure For DTC P0222 Or DTC P0223: TP Sensor (Steps 6-8 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.
