Overall Function Check (With GST) (3.5L)

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use this procedure to check the overall monitoring function of the EVAP control system purge flow monitoring. During this check, a DTC might not be confirmed.

NOTE: For diagnostic procedure, see DIAGNOSTIC PROCEDURE (3.5L)

For overall function check, see Fig 1.

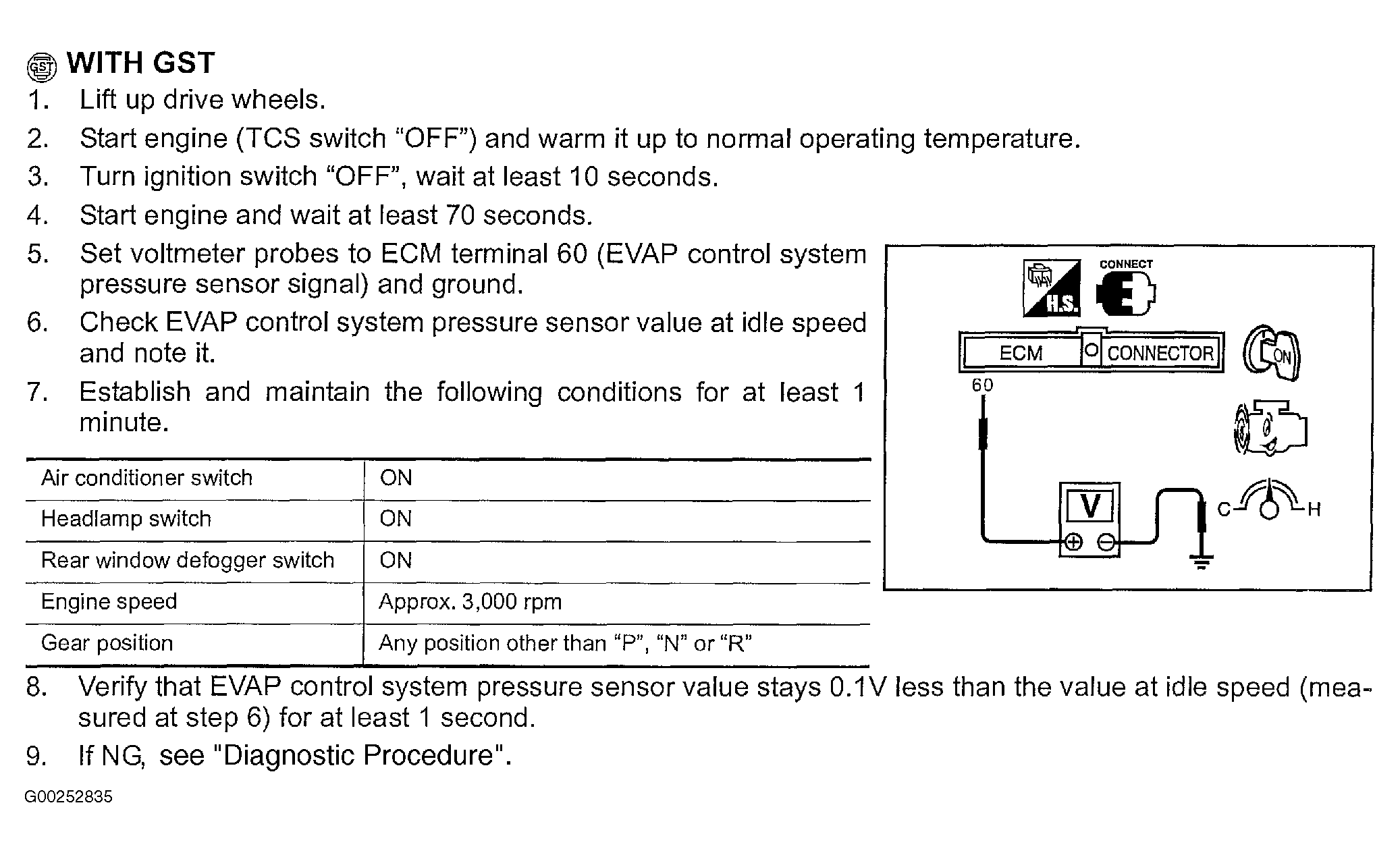

Fig 1: Identifying Overall Function Check For DTC P0441: EVAP Control System (3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
