DTC Confirmation Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTC confirmation procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

For DTC confirmation procedure, see Fig 1-Fig 2 .

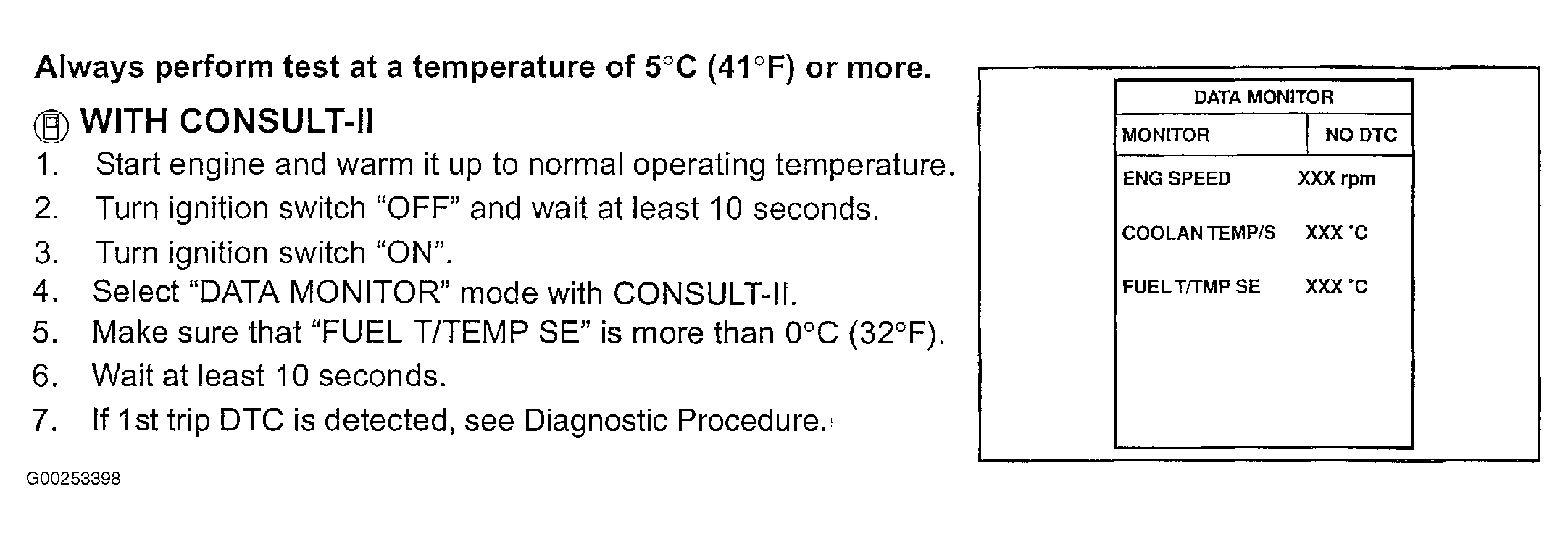

Fig 1: DTC Confirmation Procedure For DTC P0453: EVAP Control System Pressure Sensor (With CONSULT-II)

Courtesy of NISSAN MOTOR CO., U.S.A.

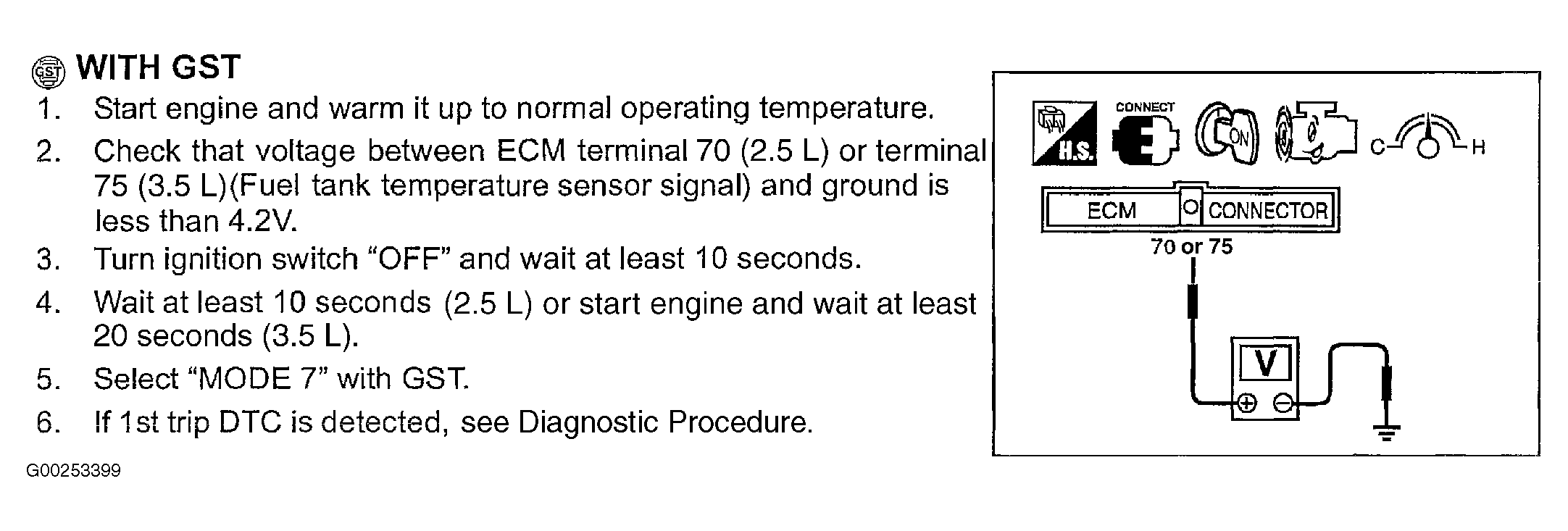

Fig 2: DTC Confirmation Procedure For DTC P0453: EVAP Control System Pressure Sensor (With GST)

Courtesy of NISSAN MOTOR CO., U.S.A.
