Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For fuel tank vacuum relief valve, see COMPONENT INSPECTION  under DTC P0442: EVAP CONTROL SYSTEM, for DTC confirmation procedure for DTC P1448, see DTC CONFIRMATION PROCEDURE  under DTC P1448: EVAP CANISTER VENT CONTROL VALVE, for EVAP canister purge volume control solenoid valve component inspection, see COMPONENT INSPECTION  under DTC P0444 OR DTC P0445: EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE, for fuel tank temperature sensor component inspection, see COMPONENT INSPECTION  under DTC P0181: FUEL TANK TEMPERATURE SENSOR, for refueling control valve component inspection, see REFUELING CONTROL VALVE under ON BOARD REFUELING VAPOR RECOVERY SYSTEM in SYSTEM & COMPONENT TESTING article, for EVAP control system pressure sensor component inspection, see COMPONENT INSPECTION (2.5L)  or COMPONENT INSPECTION (3.5L)  under DTC P0453: EVAP CONTROL SYSTEM PRESSURE SENSOR and for intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

For diagnostic procedure, see Fig 1-Fig 6 .

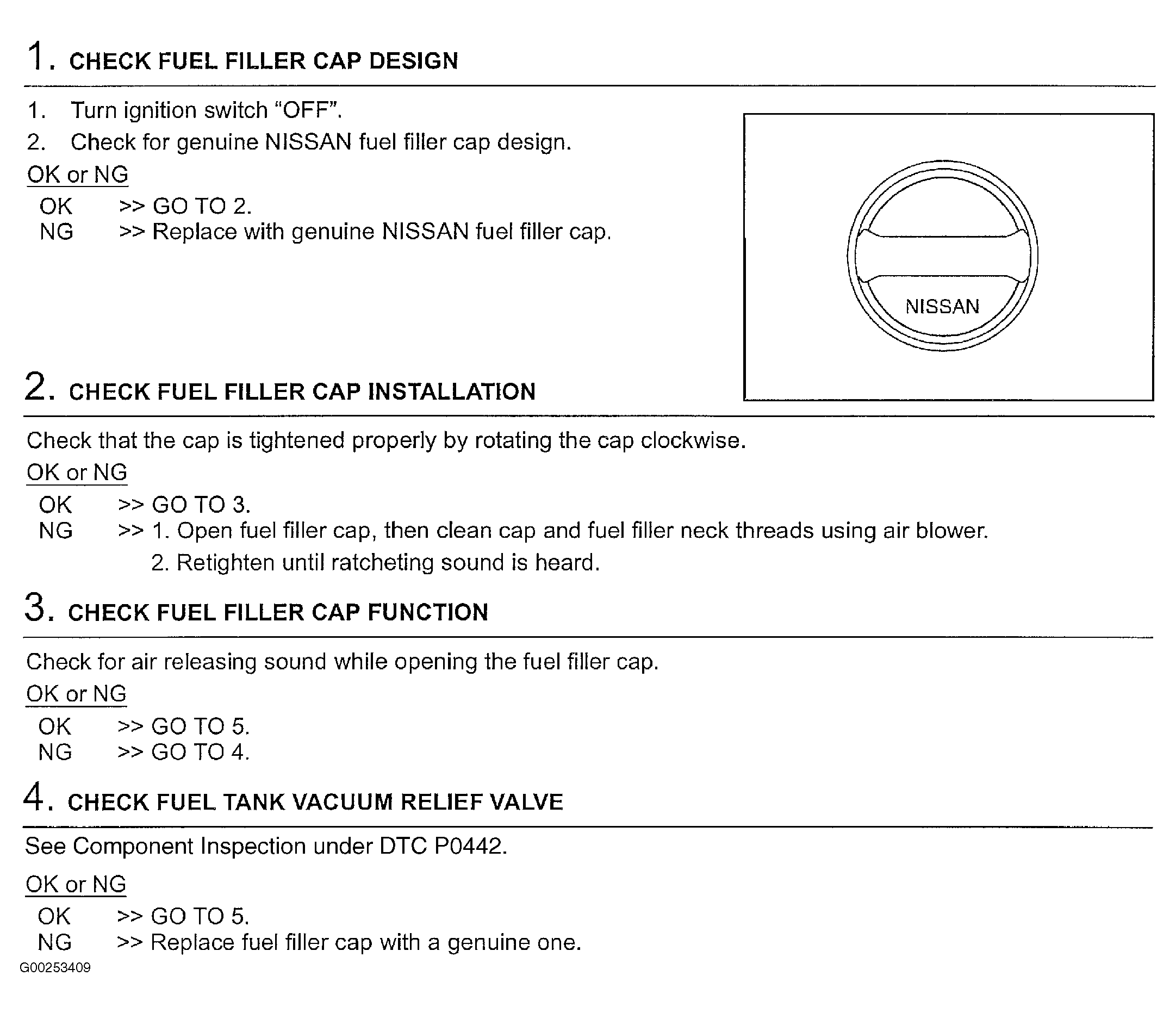

Fig 1: Identifying Diagnostic Procedure For DTC P0455: EVAP Control System (Steps 1-4 Of 21)
G00253409Courtesy of NISSAN MOTOR CO., U.S.A.

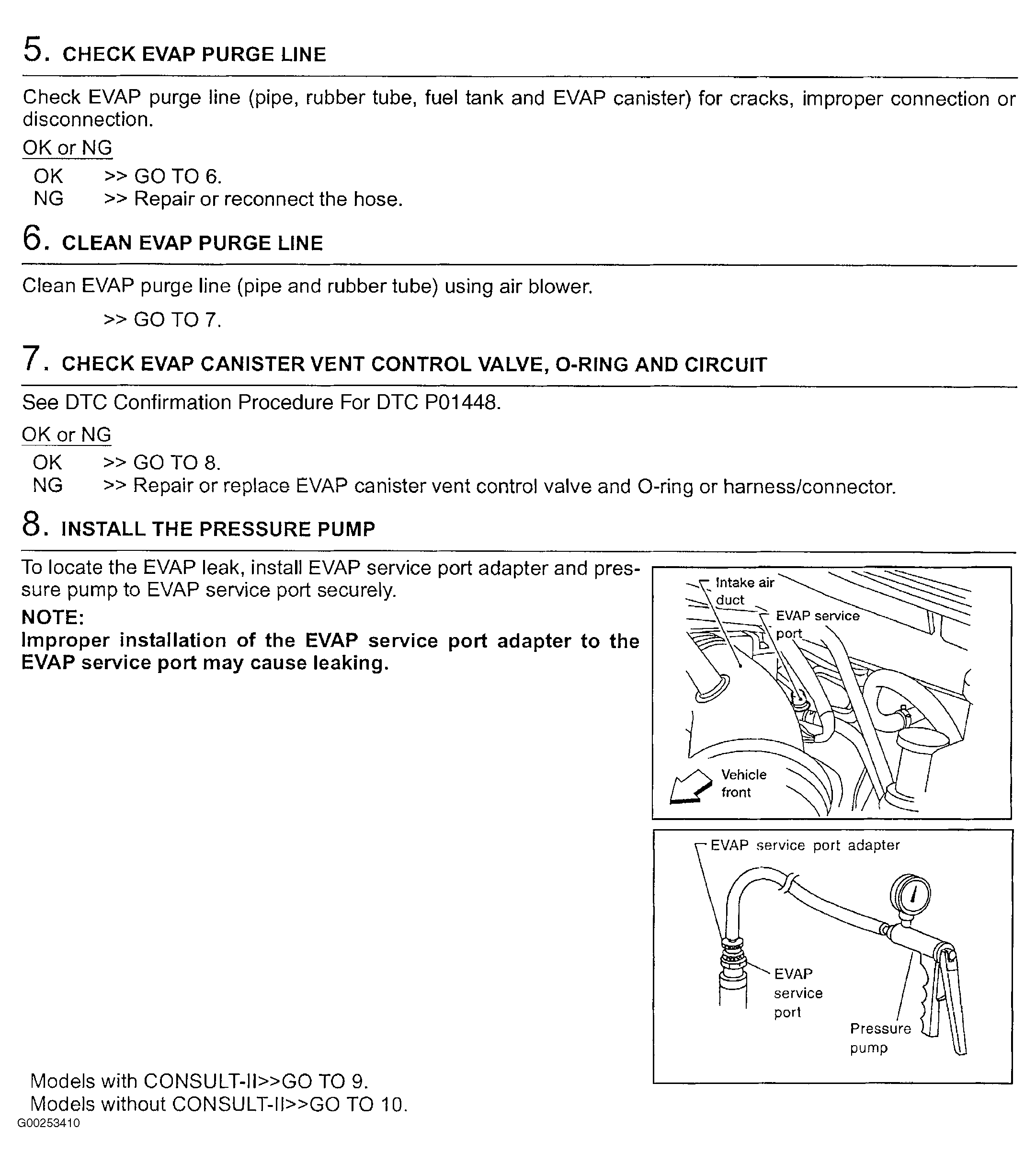

Fig 2: Identifying Diagnostic Procedure For DTC P0455: EVAP Control System (Steps 5-8 Of 21)
G00253410Courtesy of NISSAN MOTOR CO., U.S.A.

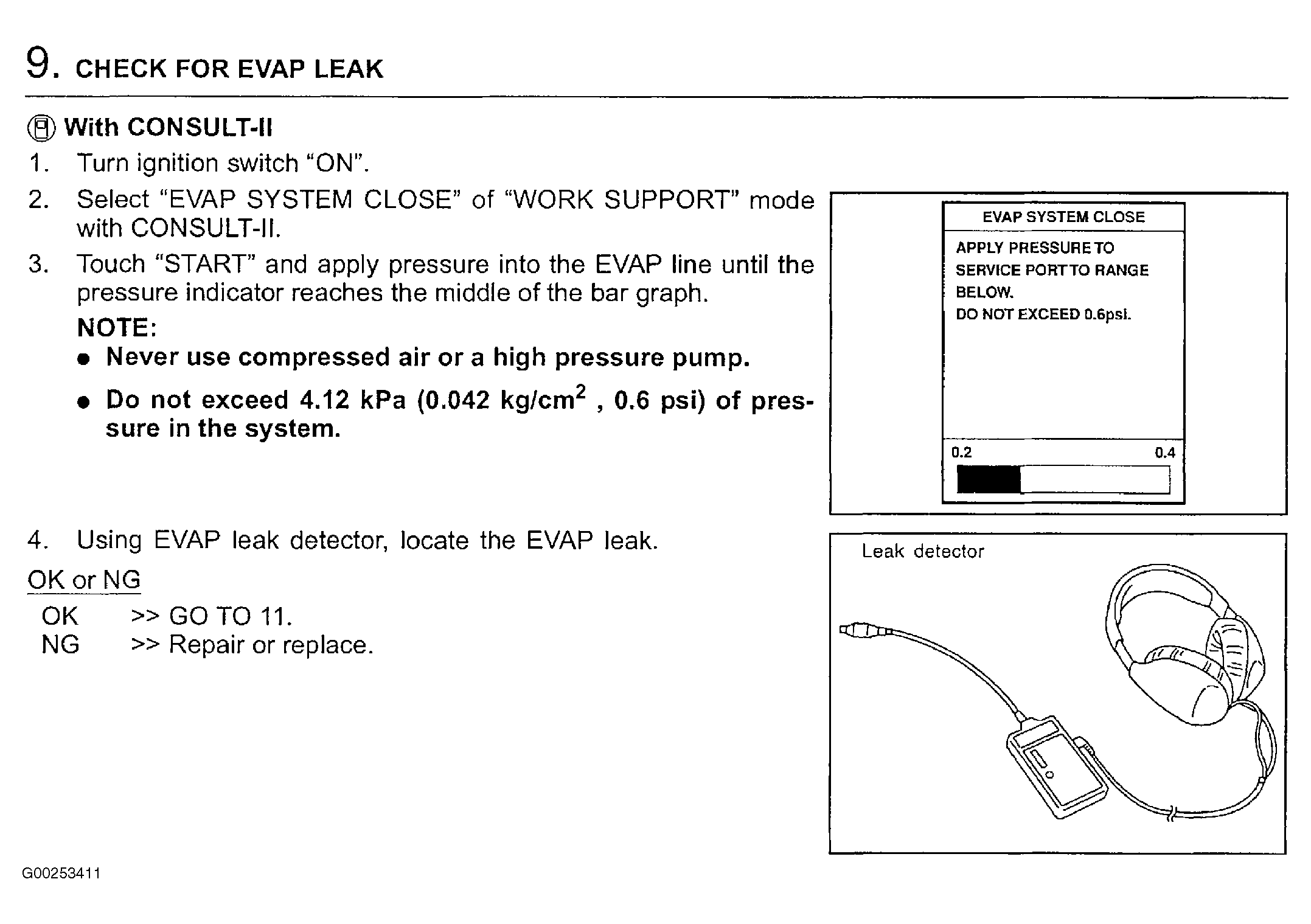

Fig 3: Identifying Diagnostic Procedure For DTC P0455: EVAP Control System (Step 9 Of 21)
G00253411Courtesy of NISSAN MOTOR CO., U.S.A.

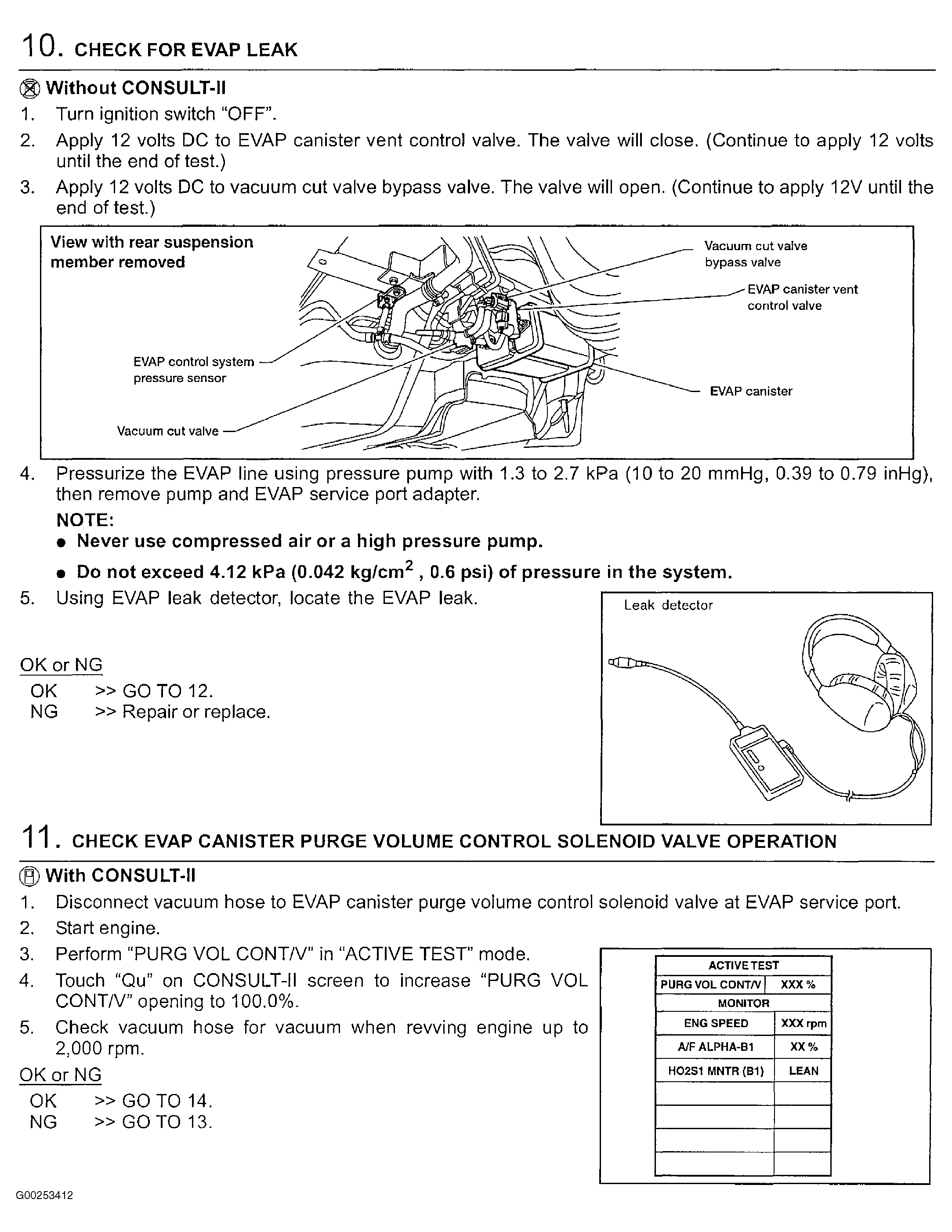

Fig 4: Identifying Diagnostic Procedure For DTC P0455: EVAP Control System (Steps 10-11 Of 21)
G00253412Courtesy of NISSAN MOTOR CO., U.S.A.

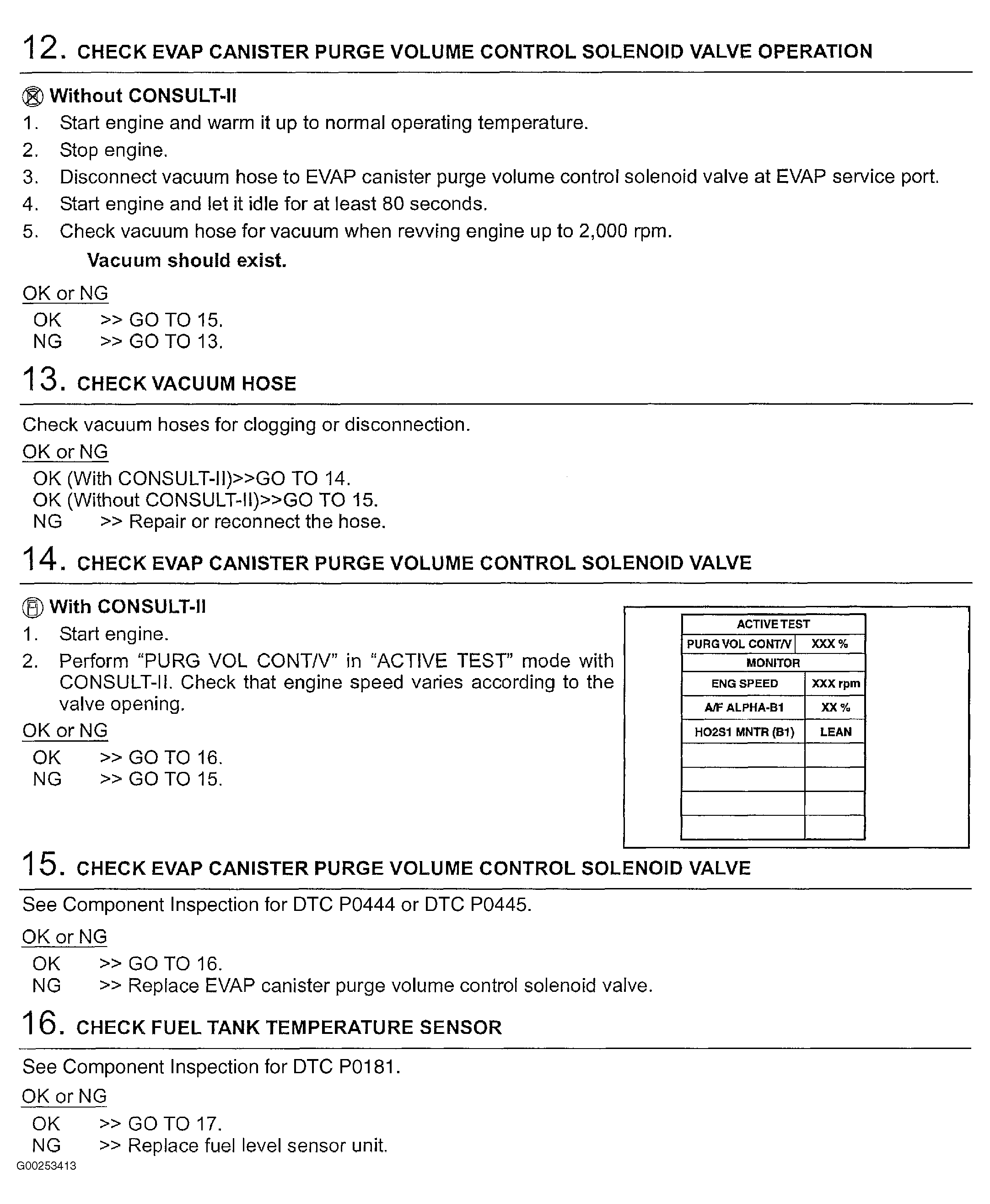

Fig 5: Identifying Diagnostic Procedure For DTC P0455: EVAP Control System (Steps 12-16 Of 21)
G00253413Courtesy of NISSAN MOTOR CO., U.S.A.

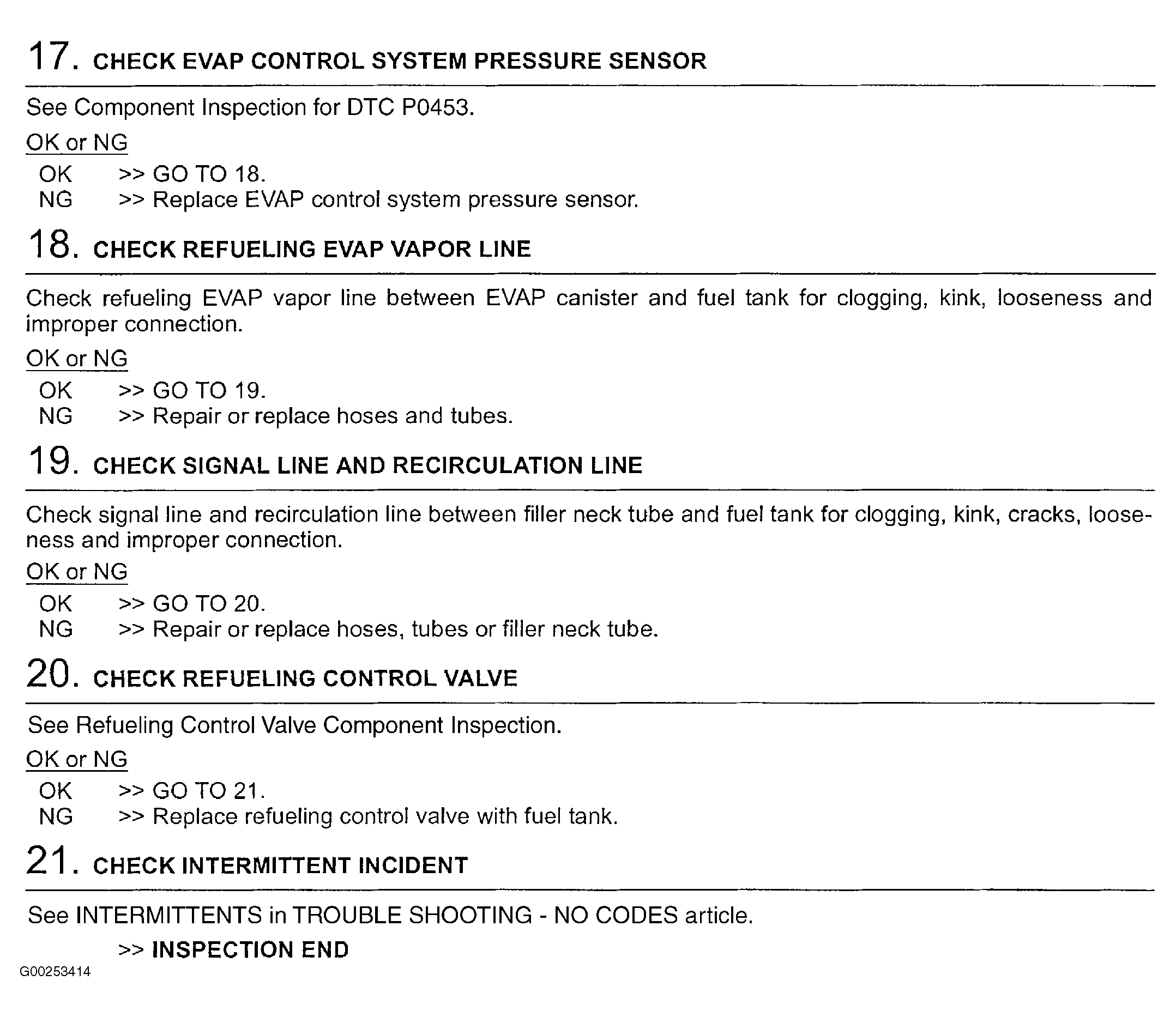

Fig 6: Identifying Diagnostic Procedure For DTC P0455: EVAP Control System (Steps 17-21 Of 21)
G00253414Courtesy of NISSAN MOTOR CO., U.S.A.
