Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For intermittents, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article and for intelligent power distribution module, see INTELLIGENT POWER DISTRIBUTION MODULE - ALTIMA article in ACCESSORIES & EQUIPMENT.

For diagnostic procedure, see Fig 1-Fig 2 .

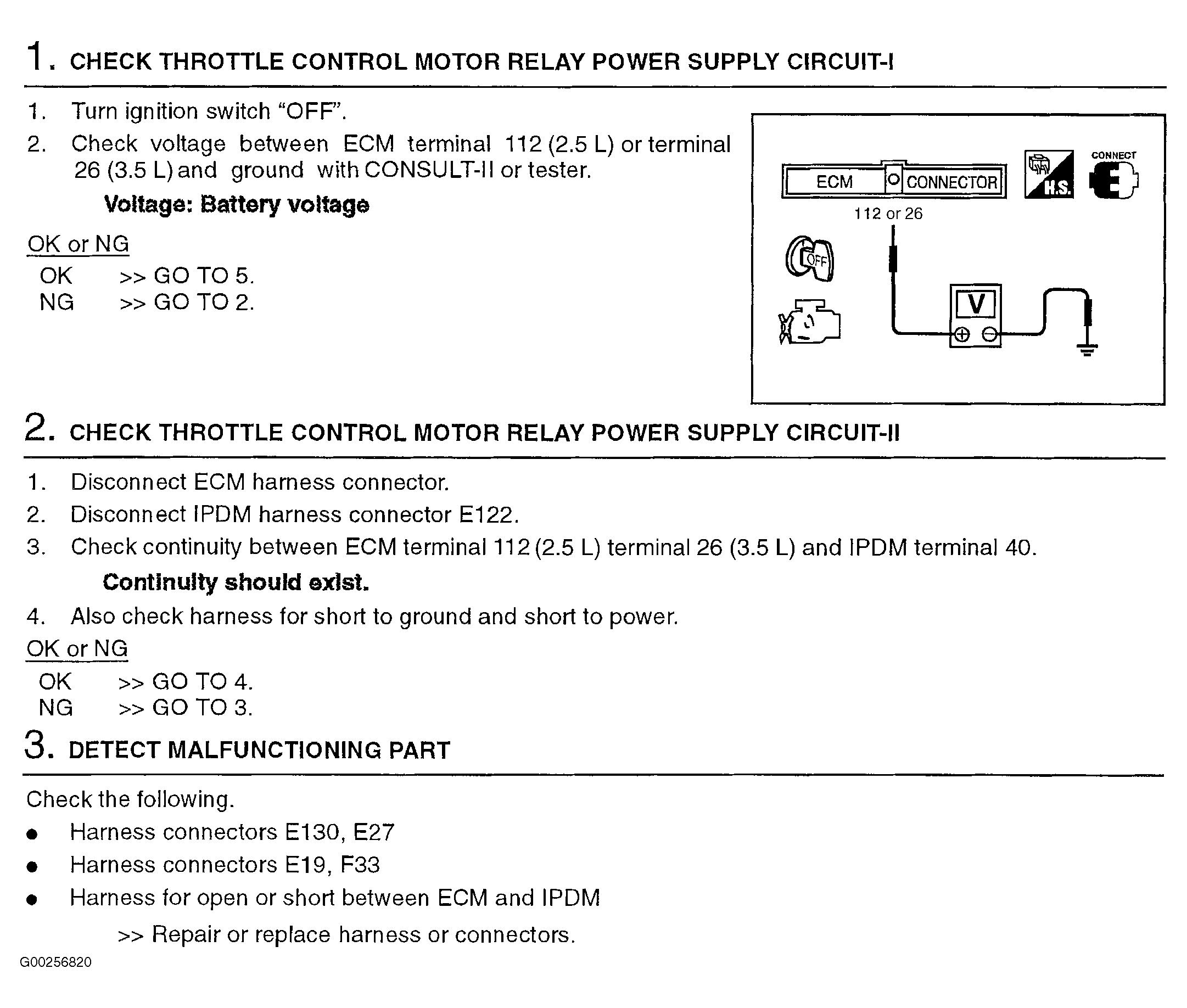

Fig 1: Identifying Diagnostic Procedure For DTC P1124 & DTC P1126: Throttle Control Motor Relay (Steps 1-3 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

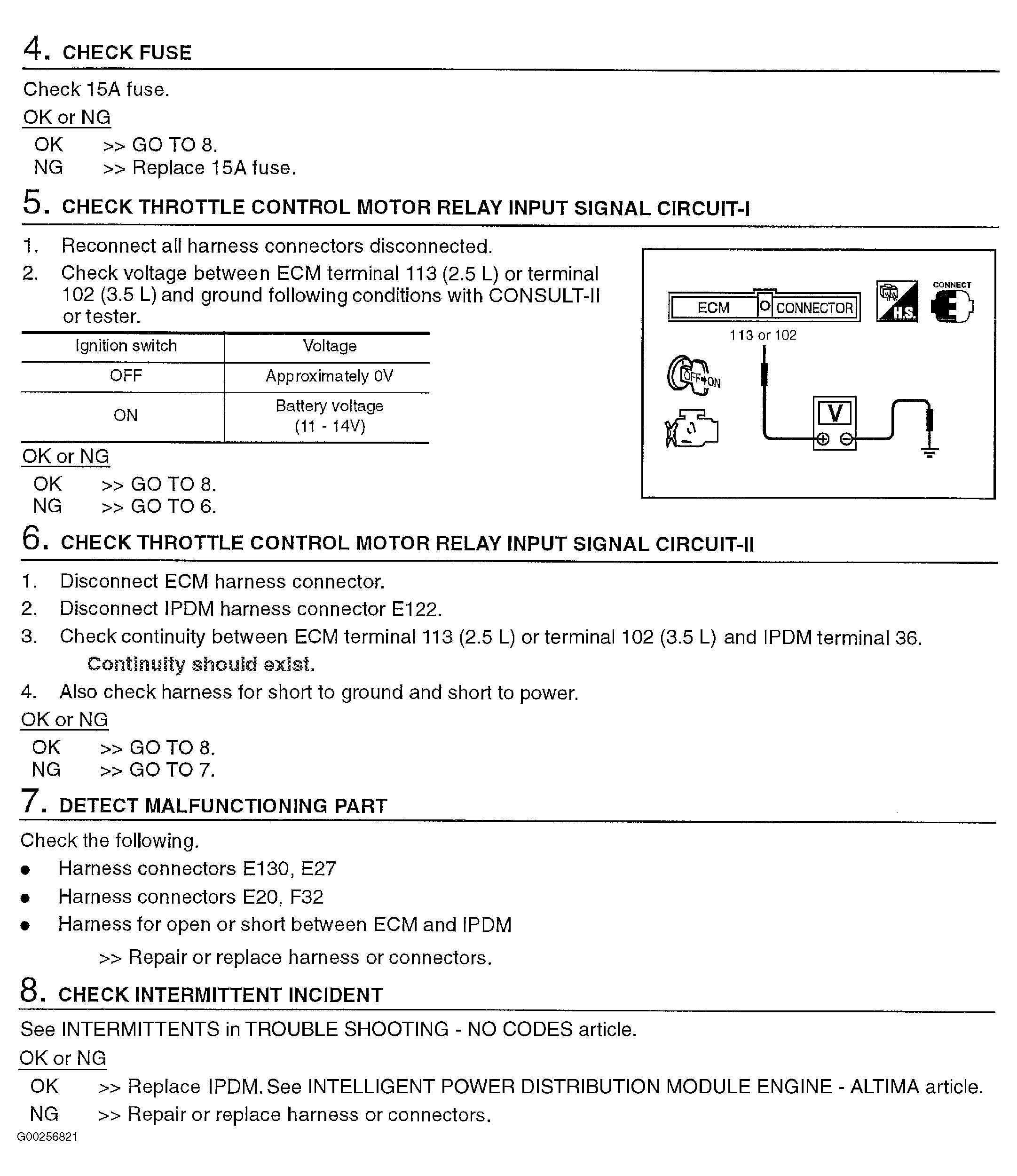

Fig 2: Identifying Diagnostic Procedure For DTC P1124 & DTC P1126: Throttle Control Motor Relay (Steps 4-8 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.
