WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
For circuit terminal identification, see Fig 1-Fig 2
.

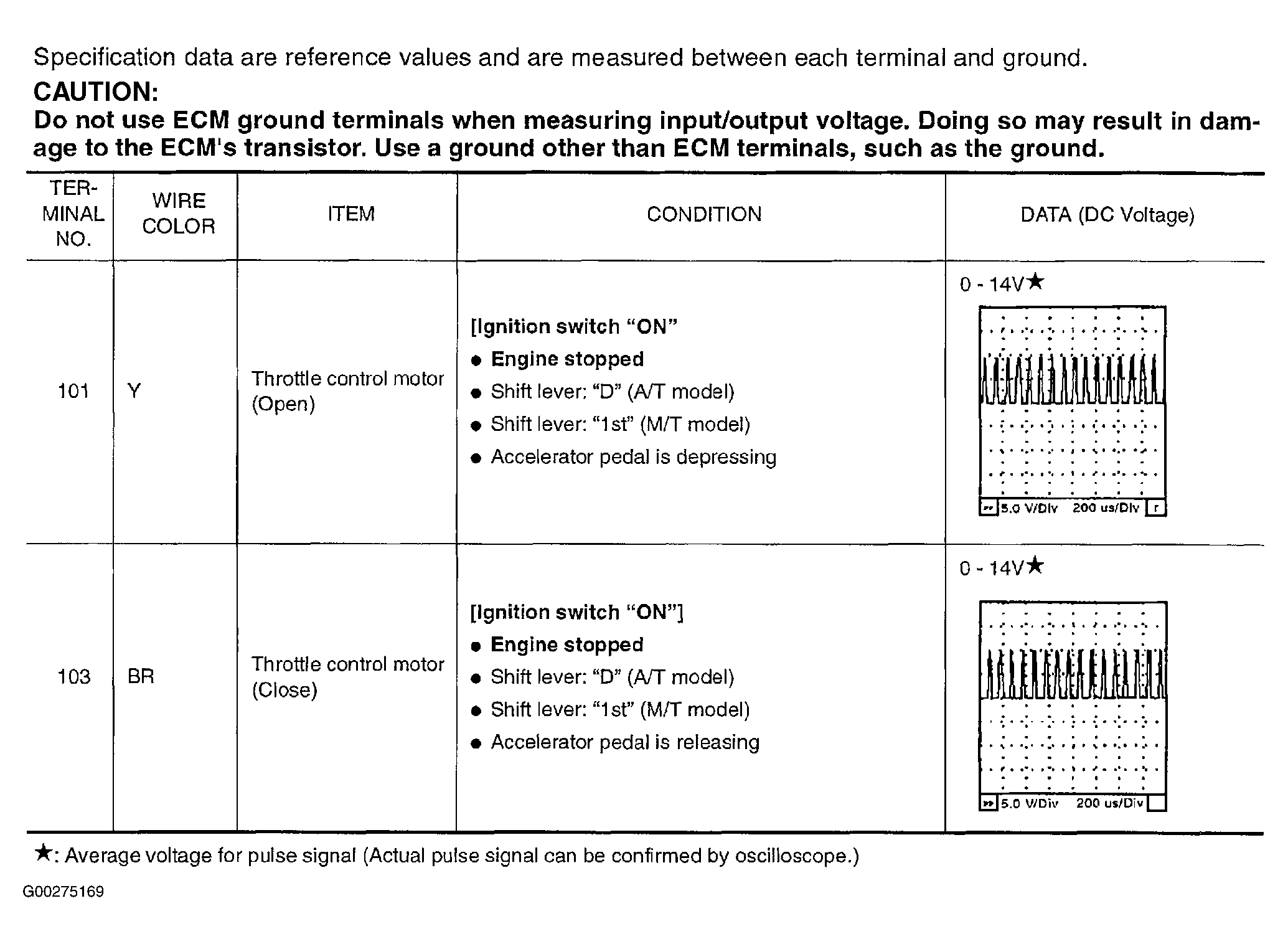

Fig 1: Circuit Testing Value Chart For DTC P1128: Throttle Control Motor (2.5L)
Courtesy of NISSAN MOTOR CO., U.S.A.

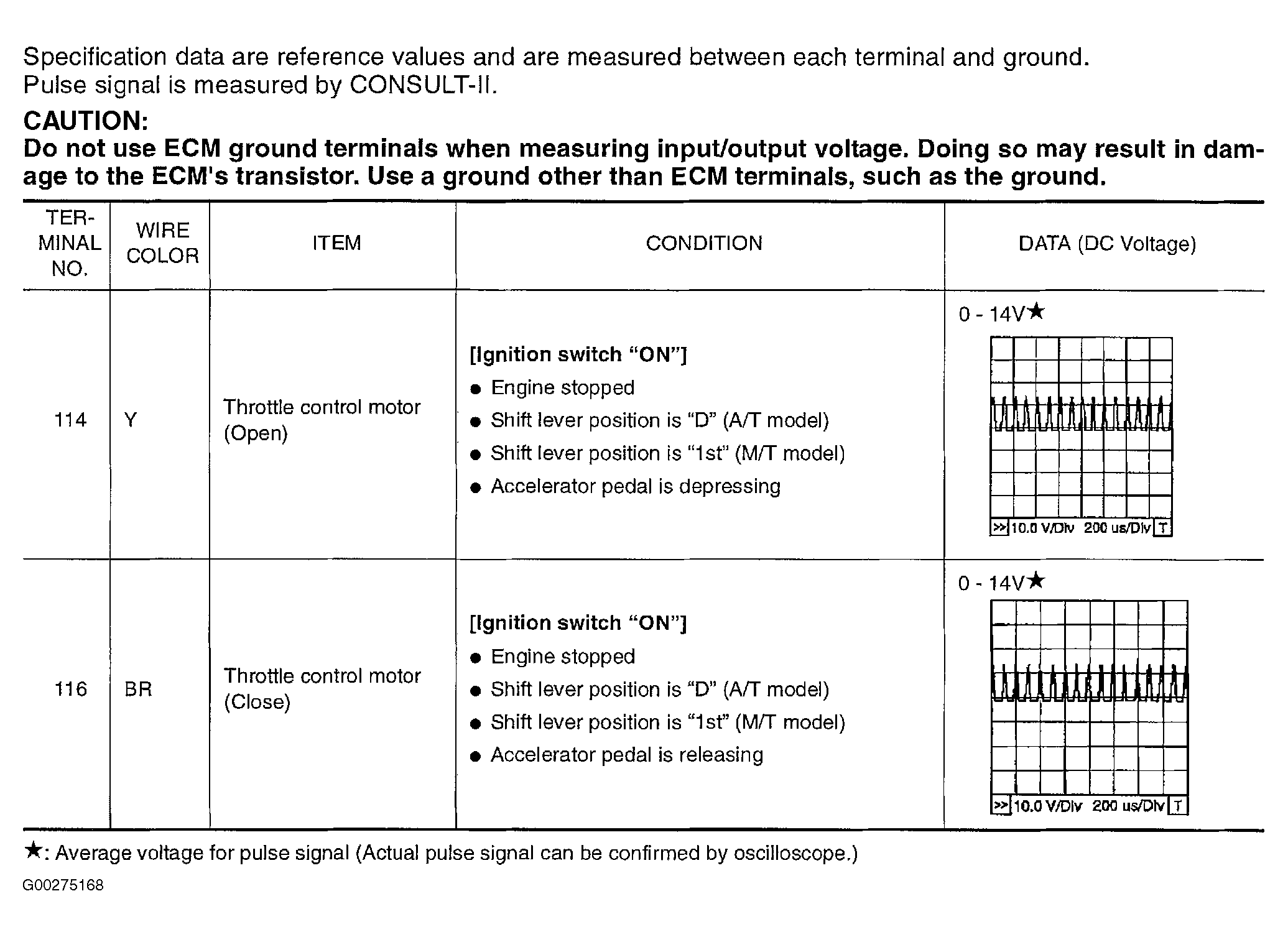

Fig 2: Circuit Testing Value Chart For DTC P1128: Throttle Control Motor (3.5L)
