CONSULT-II Reference Value In Data Monitor Mode

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

For CONSULT-II reference value in data monitor mode, see Fig 1.

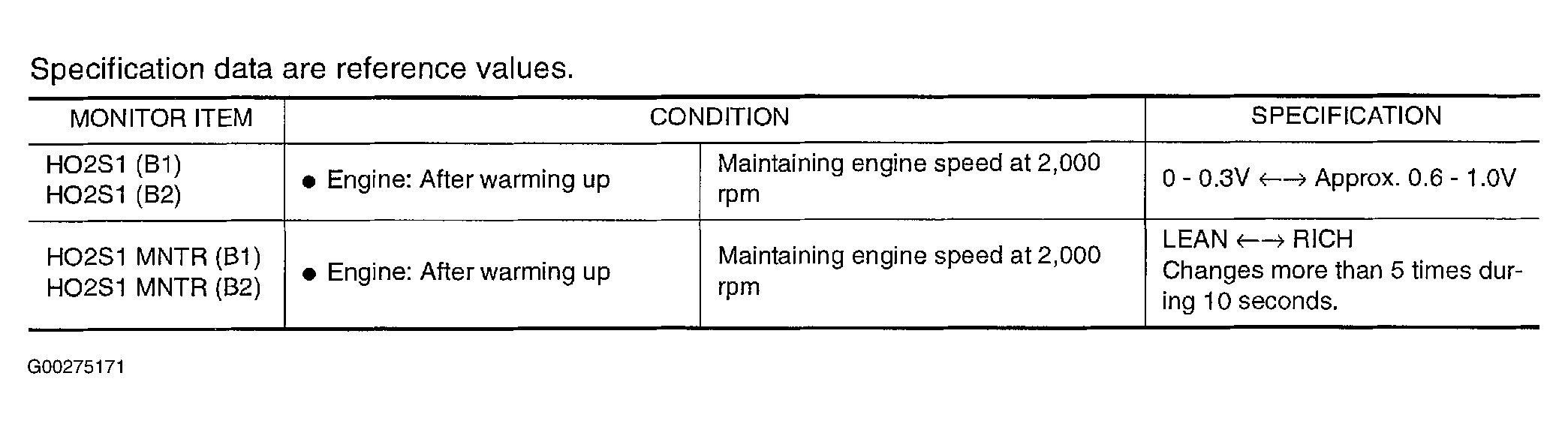

Fig 1: CONSULT-II Reference Value In Data Monitor Mode For DTC P1143: HO2S1 (3.5L)
G00275171Courtesy of NISSAN MOTOR CO., U.S.A.
