Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

ASCD Steering Switch

For component inspection, see Fig 1.

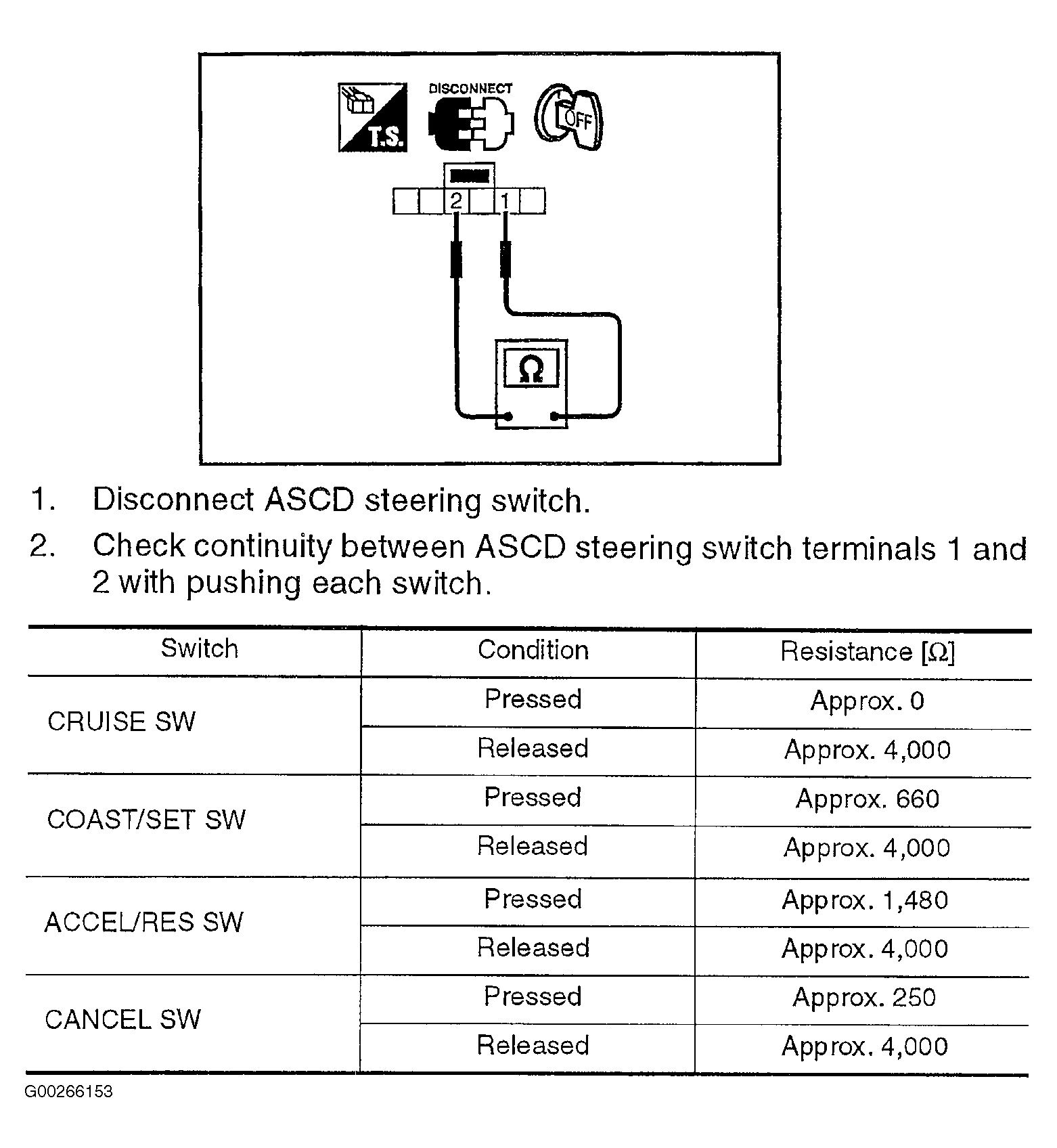

Fig 1: Component Inspection For DTC P1564: ASCD Steering Switch
G00266153Courtesy of NISSAN MOTOR CO., U.S.A.
