Component Inspection

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

ASCD Brake Switch, ASCD Clutch Switch & Stop Lamp Switch

For component inspection, see Fig 1.

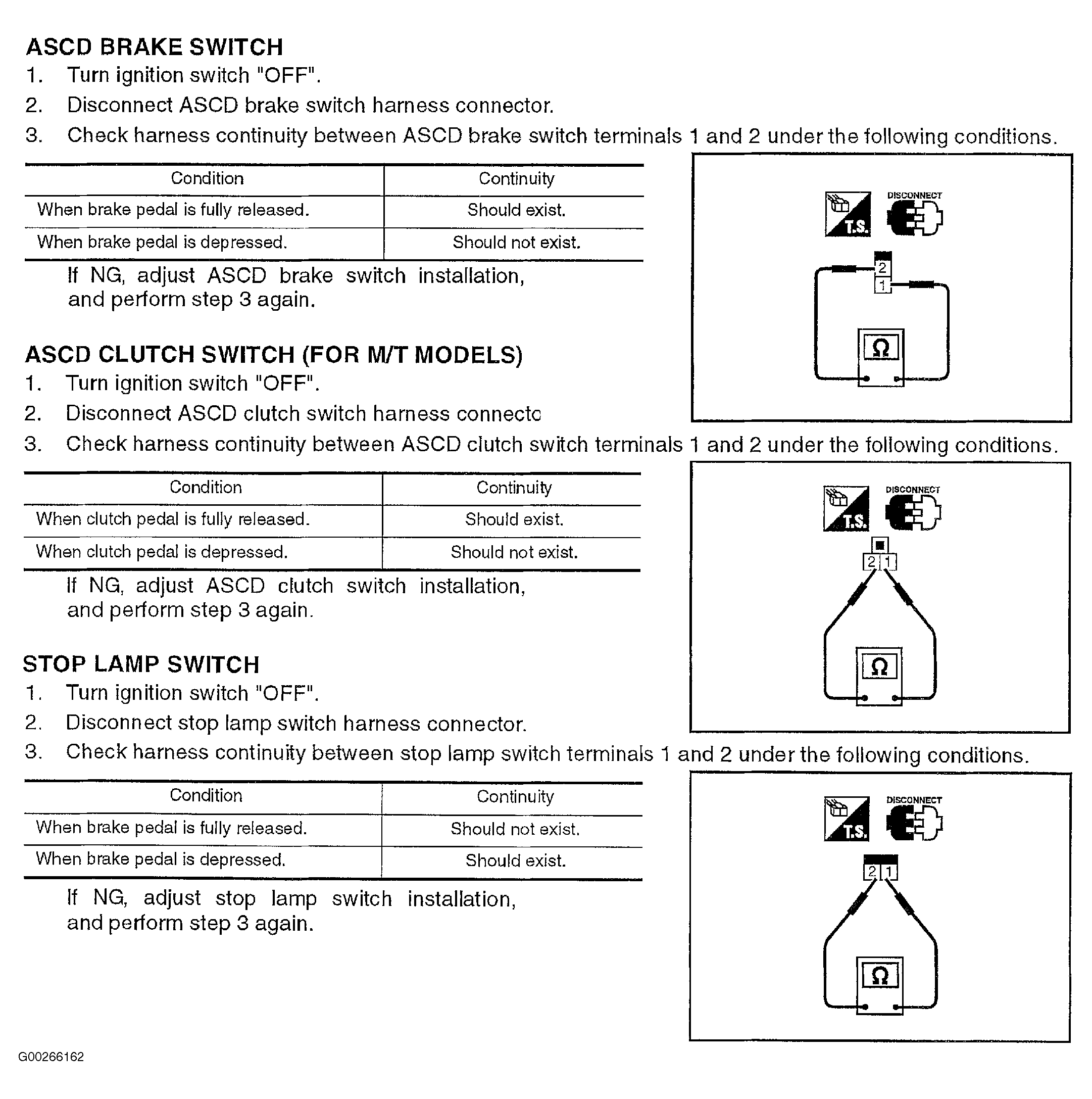

Fig 1: Component Inspection For DTC P1572
G00266162Courtesy of NISSAN MOTOR CO., U.S.A.
