Function Diagnosis: Lighting
WARNING:
This page is about a different variant/trim than selected.

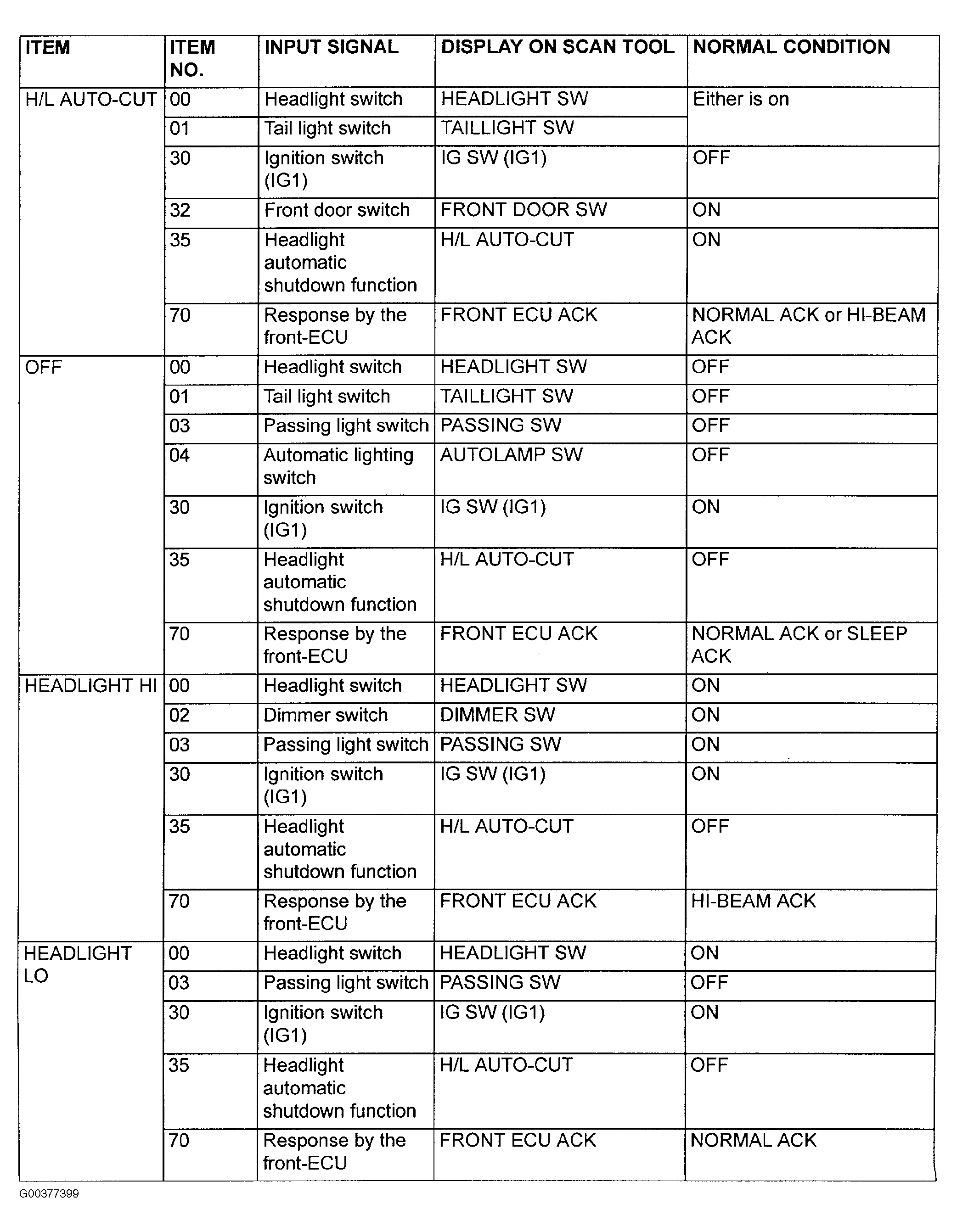

Fig 1: Function Diagnosis - Lighting (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

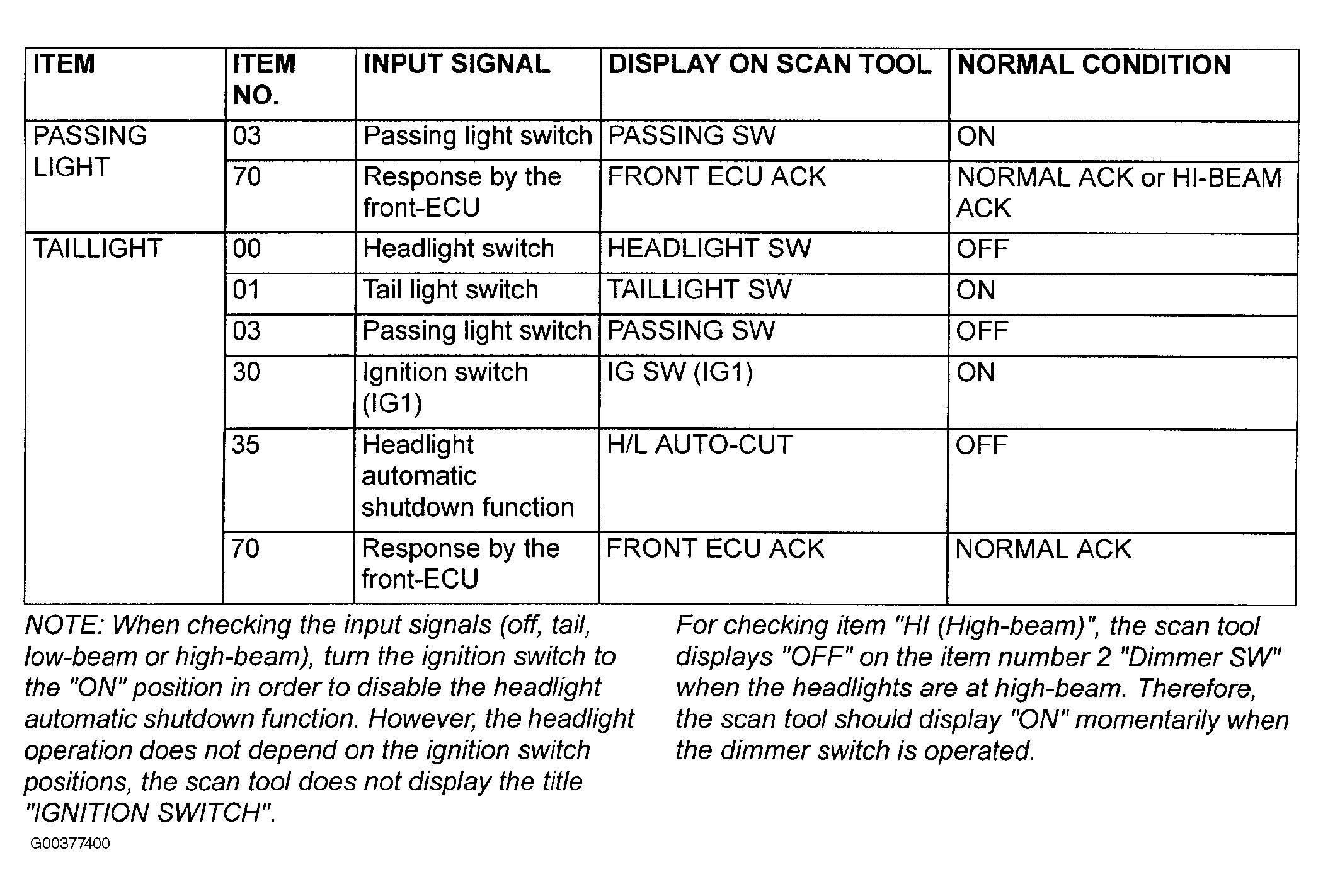

Fig 2: Function Diagnosis - Lighting (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
