Removal And Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: *: Indicates parts which should be temporarily tightened, and then fully tightened after installing the engine into the vehicle.

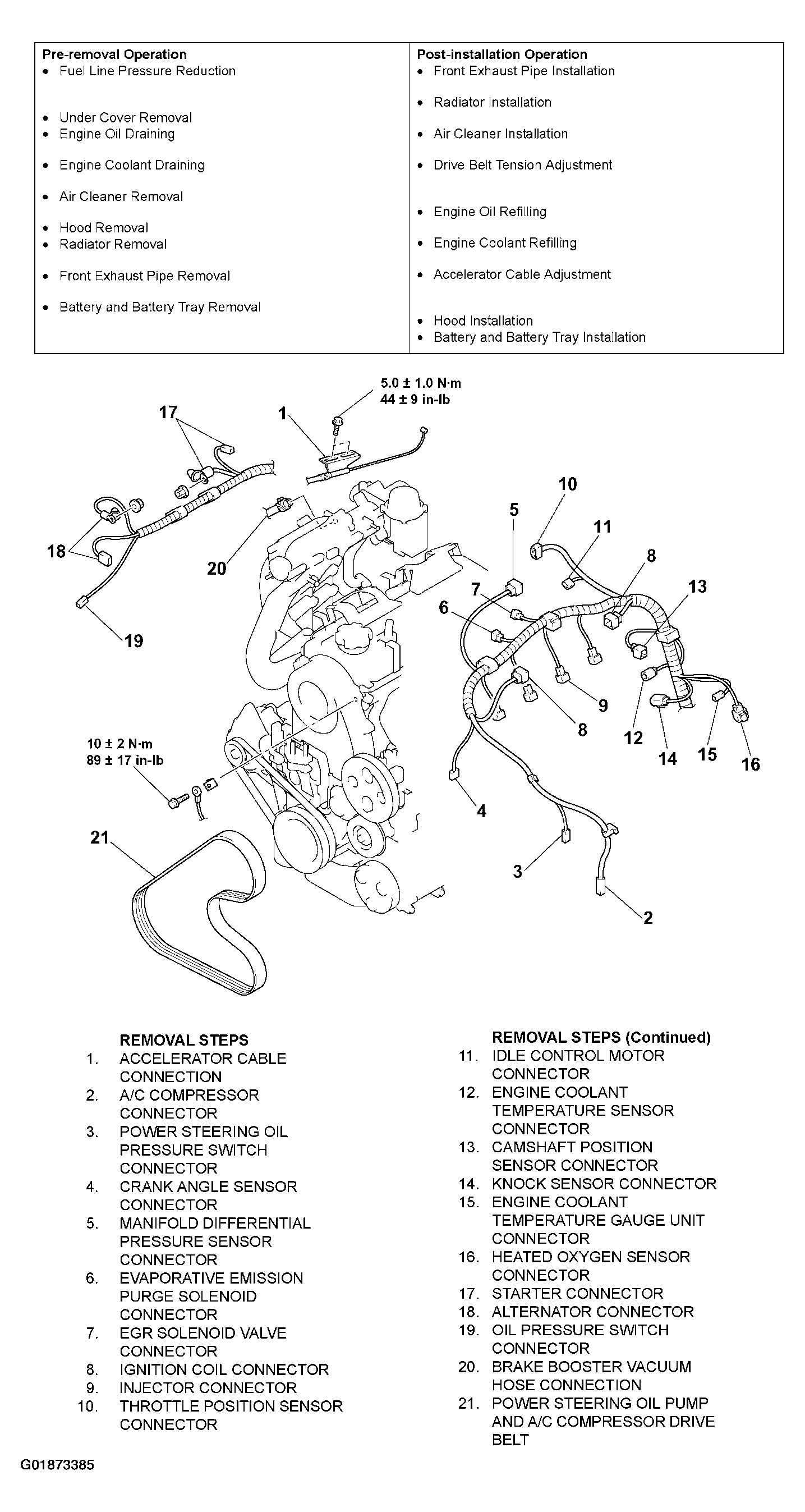

Fig 1: Removing & Installing Engine Assembly (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

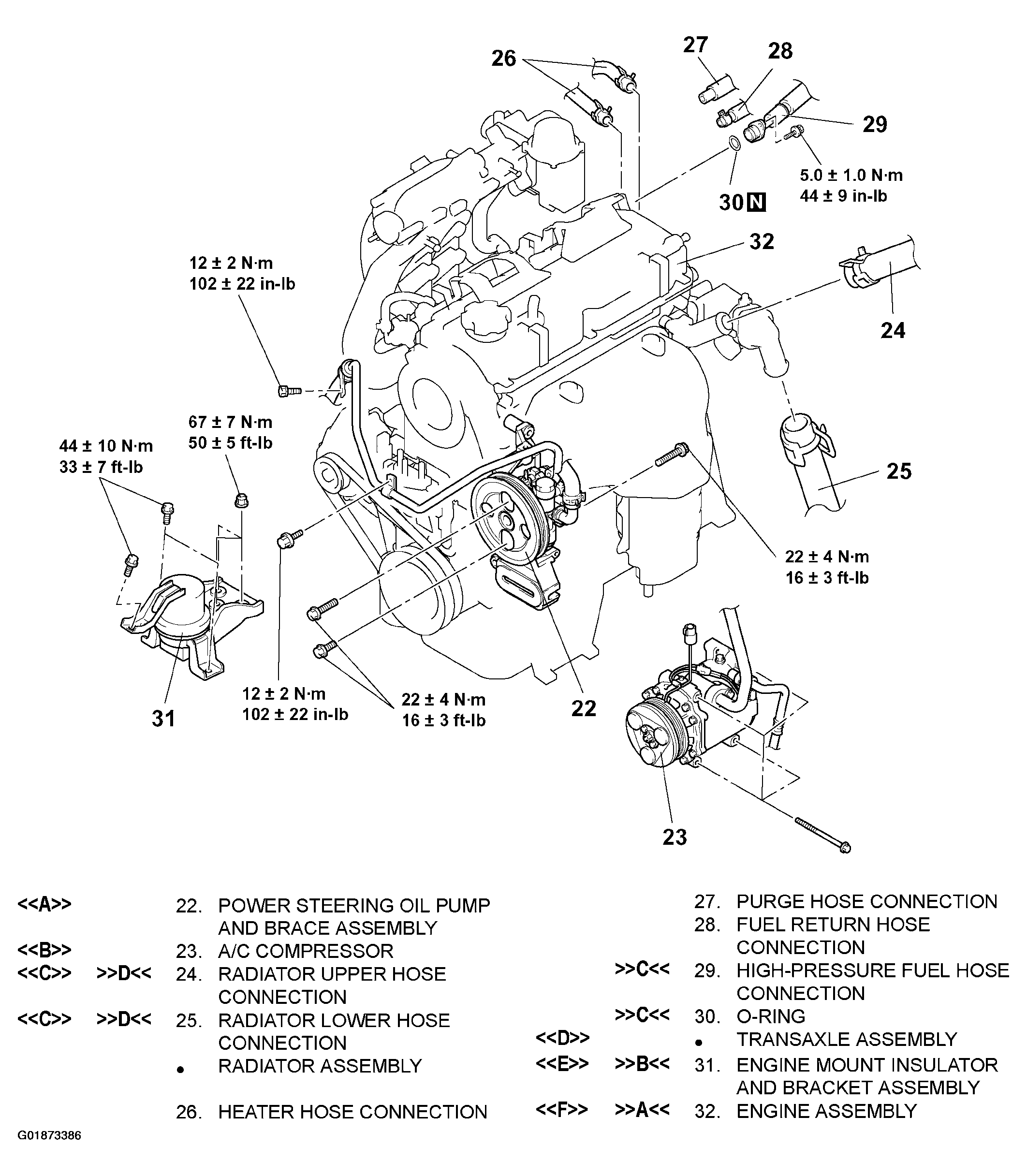

Fig 2: Removing & Installing Engine Assembly (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
