<< E >> Engine Mount Insulator And Bracket Assembly Removal

WARNING: This page is about a different variant/trim than selected.
  1. Support the engine with a floor jack.
  2. Remove special tools MB991895 which has attached when the transaxle assembly was removed.

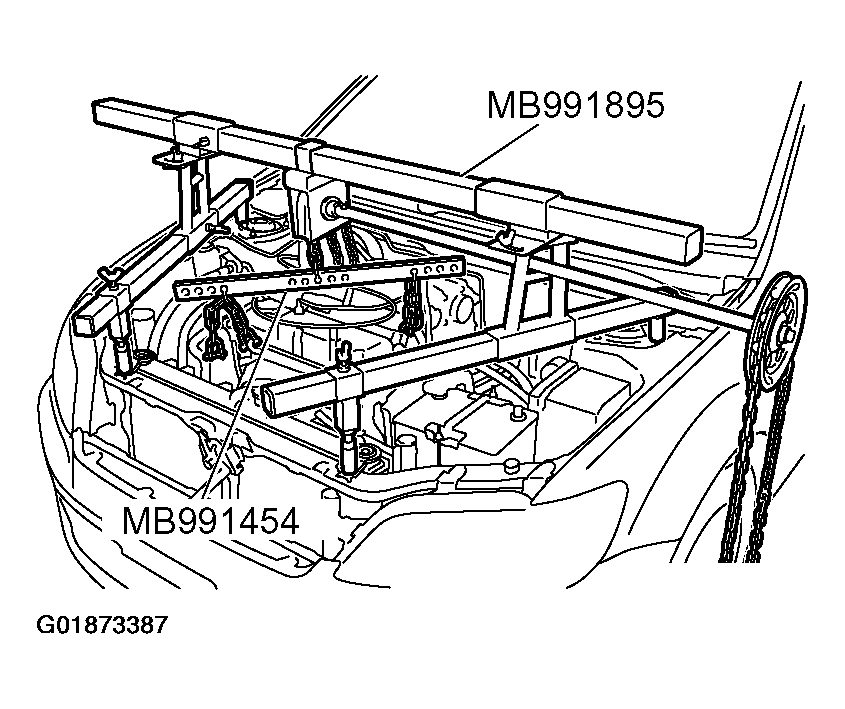

    Fig 1: Removing Special Tools (Used For Transaxle Assembly Removal)
    G01873387Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Hold the engine assembly with special tool MB991454 and chain block or similar tool.
  4. Place a garage jack against the engine oil pan with a piece of wood in between so as to not damage the oil pan. Jack up the engine so that the weight of the engine is no longer being applied to the engine mount insulator and bracket. Remove the engine mount insulator and bracket.

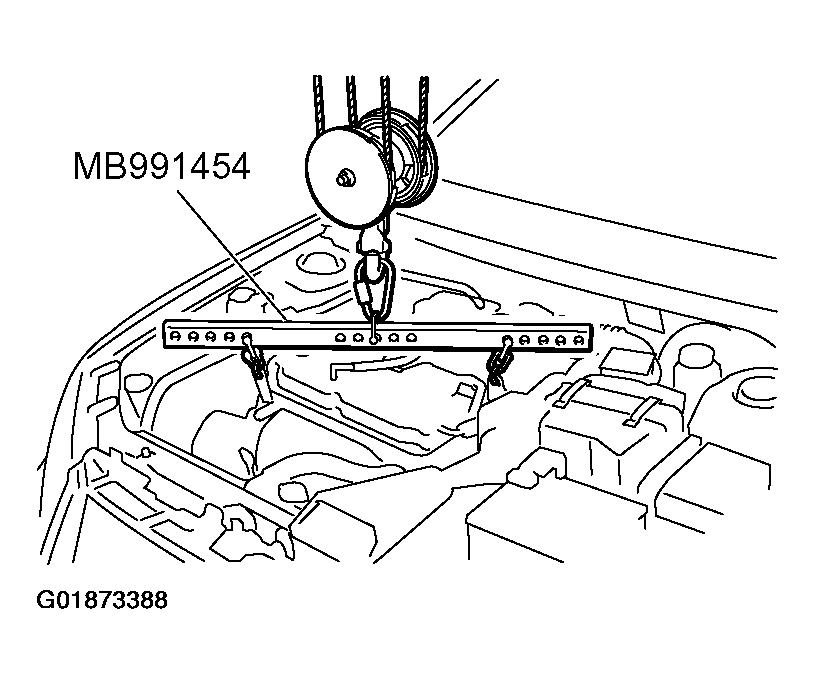

    Fig 2: Holding Engine Assembly With Special Tool And Chain Block
    G01873388Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
