Timing Belt Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
After installing the timing belt, try to rotate the camshaft sprocket in the reverse direction. Recheck to be sure that the belt is fully tensioned and that each timing mark is in the proper position.

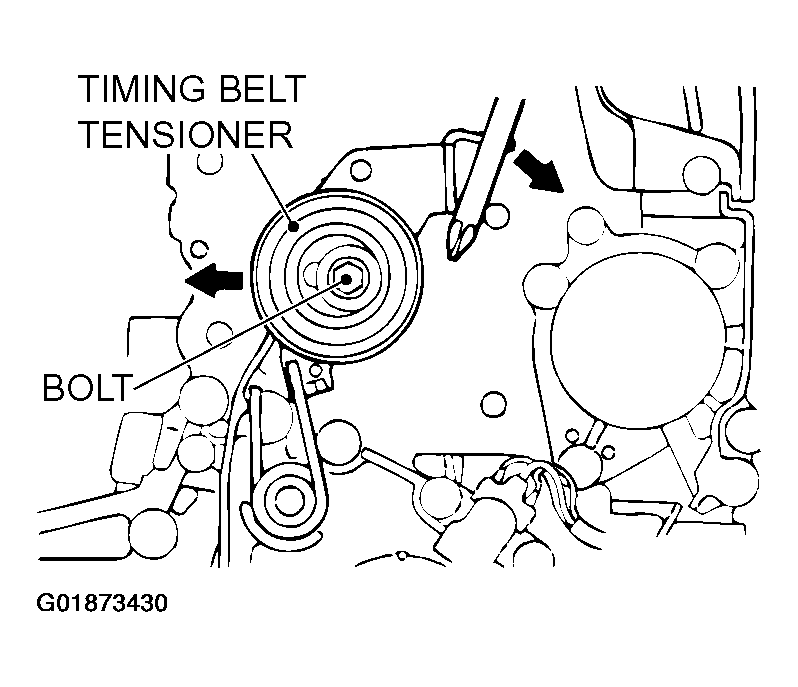

- With the timing belt tensioner pulley bolt loosened, use a screwdriver to pry the tensioner pulley as close to the engine mount as possible. Then temporarily tighten tensioner bolt.
- Align each of the camshaft and crankshaft sprocket timing marks.
- Install the timing belt in the following order, while marking sure that the tension side of the belt is not loose.
- Crankshaft sprocket
- Water pump sprocket
- Camshaft sprocket
- Tensioner pulley
