>> B << Crankshaft Bolt Installation

WARNING: This page is about a different variant/trim than selected.

Lock the flywheel or drive plate in position using the special tool MD998781 shown in the illustration.

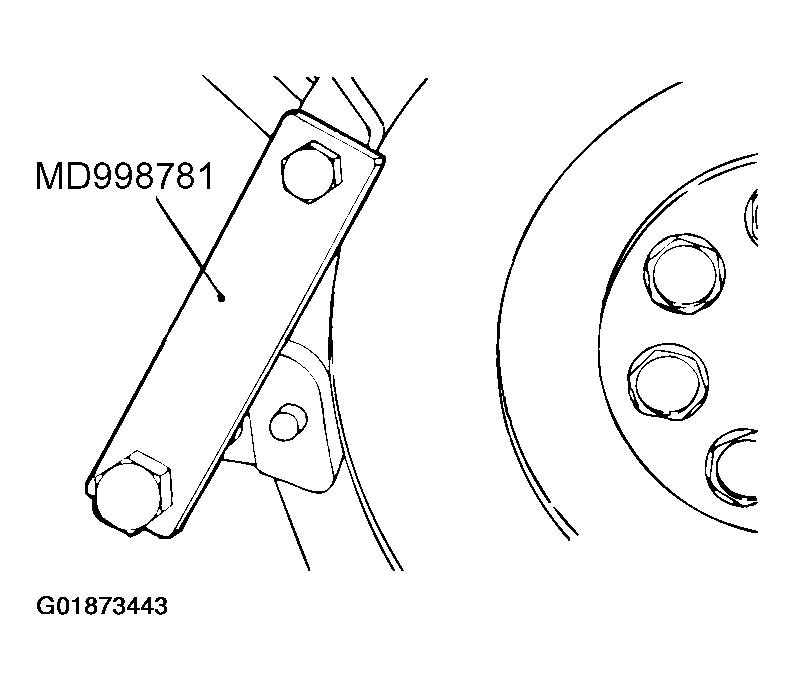

Fig 1: Locking Flywheel
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Clean the bolt hole in crankshaft bolt and crankshaft pulley's seating surface.
Degrease the cleaned seating surface of the crankshaft pulley.
Install the crankshaft pulley.
Apply oil to the threads of crankshaft bolt and the outer surface of washer.

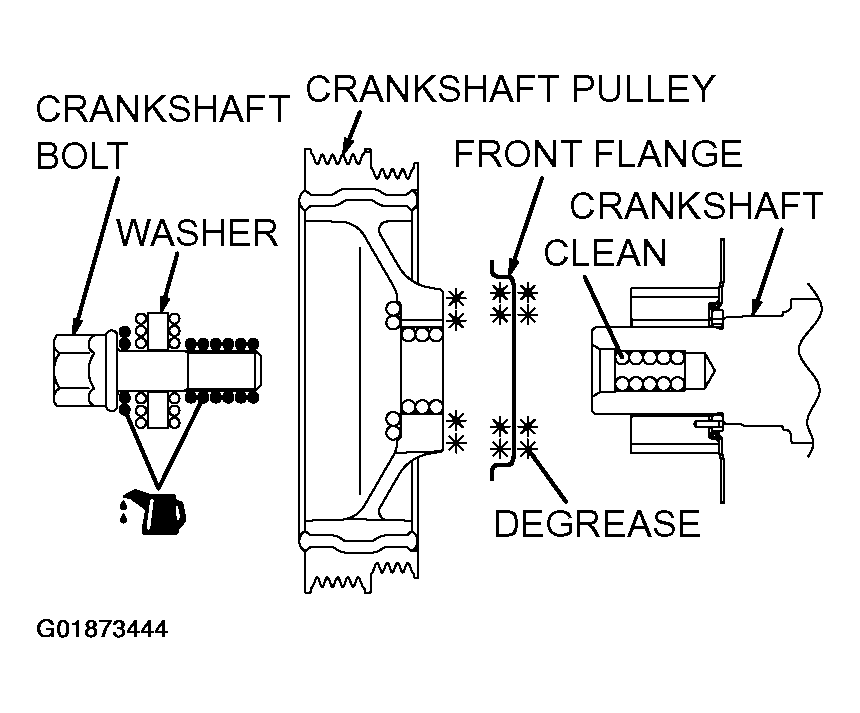

Fig 2: Applying Oil To The Threads Of Crankshaft Bolt And The Outer Surface Of Washer
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tighten the crankshaft bolt to the specified torque.
1. Tightening torque: 182 +/- 4 N.m (134 +/- 3 ft-lb)
