Removal And Installation
WARNING:
This page is about a different variant/trim than selected.

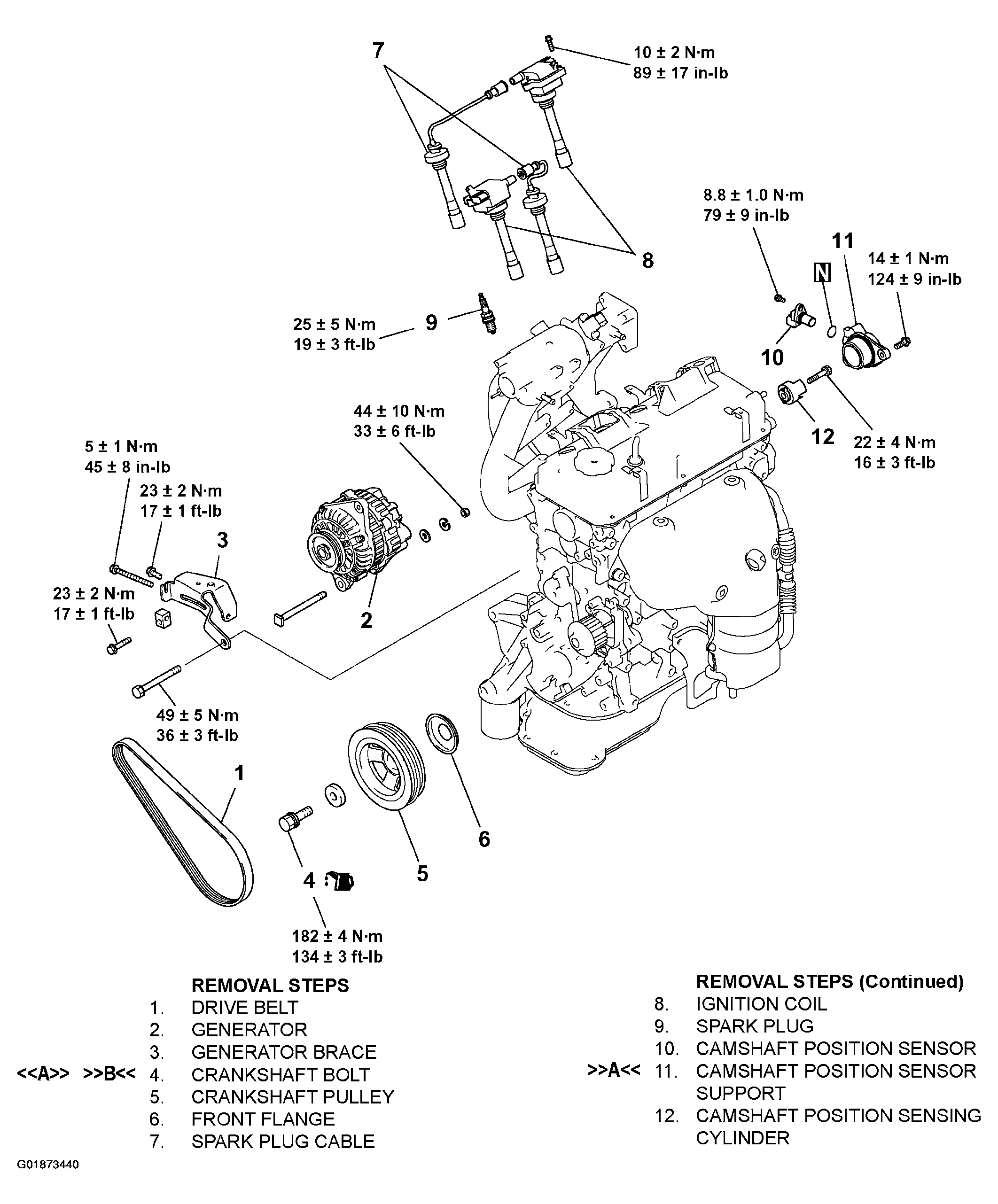

Fig 1: Exploded View Of Generator And Ignition System Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Required Special Tool:
MD998781: Flywheel Stopper
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
