>> B << Oil Ring Installation

WARNING: This page is about a different variant/trim than selected.

Fit the oil ring spacer into the piston ring groove. Then fit the upper and lower side rails.
NOTE: The spacer and side rails may be fitted in either direction. No distinction is made between top and bottom.

NOTE: Spacer and side rail sizes are color-coded as follows: To Install a side rail, fit one end of the rail into the groove, then press the rest of the rail into position by hand as shown.

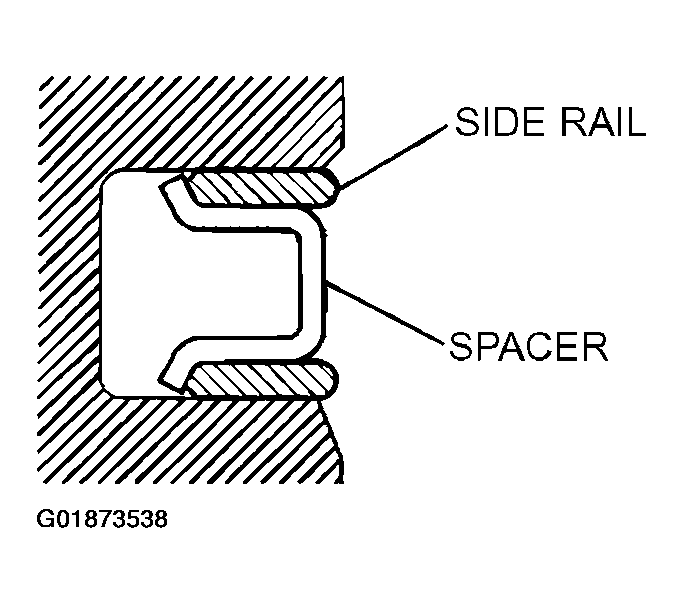

Fig 1: Locating Spacer And Side Rail
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

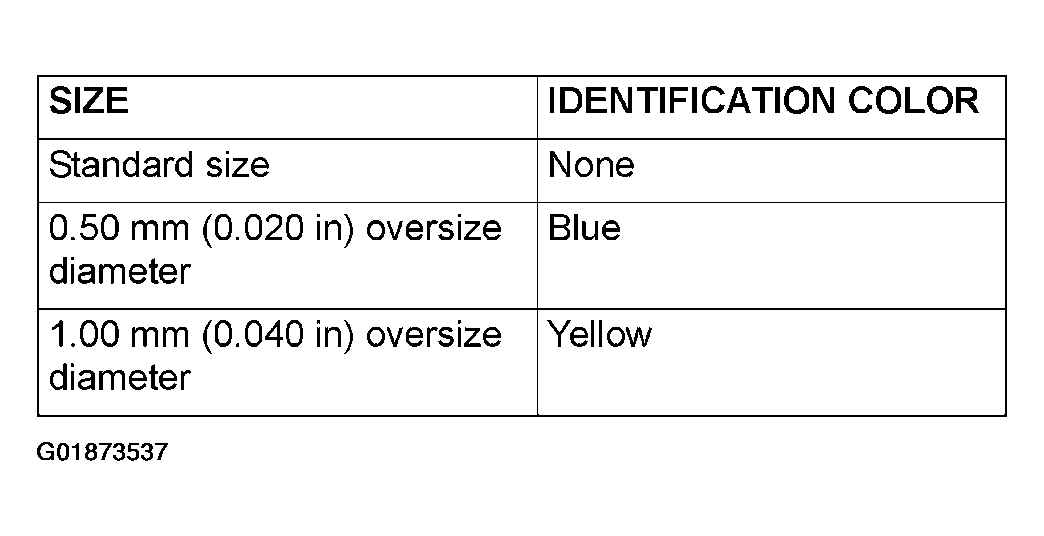

Fig 2: Spacer And Side Rail Identification Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Do not fit side rails using a piston ring expander since they may break.
After installing the side rails, check that they more smoothly in both directions.

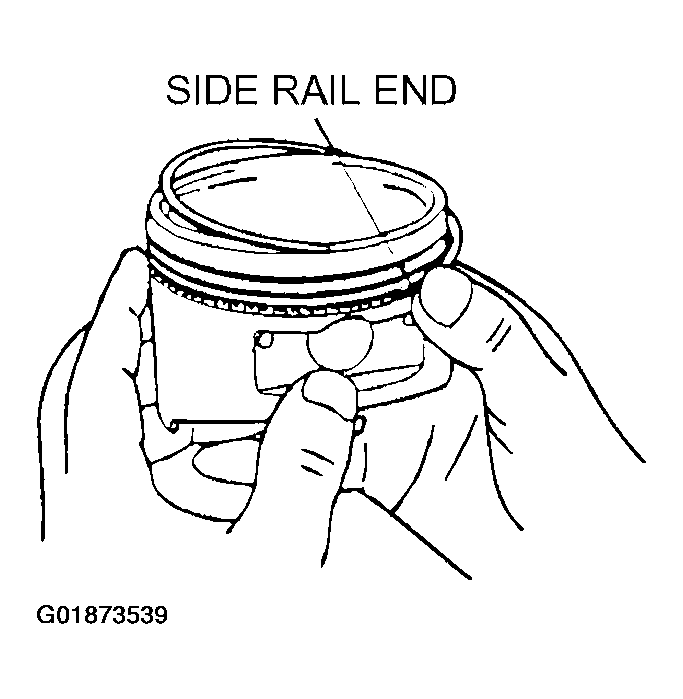

Fig 3: Locating Side Rail End
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
