>> E << Connecting Rod Bearing Installation

When replacing the bearings and/or crankshaft, read off the identification mark on the crankshaft (as illustrated), and select a bearing according to the following table.

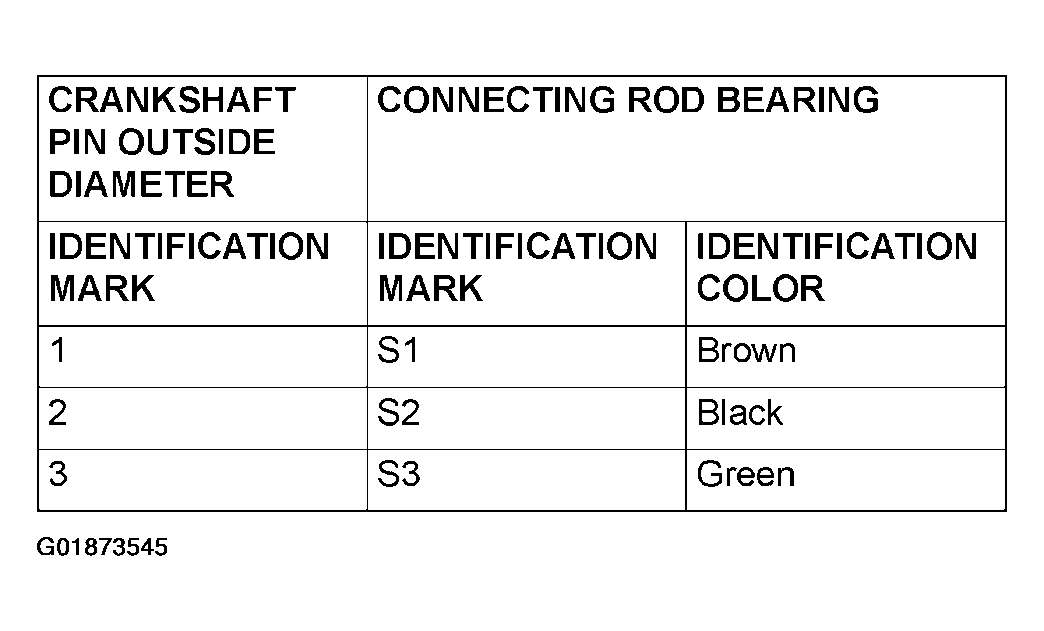

Fig 1: Connecting Rod Bearing Selection Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

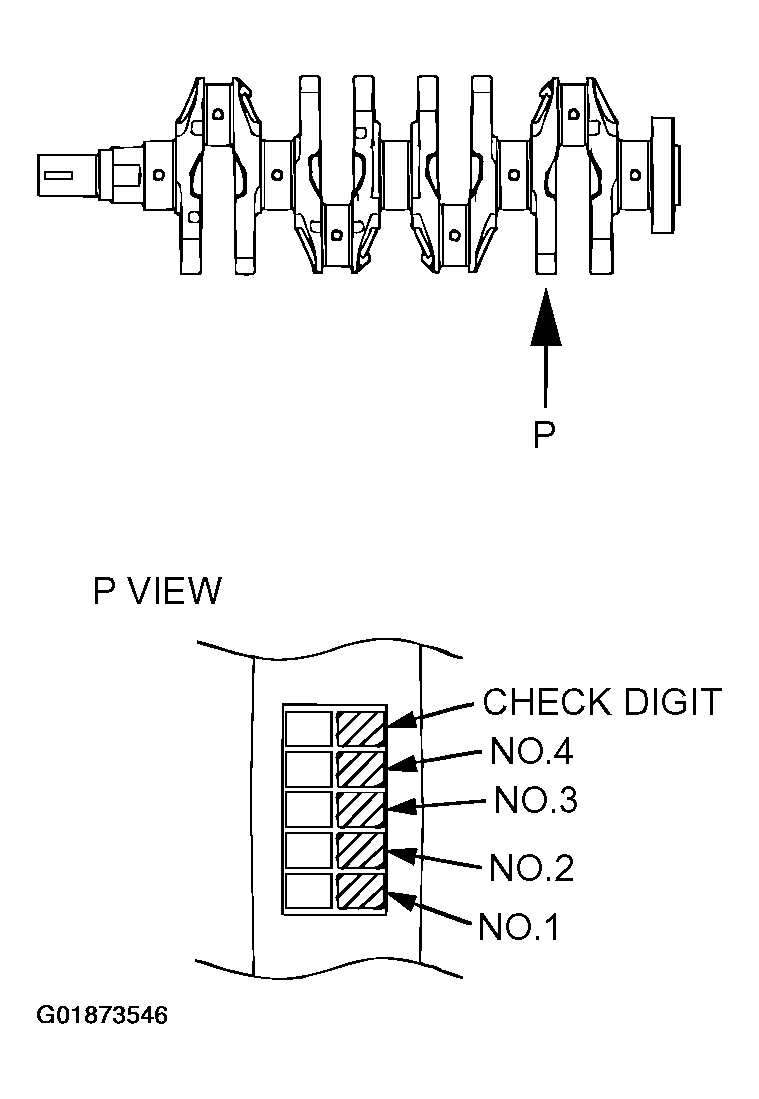

Fig 2: Identifying Crankshaft Identification Mark

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

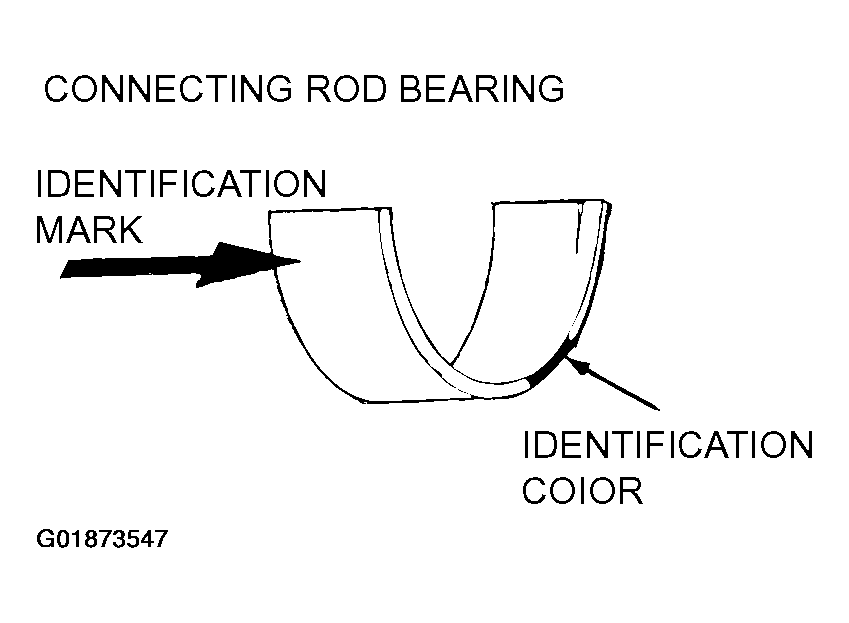

Fig 3: Identifying Connecting Rod Bearing Identification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
