>> F << Connecting Rod Cap Installation
WARNING: This page is about a different variant/trim than selected.

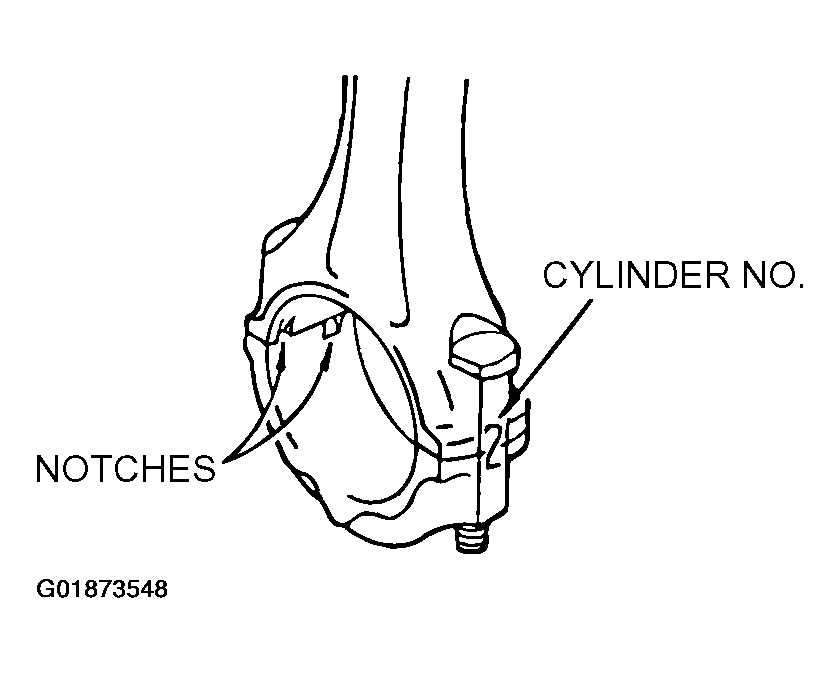

- Aligning the marks made during disassembly, fit the bearing cap onto the connecting rod. If the connecting rod is new and has no index mark, ensure that the bearing locking notches are both on the same side.

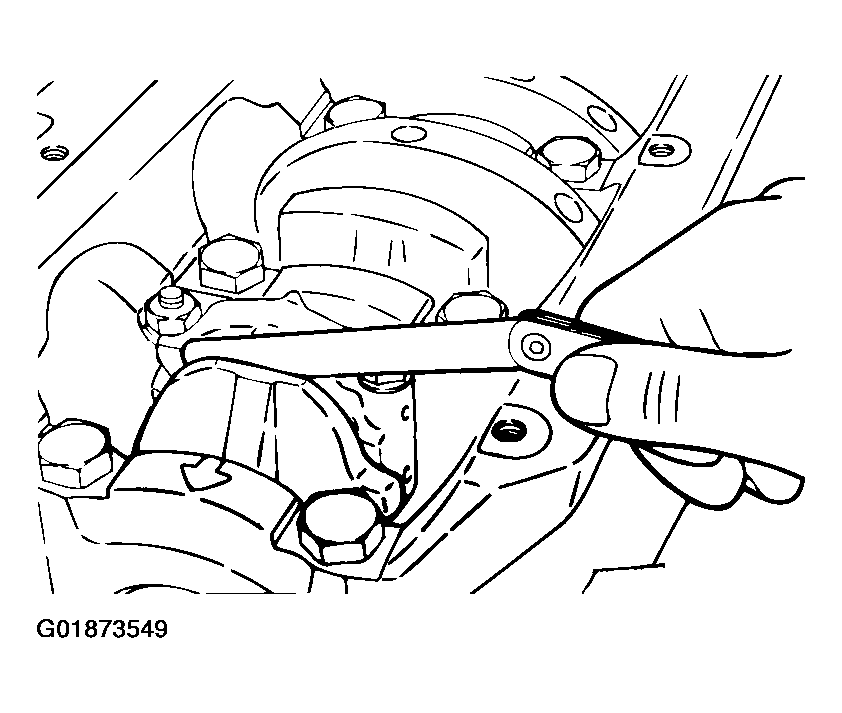

- Check that the connecting rod big end side clearance confirms with specification.
- Standard value: 0.10 - 0.25 mm (0.0039 - 0.0098 inch)
- Limit: 0.4 mm (0.016 inch)
