<< A >> Connecting Rod Cap Removal

WARNING: This page is about a different variant/trim than selected.
  1. Mark the cylinder number on the side of the connecting rod big end for correct reassembly.
  2. Keep the removed connecting rods, caps, and bearings in order according to the cylinder number.

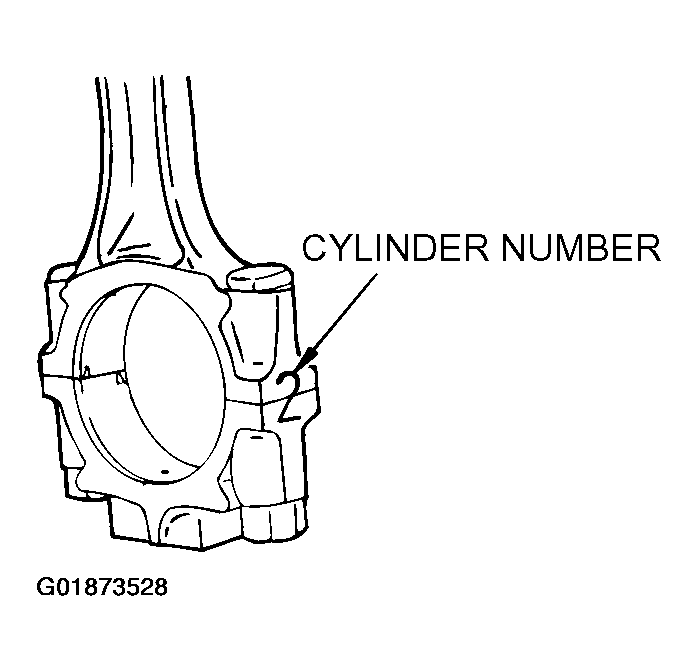

    Fig 1: Marking Cylinder Number On Side Of Connecting Rod Big End
    G01873528Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
