Fan Control Relay Continuity Check

WARNING: This page is about a different variant/trim than selected.

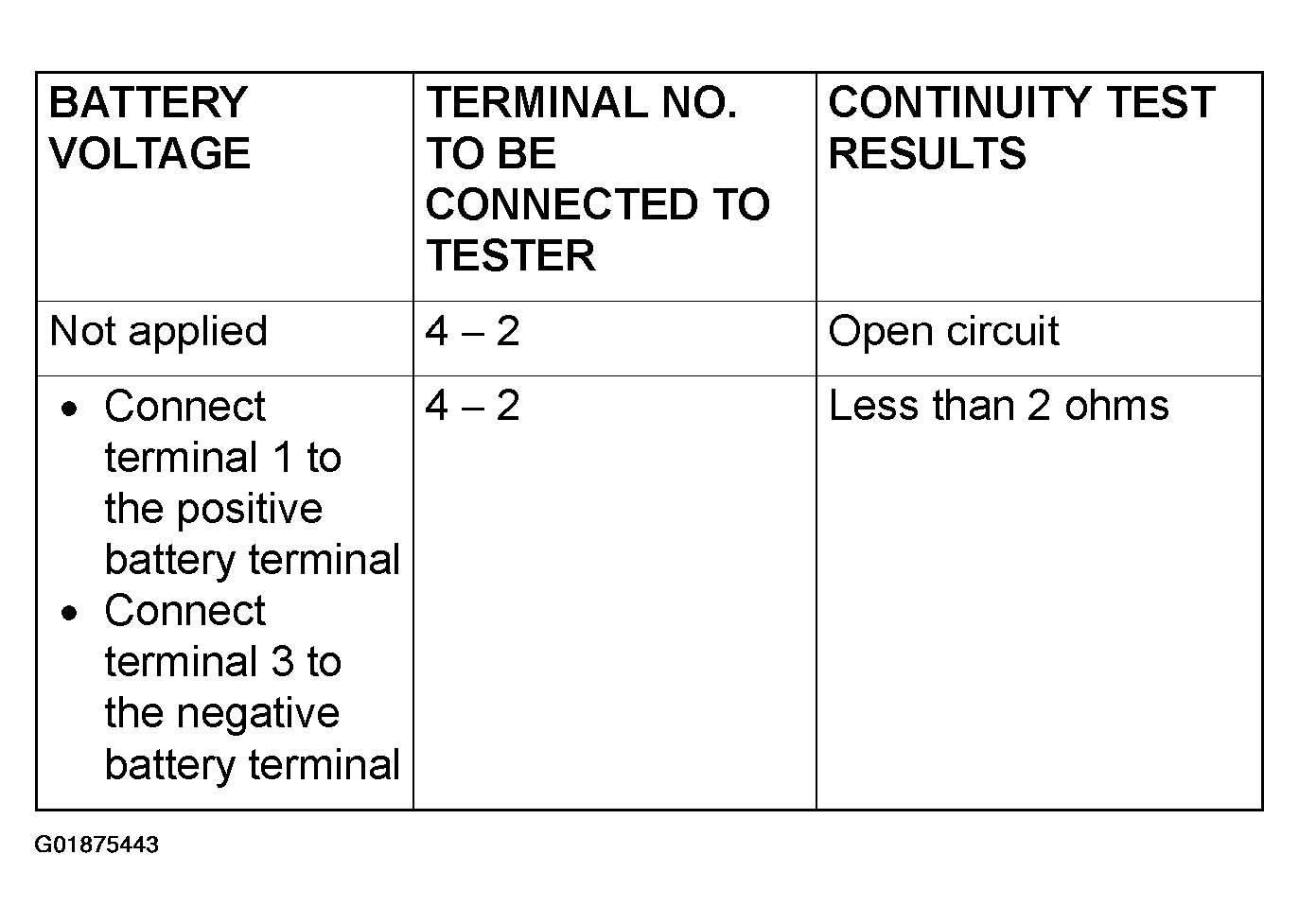

Fig 1: Fan Control Relay Continuity Chart
G01875443Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

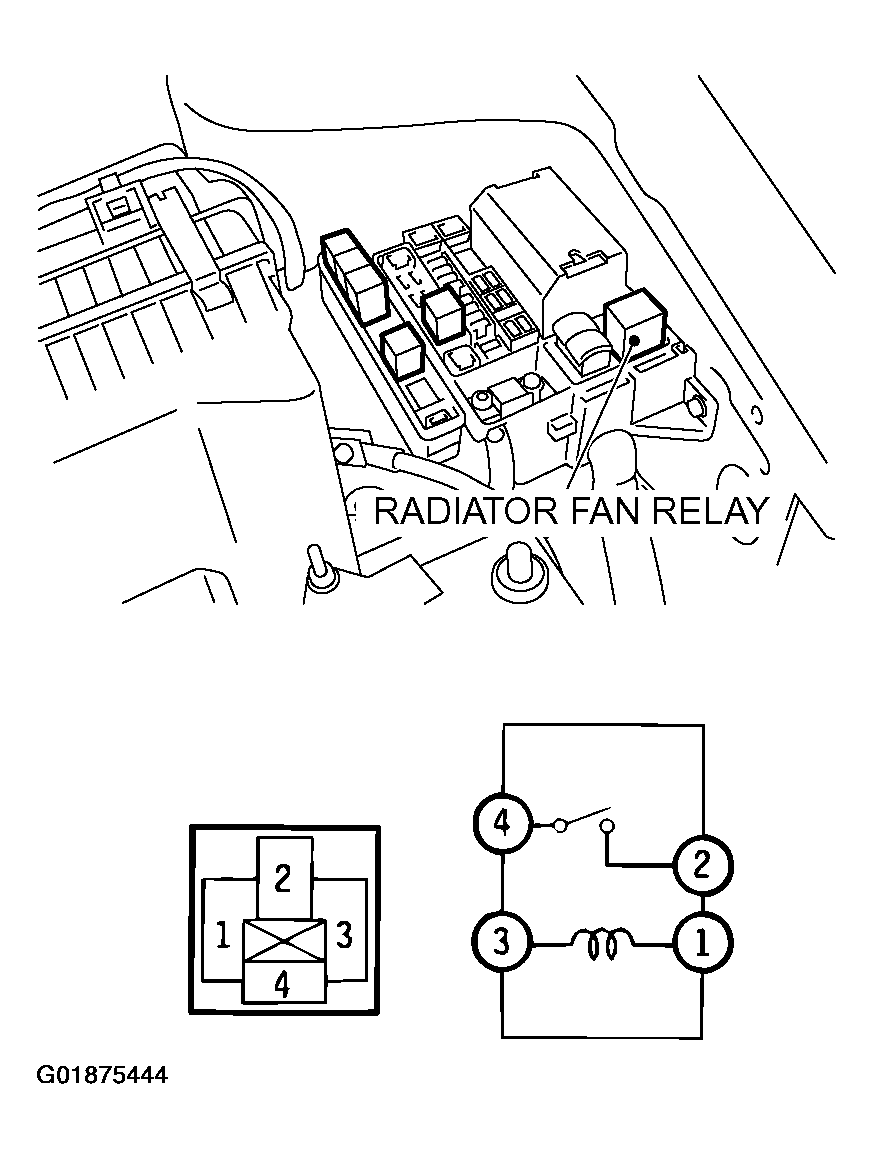

Fig 2: Checking Fan Control Relay Continuity
G01875444Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
