Radiator Fan Motor Check

WARNING: This page is about a different variant/trim than selected.

Check to be sure that the radiator fan motor operates when battery voltage is applied to terminals 1 and 2.

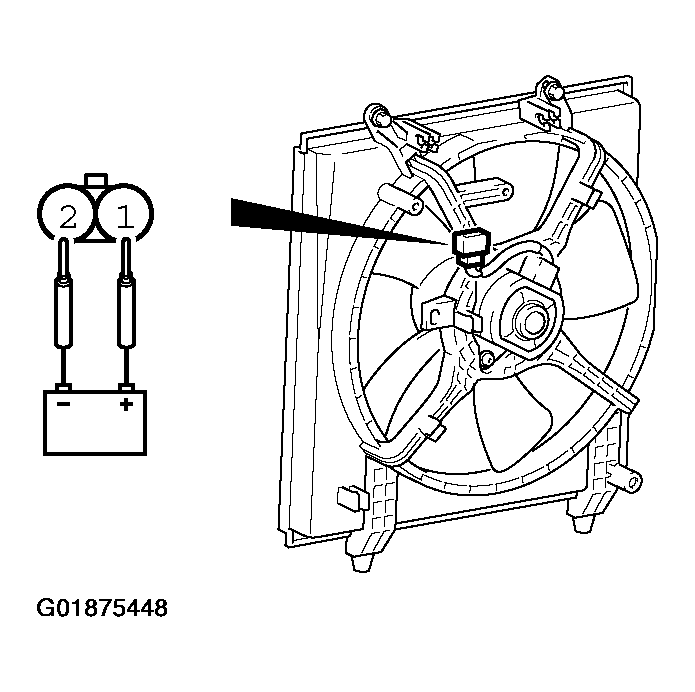

Fig 1: Checking To Be Sure That Radiator Fan Motor Operates When Battery Voltage Is Applied To Terminals 1 And 2

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
