>A<< Shift Lock Cable (Selector Lever Side) Installation

WARNING: This page is about a different variant/trim than selected.
  1. Shift the selector lever in the "P" position.
  2. Fasten the shift lock cable at the position where the end of the shift lock cable is positioned above the red marking on the lock cam.

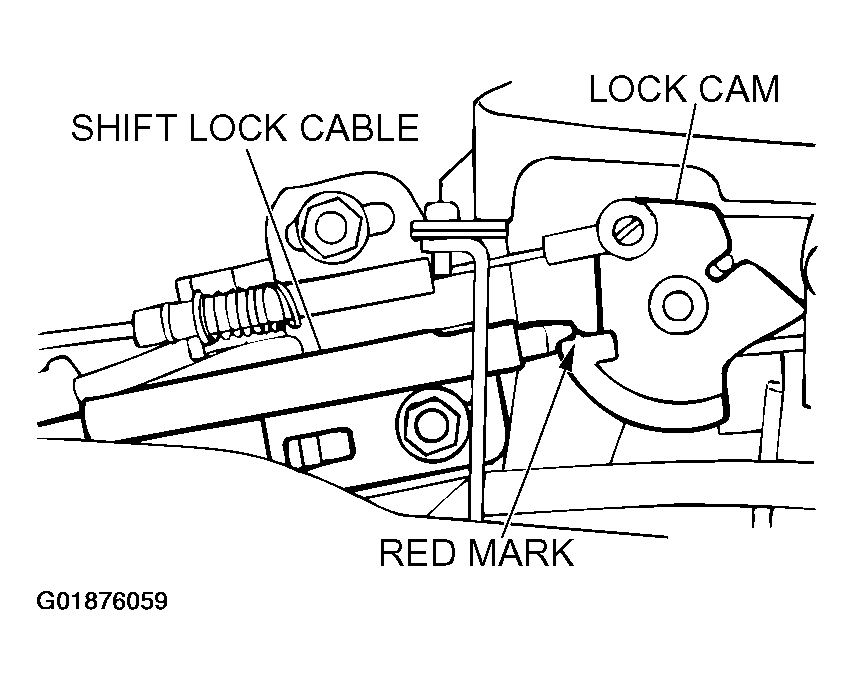

    Fig 1: Installing Shift Lock Cable (Selector Lever Side)
    G01876059Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Check the operation of the selector lever. (Refer to SELECTOR LEVER OPERATION CHECK  .)
