Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: When removing and installing the transaxle control cable and shift lock cable unit, be careful not to hit the SRS-ECU.

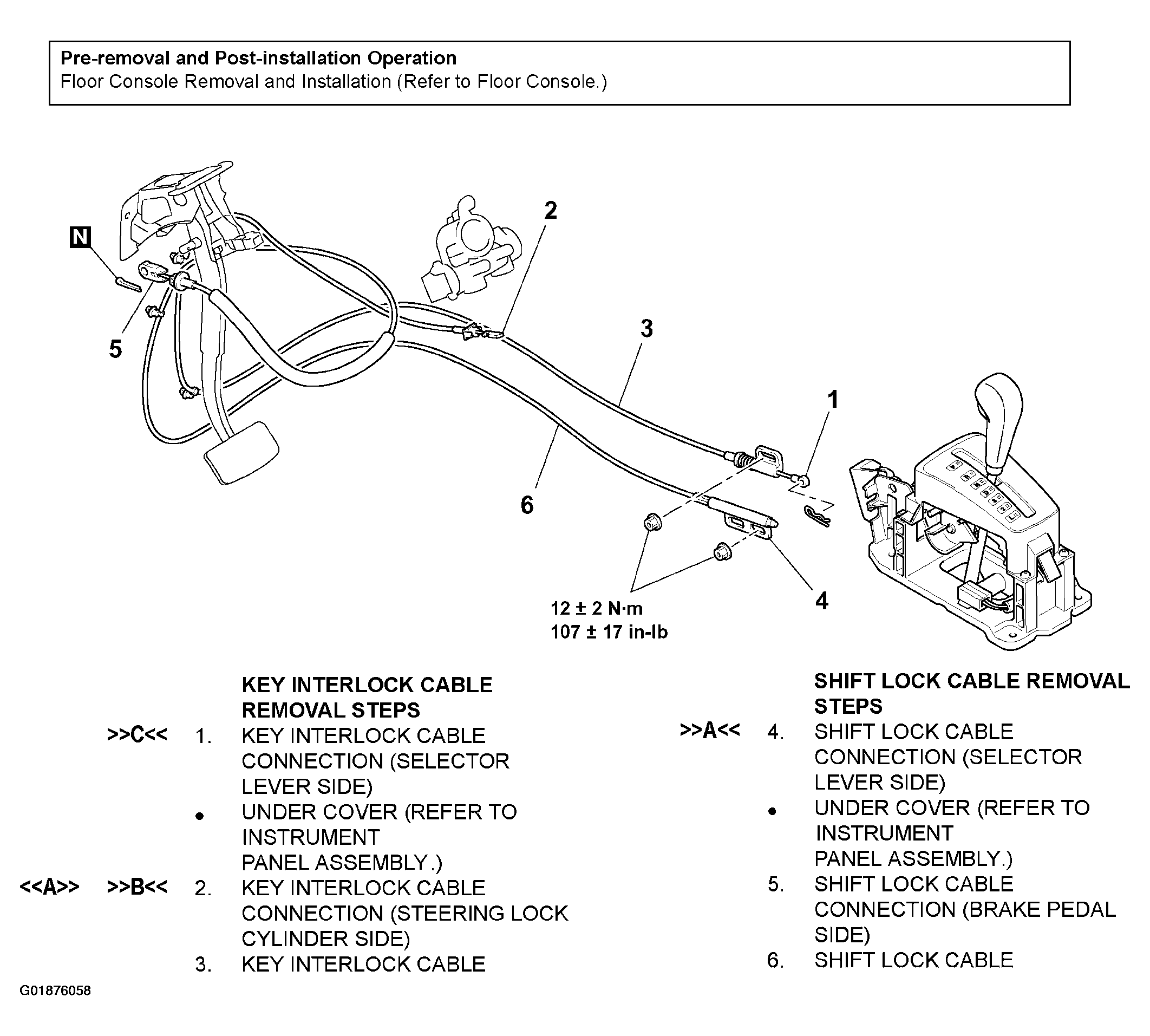

Fig 1: Removing/Installing A/T Key Interlock & Shift Lock Mechanism
G01876058Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
