A/T Control Relay Check

WARNING: This page is about a different variant/trim than selected.

Remove the A/T control relay.

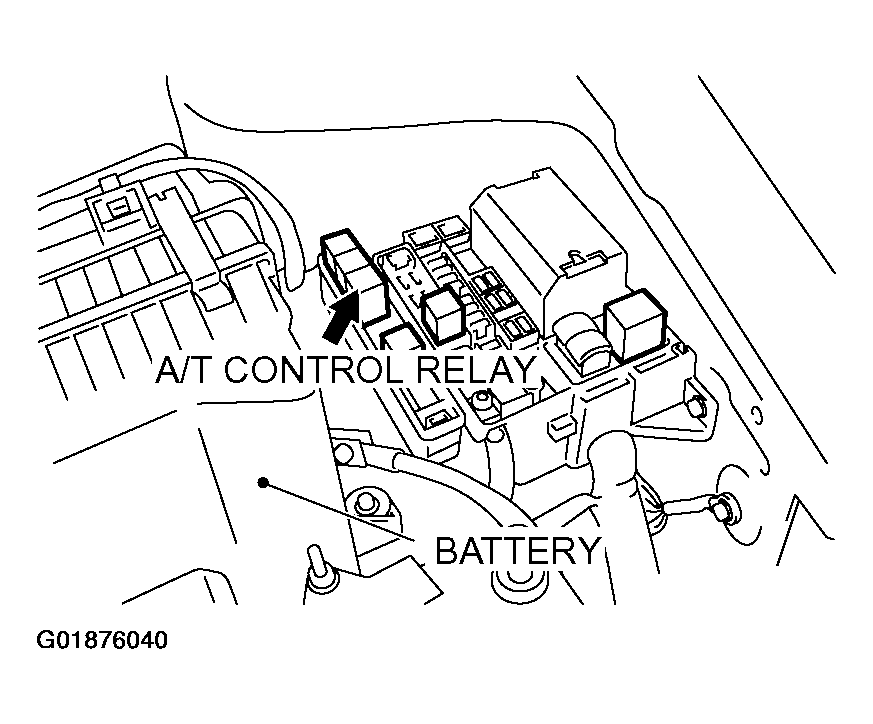

Fig 1: Removing A/T Control Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Use jumper wires to connect A/T control relay terminal 3 to the negative battery terminal and terminal 2 to the positive battery terminal.
Check for continuity between A/T control relay terminals 1 and 4 when the jumper wires are connected to and disconnected from the battery.

Fig 2: A/T Control Relay Check Continuity Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

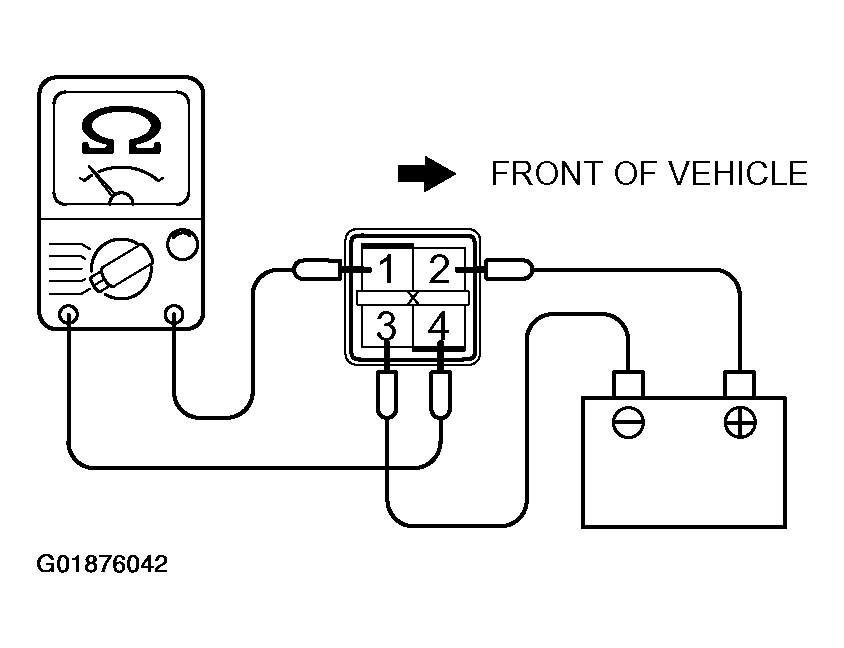

Fig 3: Checking Continuity Between A/T Control Relay Terminals 1 & 4
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If there is any problem with the A/T control relay, replace it.
