A/T Fluid Temperature Sensor Continuity Check

WARNING: This page is about a different variant/trim than selected.

Remove the A/T fluid temperature sensor.
Measure the resistance between terminals 1 and 2 of the A/T fluid temperature sensor connector.

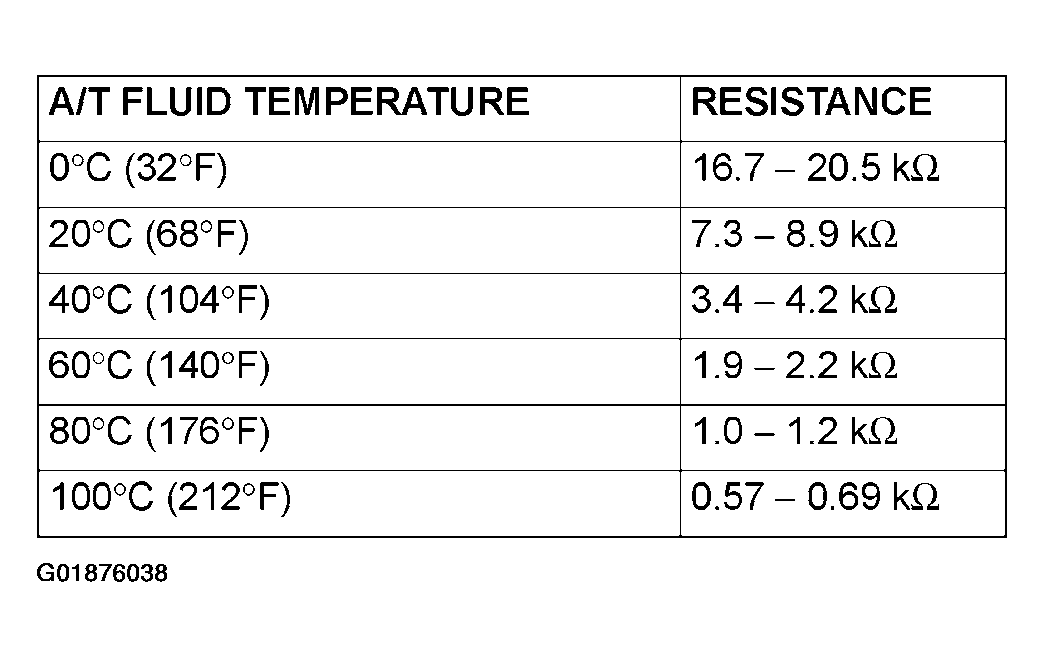

Fig 1: A/T Fluid Temperature Sensor Continuity Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

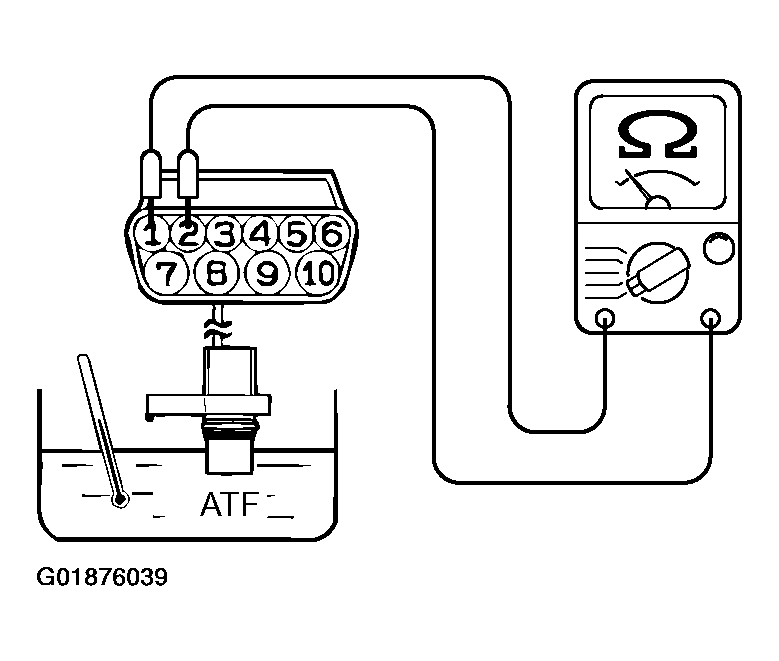

Fig 2: Measuring Resistance Between Terminals 1 & 2
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If the A/T fluid temperature sensor resistance is outside the specified range and the "N" range indicator light is flashing, replace the A/T fluid temperature sensor.
NOTE: The "N" range indicator light on the combination meter flashes when the temperature reaches approximately 125°C (257°F) or greater, and then stops flashing when the temperature drops below approximately 115°C (238°F).
