Park/Neutral Position Switch Continuity Check
WARNING:
This page is about a different variant/trim than selected.

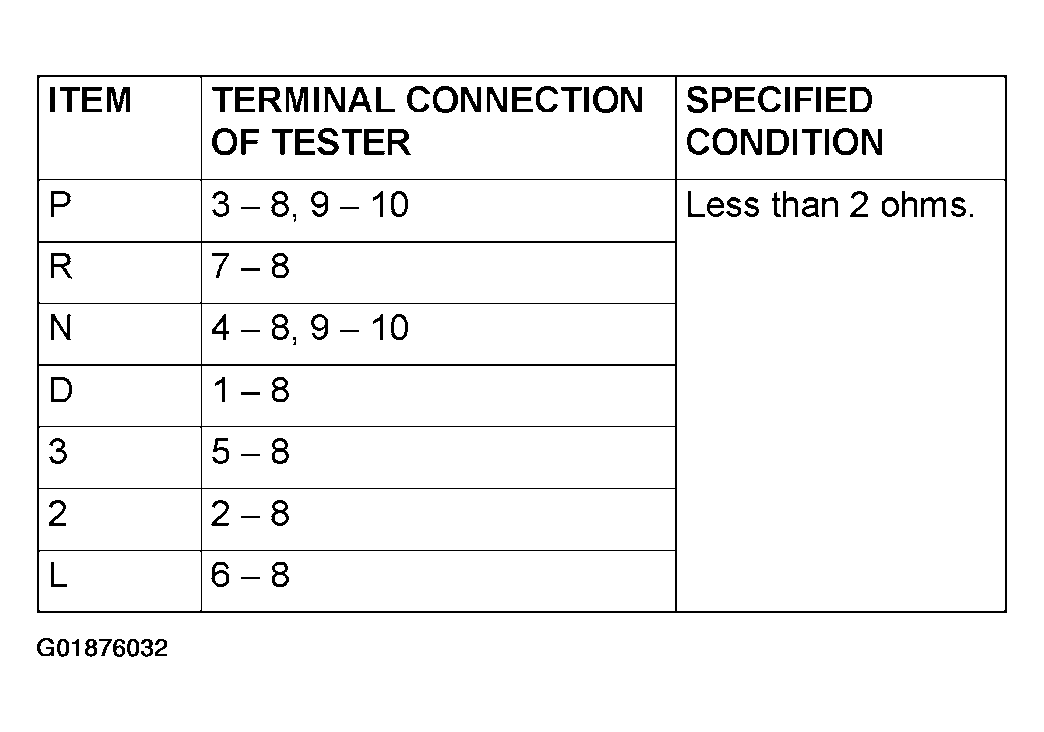

Fig 1: Park/Neutral Position Switch Resistance Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

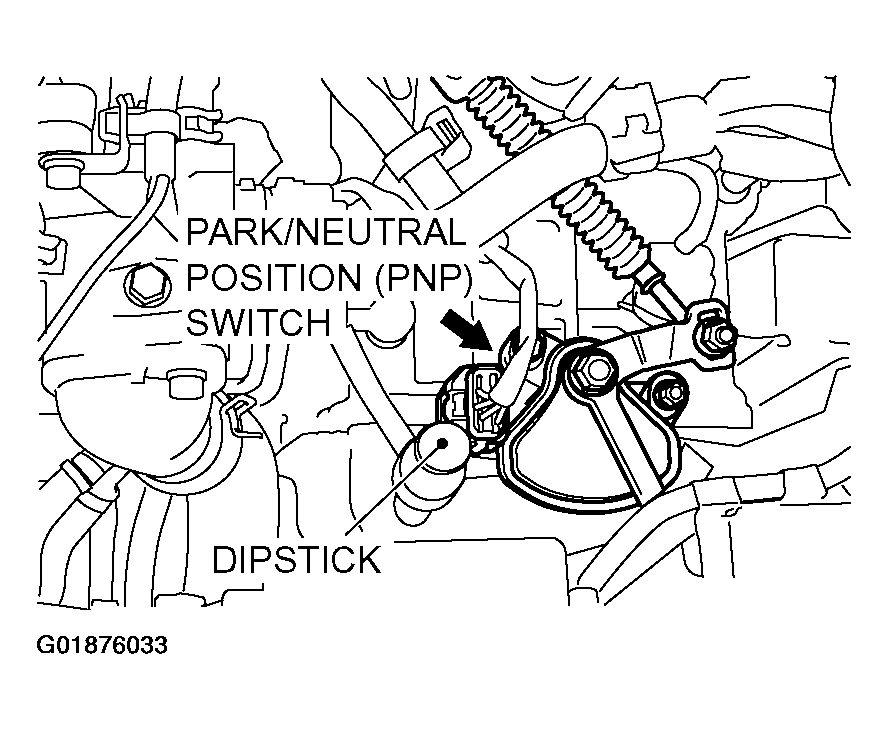

Fig 2: Identifying Park/Neutral Position Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

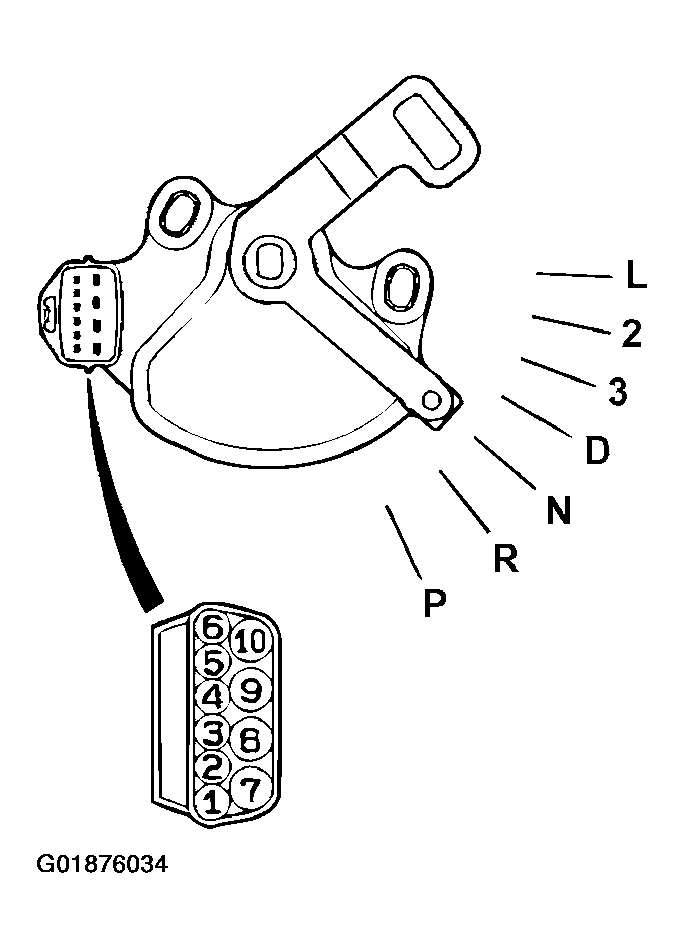

Fig 3: Checking Park/Neutral Position Switch Continuity
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
