>> A << Shift Lock Cable (Selector Lever Side) Installation

WARNING: This page is about a different variant/trim than selected.
  1. Shift the selector lever to the "P" position.
  2. Fasten the shift lock cable at the position where the end of the shift lock cable is above the red line on the lock cam.

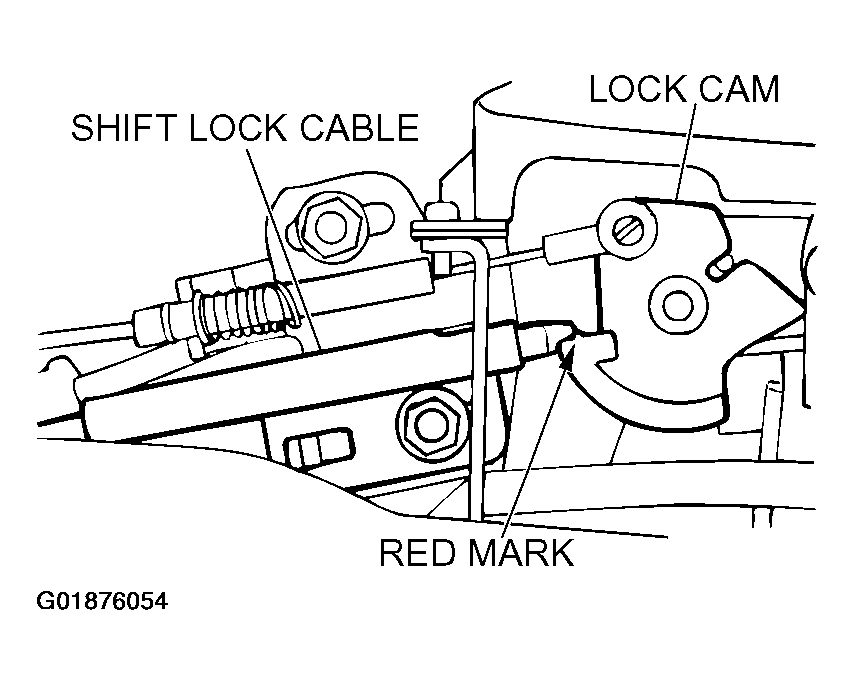

    Fig 1: Installing Shift Lock Cable (Selector Lever Side)
    G01876054Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
