Power Window Relay Continuity Check

WARNING: This page is about a different variant/trim than selected.

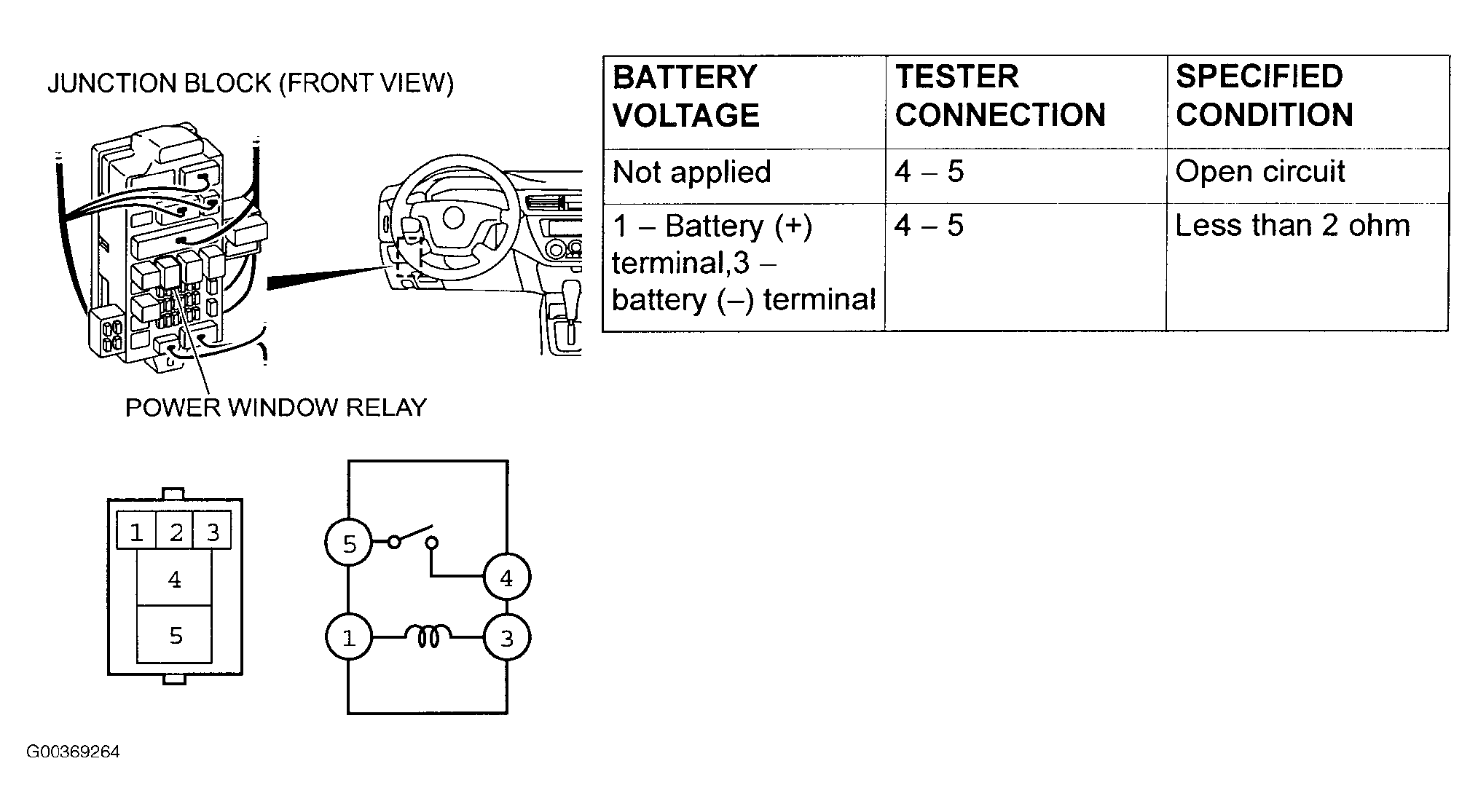

Fig 1: Checking Power Window Relay Continuity
G00369264Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
