Main Switch

WARNING: This page is about a different variant/trim than selected.

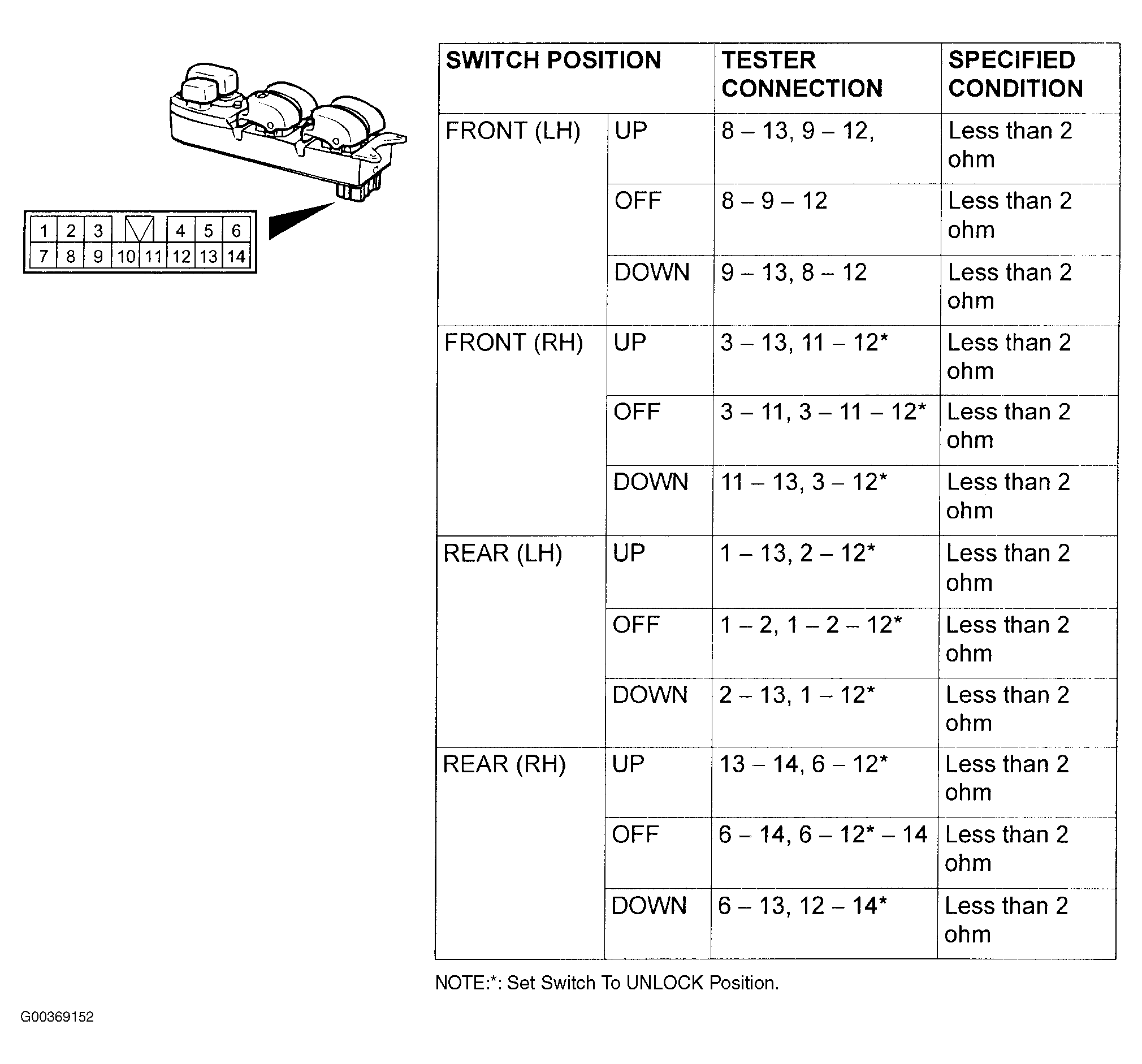

Fig 1: Checking Power Window Main Switch Continuity
G00369152Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
