How To Replace The Transmitter Battery

WARNING: This page is about a different variant/trim than selected.

CAUTION: DO NOT allow water or dust to enter the inside of the transmitter when it is opened. Also, DO NOT touch the precision electronic device.

Remove the set screw to remove the battery from the transmitter. See Fig 1 .
Install a battery with its positive side face-down. Use a coin type battery CR2032.
Insert the claw first, and assemble the transmitter.
Verify that the keyless entry system operates.

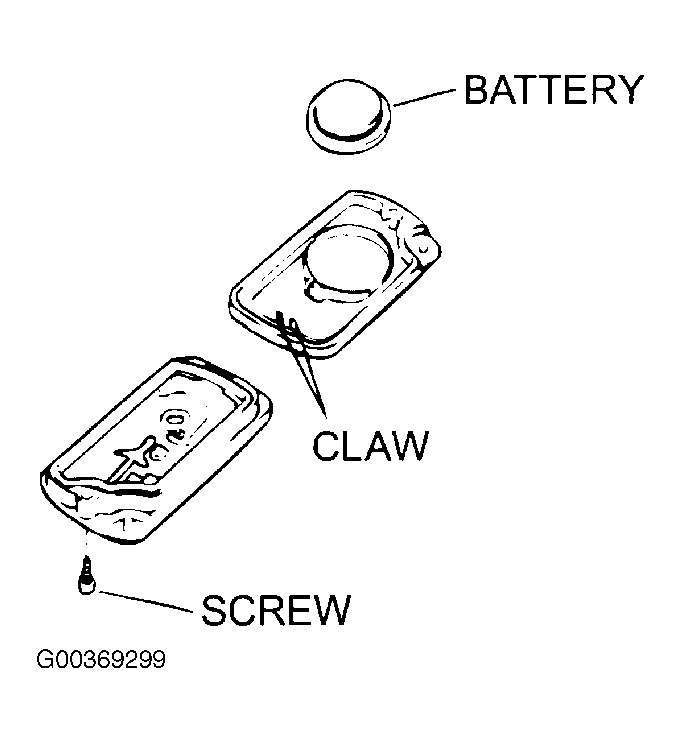

Fig 1: Replacing Transmitter Battery

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
