Junction Block Connector C-217 Connector End View (Evolution)

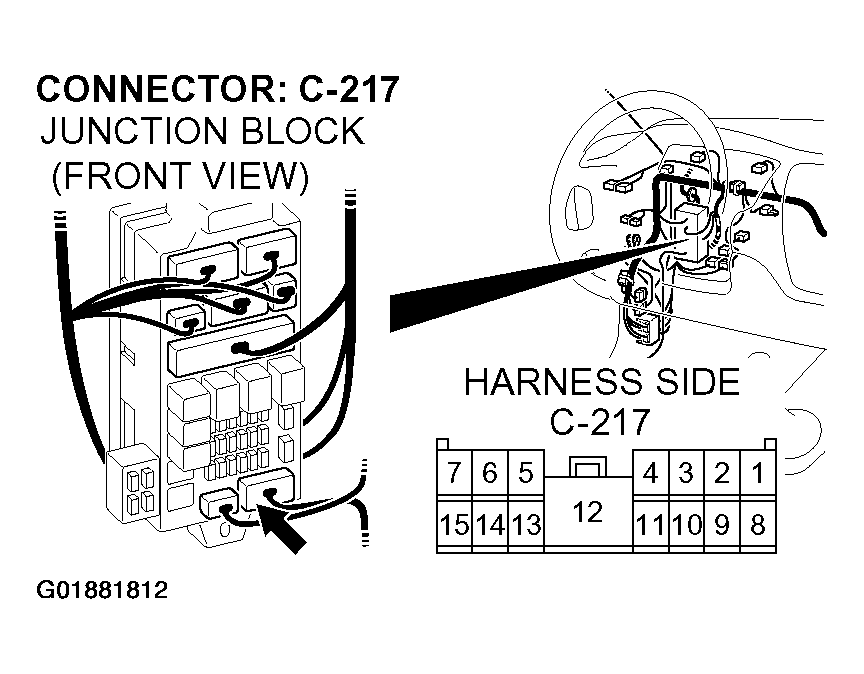

Fig 1: Junction Block Connector C-217 Connector End View (Evolution)
G01881812Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
