Outside/Inside Air Selection Damper Control Motor A/C-ECU Connector C-16 Connector End View (Evolution)

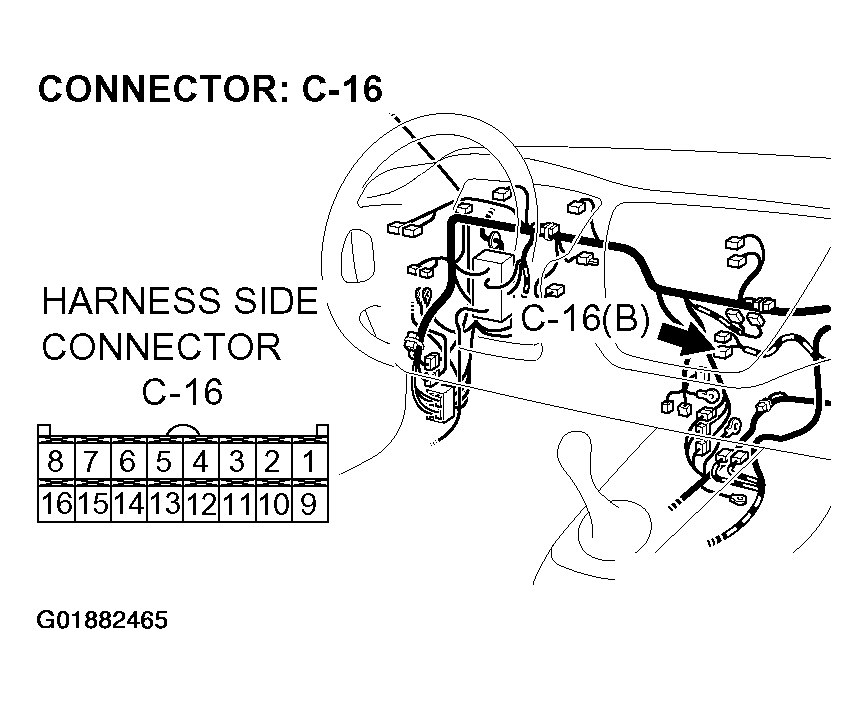

Fig 1: Outside/Inside Air Selection Damper Control Motor A/C-ECU Connector C-16 Connector End View (Evolution)
G01882465Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
