Removal And Installation: Notes

WARNING:
  • Before removing the steering wheel - driver's air bag module assembly, refer to DRIVER-SIDE AIR BAG MODULE & CLOCKSPRING .
  • When removing and installing the steering wheel, do not let it bump against the air bag module.

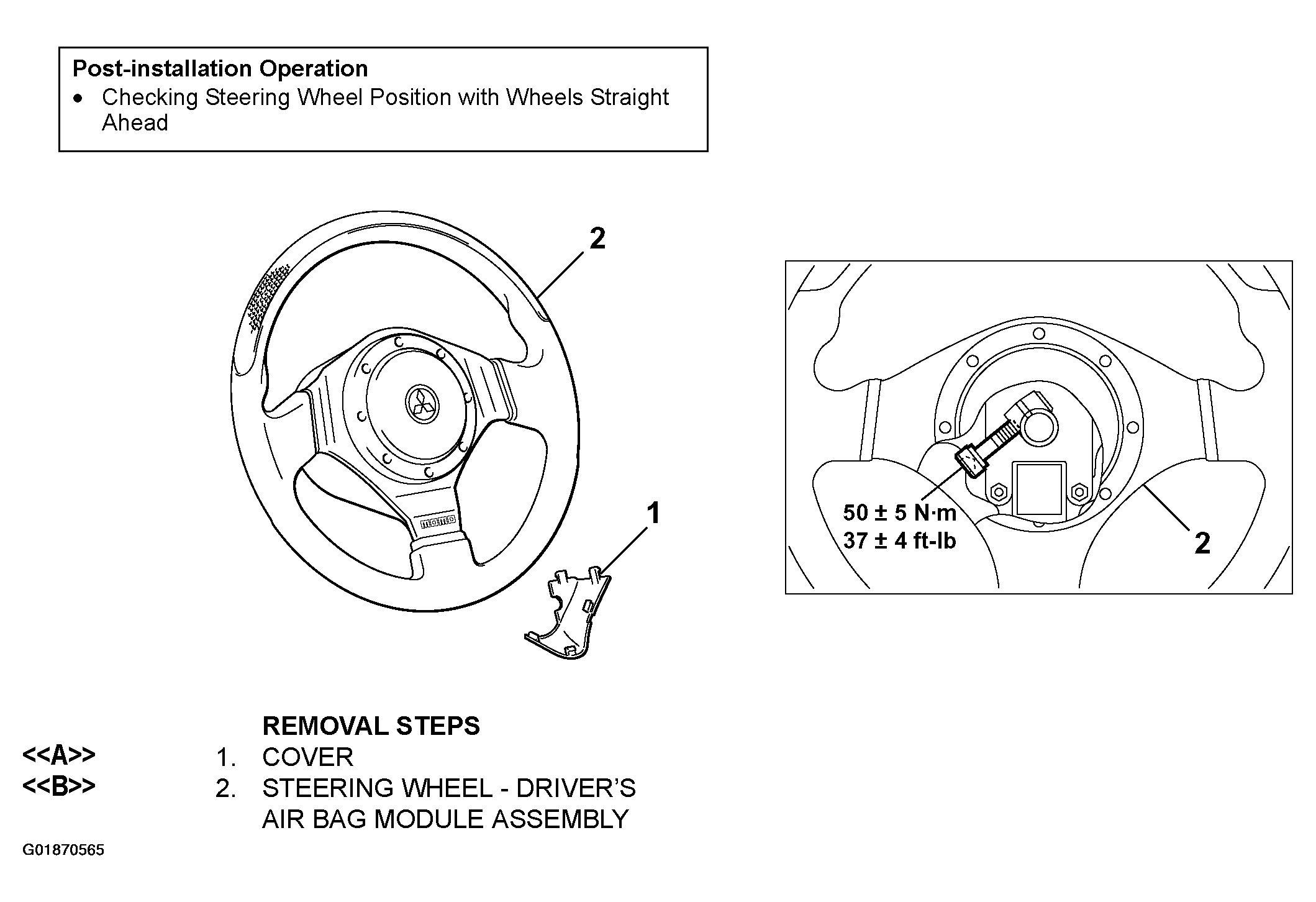

Fig 1: Steering Wheel And Torque Specification
G01870565Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
